Dinolift 160XT - Platform Control Centre (Ucb), Relays; Platform Control Centre (Ucb), Switches

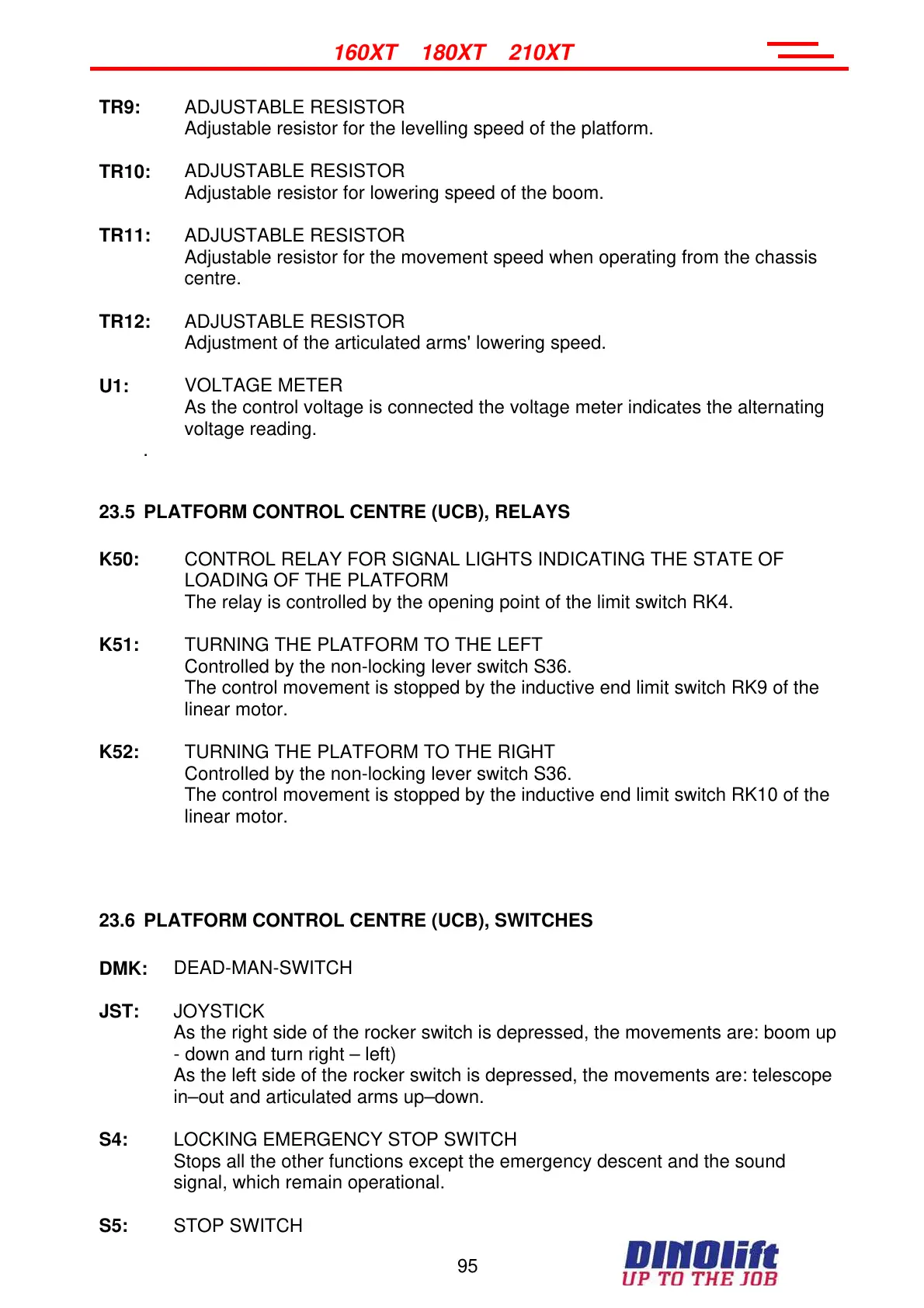

95
160XT 180XT 210XT
TR9:
ADJUSTABLE RESISTOR
Adjustable resistor for the levelling speed of the platform.
TR10:
ADJUSTABLE RESISTOR
Adjustable resistor for lowering speed of the boom.
TR11:
ADJUSTABLE RESISTOR
Adjustable resistor for the movement speed when operating from the chassis
centre.
TR12:
ADJUSTABLE RESISTOR
Adjustment of the articulated arms' lowering speed.
U1:
VOLTAGE METER
As the control voltage is connected the voltage meter indicates the alternating
voltage reading.
.
23.5 PLATFORM CONTROL CENTRE (UCB), RELAYS
K50:
CONTROL RELAY FOR SIGNAL LIGHTS INDICATING THE STATE OF
LOADING OF THE PLATFORM
The relay is controlled by the opening point of the limit switch RK4.
K51:
TURNING THE PLATFORM TO THE LEFT
Controlled by the non-locking lever switch S36.
The control movement is stopped by the inductive end limit switch RK9 of the
linear motor.
K52:
TURNING THE PLATFORM TO THE RIGHT
Controlled by the non-locking lever switch S36.
The control movement is stopped by the inductive end limit switch RK10 of the
linear motor.
23.6 PLATFORM CONTROL CENTRE (UCB), SWITCHES
DMK:
DEAD-MAN-SWITCH
JST:
JOYSTICK
As the right side of the rocker switch is depressed, the movements are: boom up
- down and turn right – left)
As the left side of the rocker switch is depressed, the movements are: telescope
in–out and articulated arms up–down.
S4:
LOCKING EMERGENCY STOP SWITCH
Stops all the other functions except the emergency descent and the sound
signal, which remain operational.
S5:
STOP SWITCH
