Dinolift 160XT - Testing the Load Limit Switches Rk4 and Rk5

66
160XT 180XT 210XT

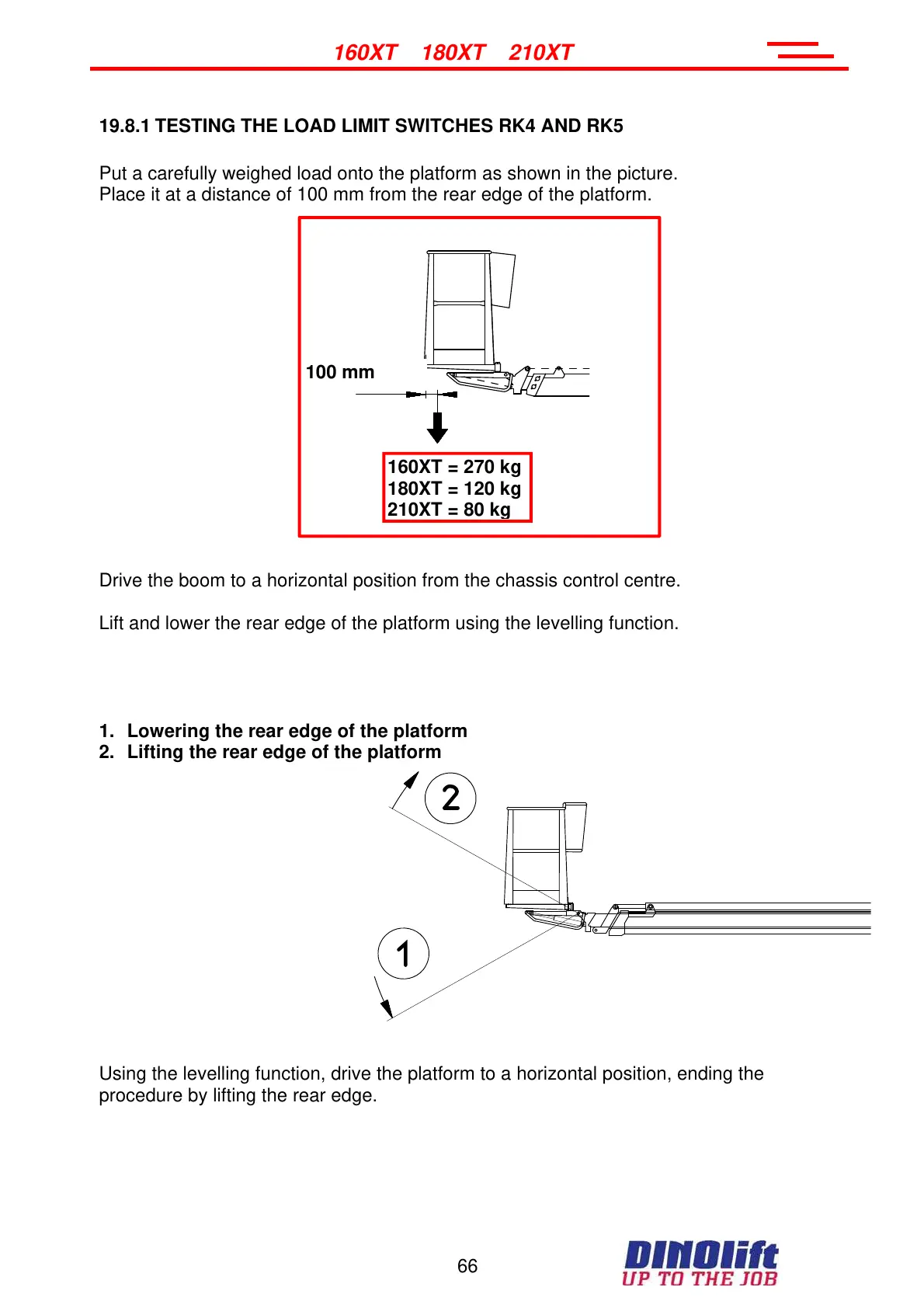

19.8.1 TESTING THE LOAD LIMIT SWITCHES RK4 AND RK5
Put a carefully weighed load onto the platform as shown in the picture.
Place it at a distance of 100 mm from the rear edge of the platform.
Drive the boom to a horizontal position from the chassis control centre.
Lift and lower the rear edge of the platform using the levelling function.
1. Lowering the rear edge of the platform
2. Lifting the rear edge of the platform
Using the levelling function, drive the platform to a horizontal position, ending the
procedure by lifting the rear edge.
160XT = 270 kg
180XT = 120 kg
210XT = 80 k
g
100 mm
