35
160XT 180XT 210XT

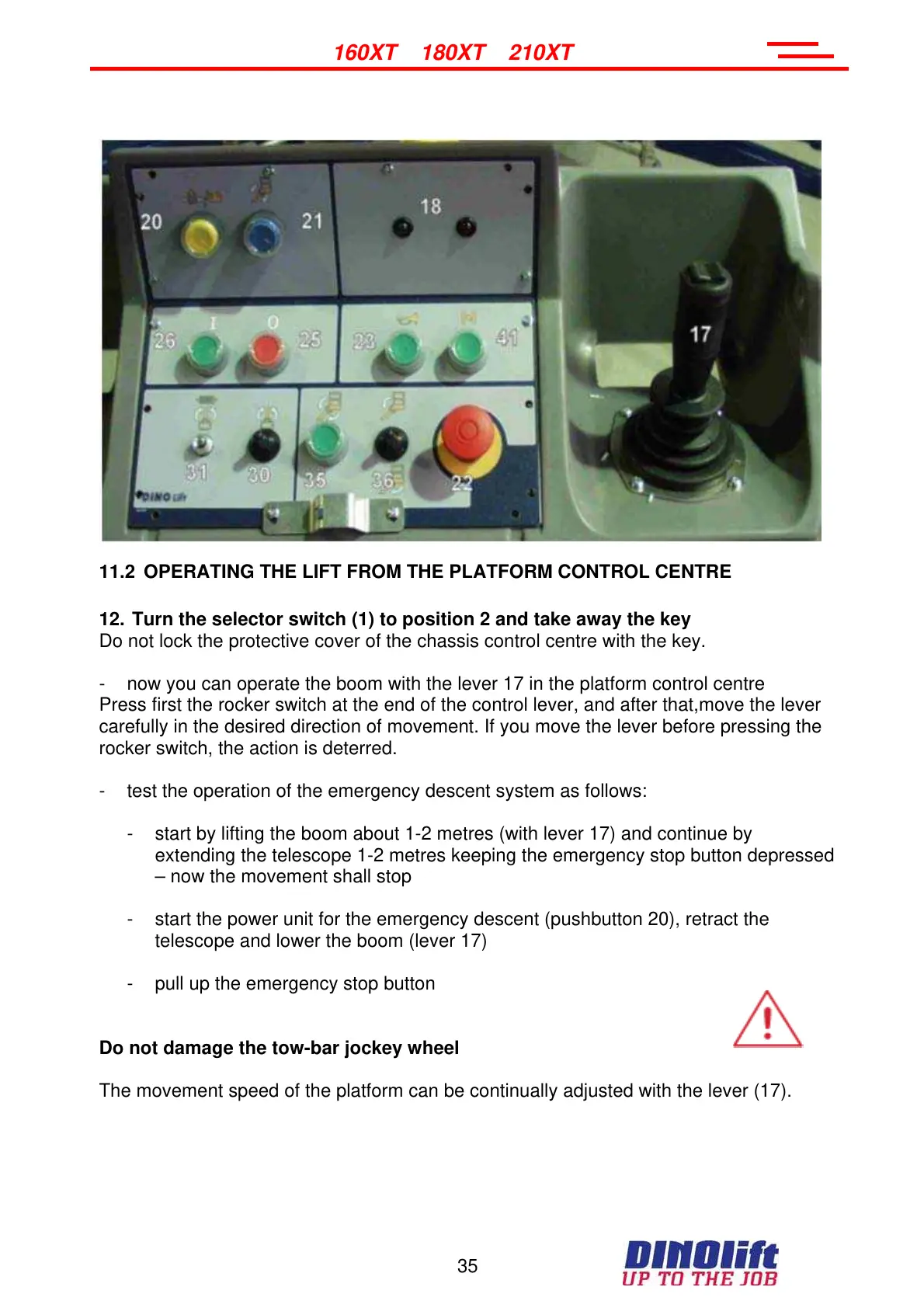

11.2 OPERATING THE LIFT FROM THE PLATFORM CONTROL CENTRE
12. Turn the selector switch (1) to position 2 and take away the key
Do not lock the protective cover of the chassis control centre with the key.
- now you can operate the boom with the lever 17 in the platform control centre
Press first the rocker switch at the end of the control lever, and after that,move the lever
carefully in the desired direction of movement. If you move the lever before pressing the
rocker switch, the action is deterred.
- test the operation of the emergency descent system as follows:
- start by lifting the boom about 1-2 metres (with lever 17) and continue by
extending the telescope 1-2 metres keeping the emergency stop button depressed
– now the movement shall stop
- start the power unit for the emergency descent (pushbutton 20), retract the
telescope and lower the boom (lever 17)
- pull up the emergency stop button
Do not damage the tow-bar jockey wheel
The movement speed of the platform can be continually adjusted with the lever (17).
