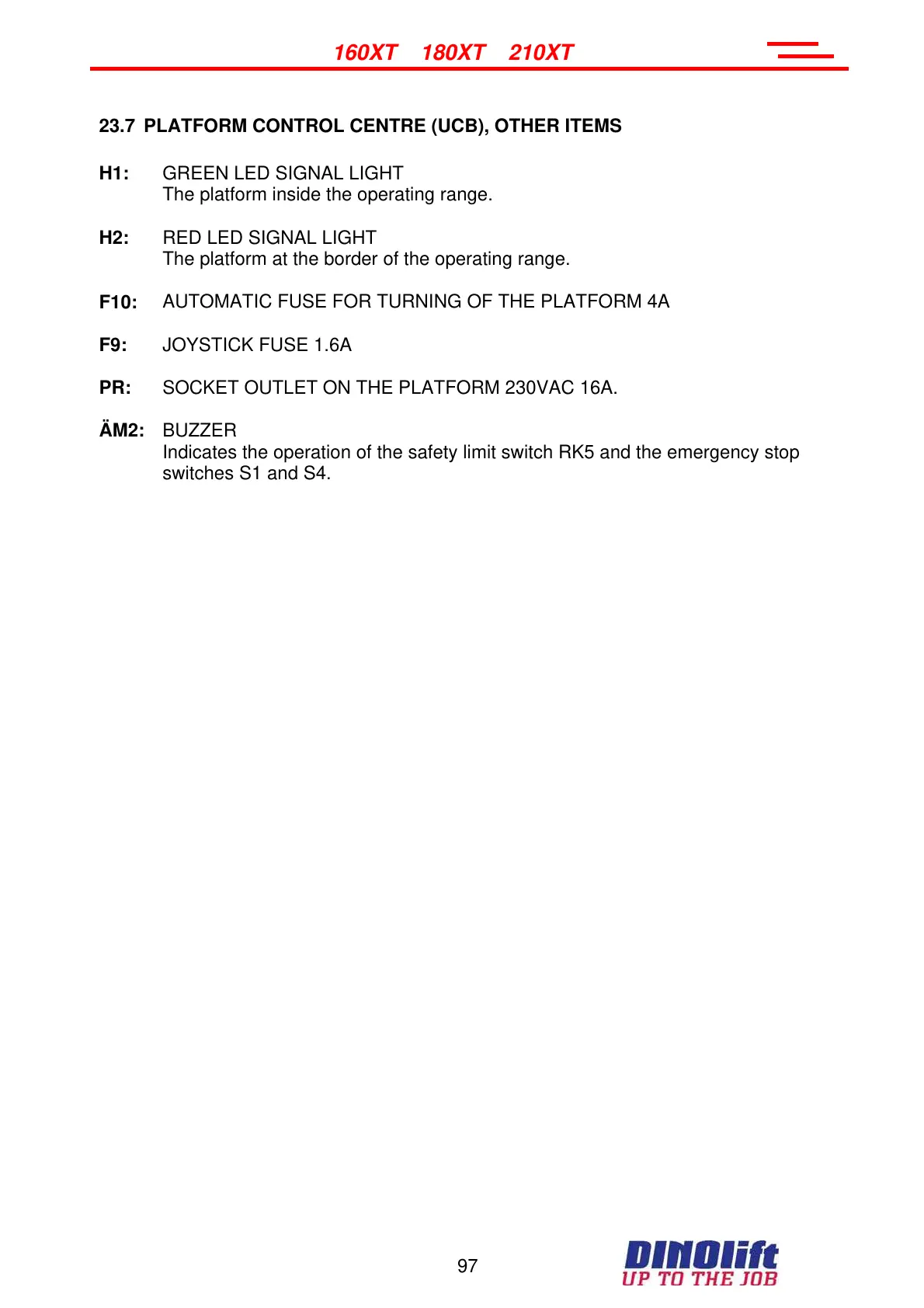

23.7 PLATFORM CONTROL CENTRE (UCB), OTHER ITEMS
H1:
GREEN LED SIGNAL LIGHT
The platform inside the operating range.
H2:
RED LED SIGNAL LIGHT
The platform at the border of the operating range.
F10:
AUTOMATIC FUSE FOR TURNING OF THE PLATFORM 4A
F9:
JOYSTICK FUSE 1.6A
PR:
SOCKET OUTLET ON THE PLATFORM 230VAC 16A.
ÄM2:
BUZZER
Indicates the operation of the safety limit switch RK5 and the emergency stop
switches S1 and S4.
