160XT 180XT 210XT

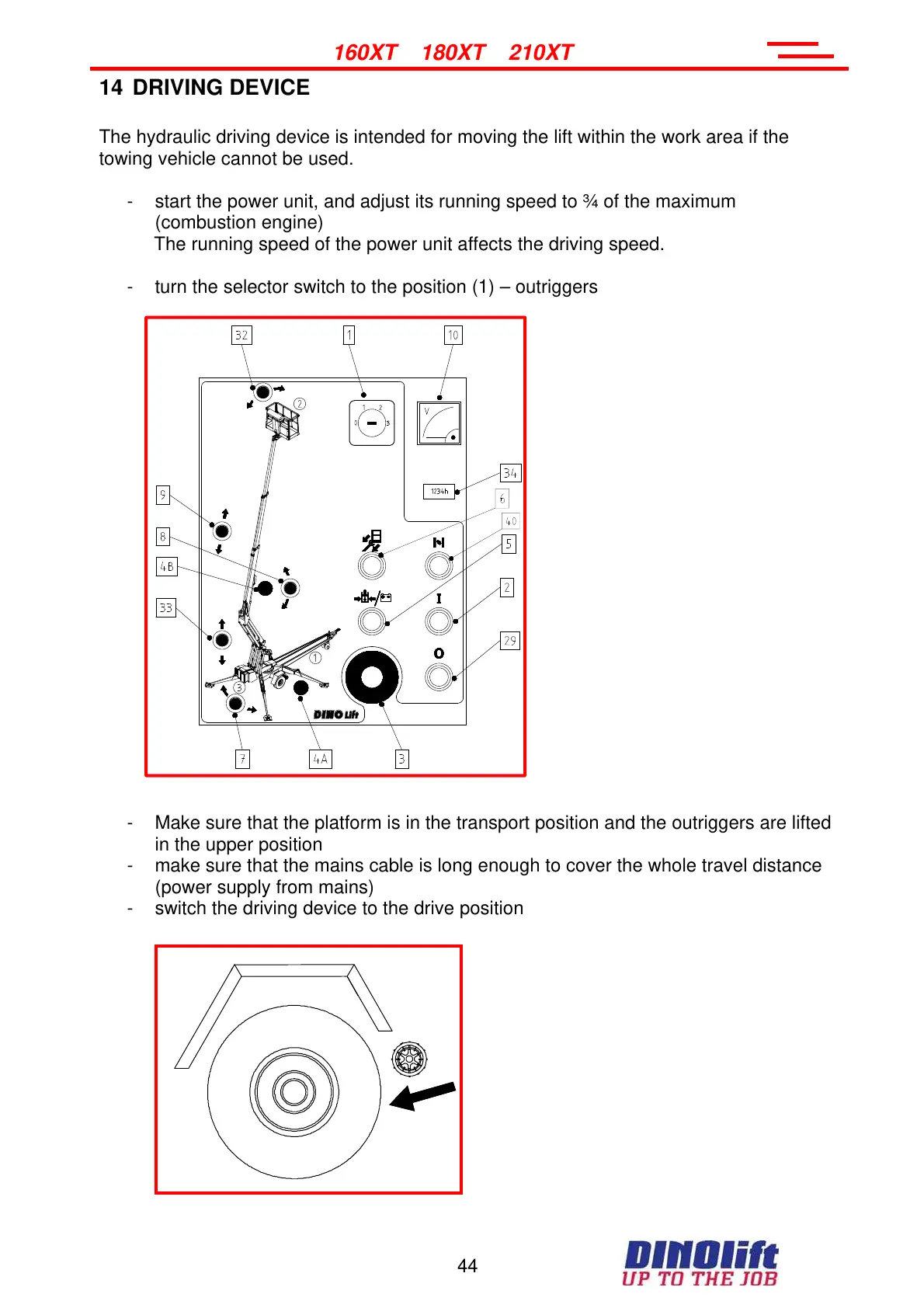

14 DRIVING DEVICE
The hydraulic driving device is intended for moving the lift within the work area if the
towing vehicle cannot be used.
- start the power unit, and adjust its running speed to ¾ of the maximum
(combustion engine)
The running speed of the power unit affects the driving speed.
- turn the selector switch to the position (1) – outriggers
- Make sure that the platform is in the transport position and the outriggers are lifted
in the upper position
- make sure that the mains cable is long enough to cover the whole travel distance
(power supply from mains)
- switch the driving device to the drive position
