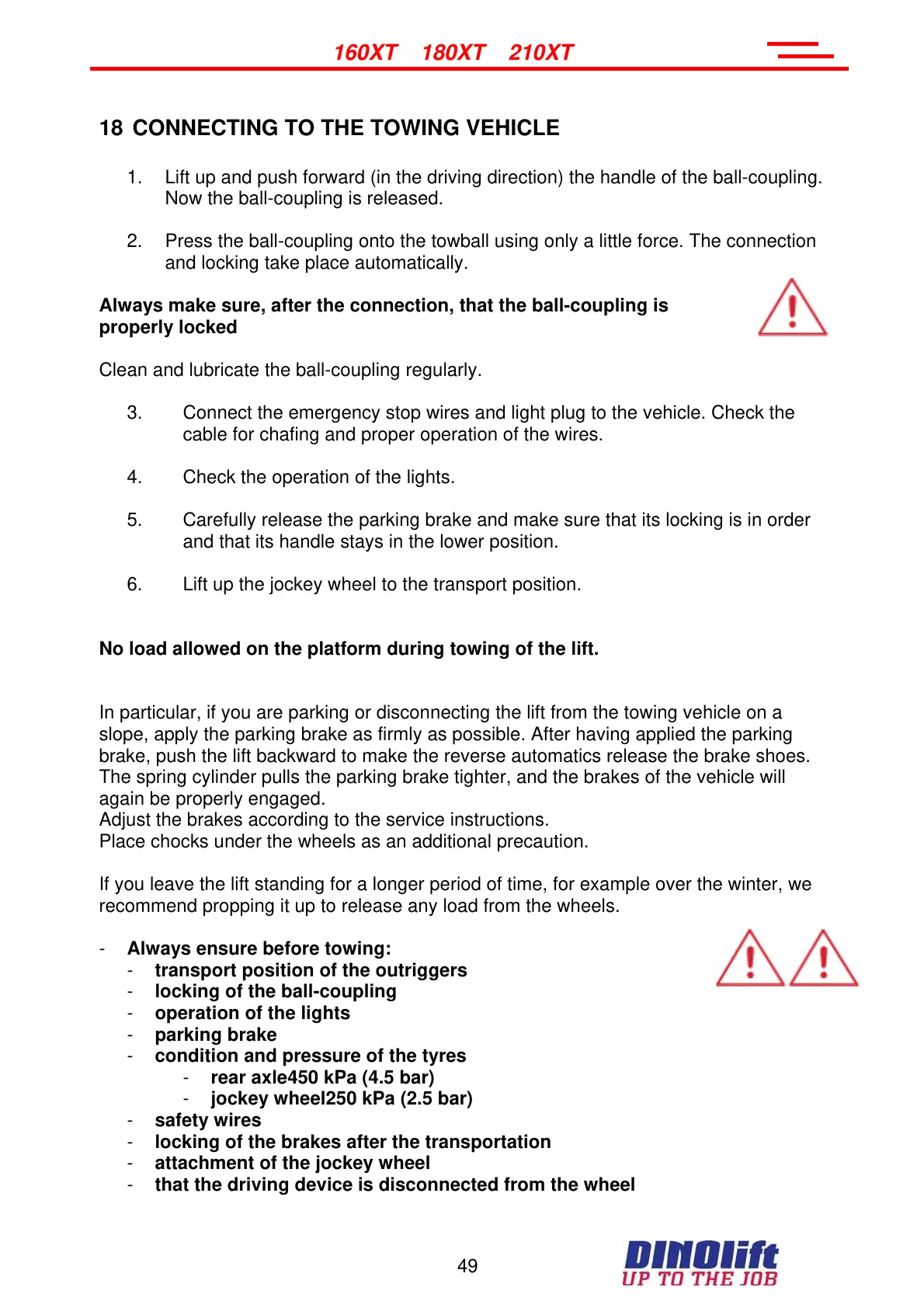

18 CONNECTING TO THE TOWING VEHICLE
1. Lift up and push forward (in the driving direction) the handle of the ball-coupling.
Now the ball-coupling is released.
2. Press the ball-coupling onto the towball using only a little force. The connection
and locking take place automatically.
Always make sure, after the connection, that the ball-coupling is
properly locked
Clean and lubricate the ball-coupling regularly.
3. Connect the emergency stop wires and light plug to the vehicle. Check the
cable for chafing and proper operation of the wires.
4. Check the operation of the lights.
5. Carefully release the parking brake and make sure that its locking is in order
and that its handle stays in the lower position.
6. Lift up the jockey wheel to the transport position.
No load allowed on the platform during towing of the lift.
In particular, if you are parking or disconnecting the lift from the towing vehicle on a
slope, apply the parking brake as firmly as possible. After having applied the parking
brake, push the lift backward to make the reverse automatics release the brake shoes.
The spring cylinder pulls the parking brake tighter, and the brakes of the vehicle will
again be properly engaged.
Adjust the brakes according to the service instructions.
Place chocks under the wheels as an additional precaution.
If you leave the lift standing for a longer period of time, for example over the winter, we
recommend propping it up to release any load from the wheels.
- Always ensure before towing:
- transport position of the outriggers
- locking of the ball-coupling
- operation of the lights
- parking brake
- condition and pressure of the tyres
- rear axle450 kPa (4.5 bar)
- jockey wheel250 kPa (2.5 bar)
- safety wires
- locking of the brakes after the transportation
- attachment of the jockey wheel
- that the driving device is disconnected from the wheel
