48
160XT 180XT 210XT

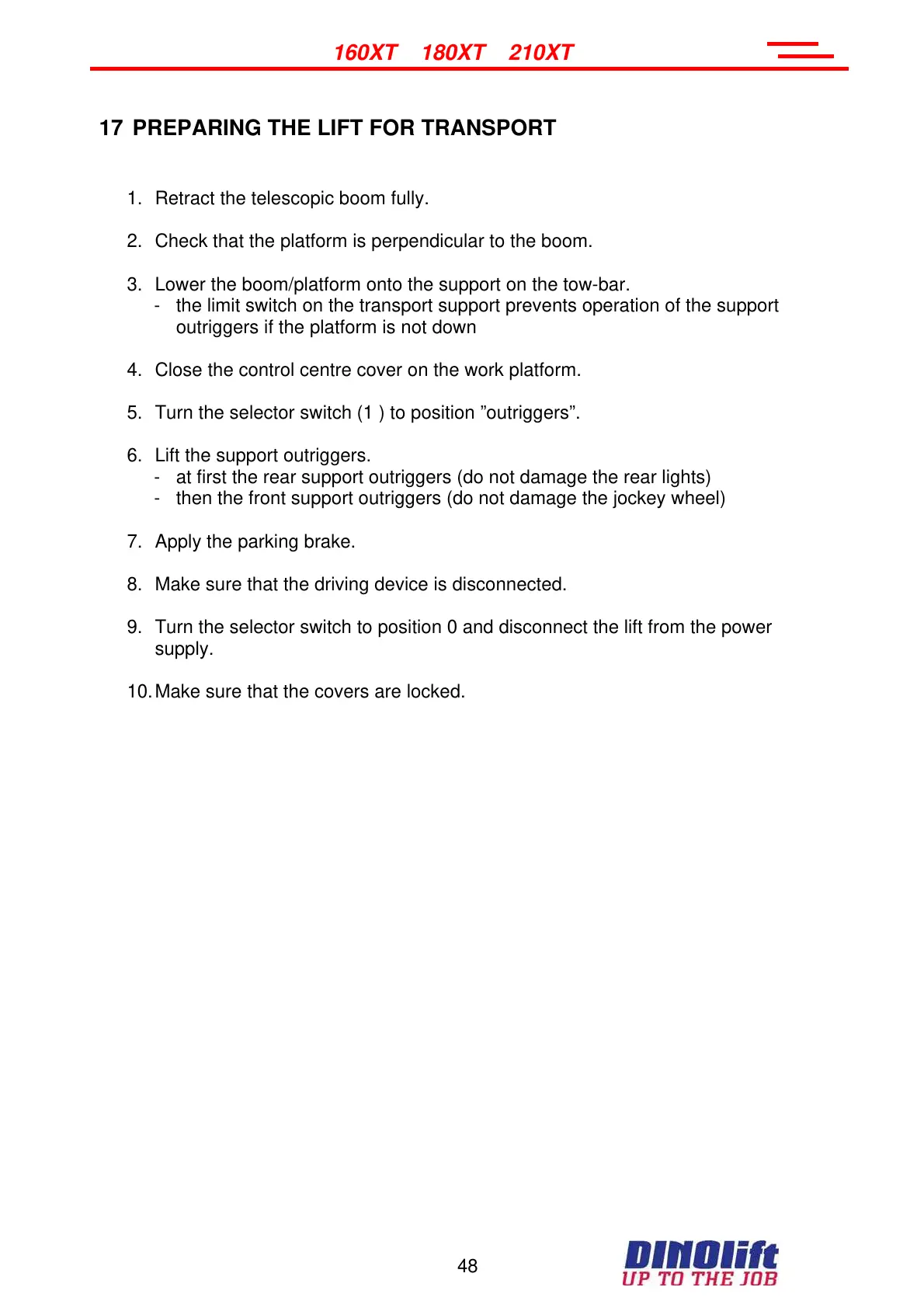

17 PREPARING THE LIFT FOR TRANSPORT
1. Retract the telescopic boom fully.
2. Check that the platform is perpendicular to the boom.
3. Lower the boom/platform onto the support on the tow-bar.
- the limit switch on the transport support prevents operation of the support
outriggers if the platform is not down
4. Close the control centre cover on the work platform.
5. Turn the selector switch (1 ) to position ”outriggers”.
6. Lift the support outriggers.
- at first the rear support outriggers (do not damage the rear lights)
- then the front support outriggers (do not damage the jockey wheel)
7. Apply the parking brake.
8. Make sure that the driving device is disconnected.
9. Turn the selector switch to position 0 and disconnect the lift from the power
supply.
10. Make sure that the covers are locked.
