160XT 180XT 210XT

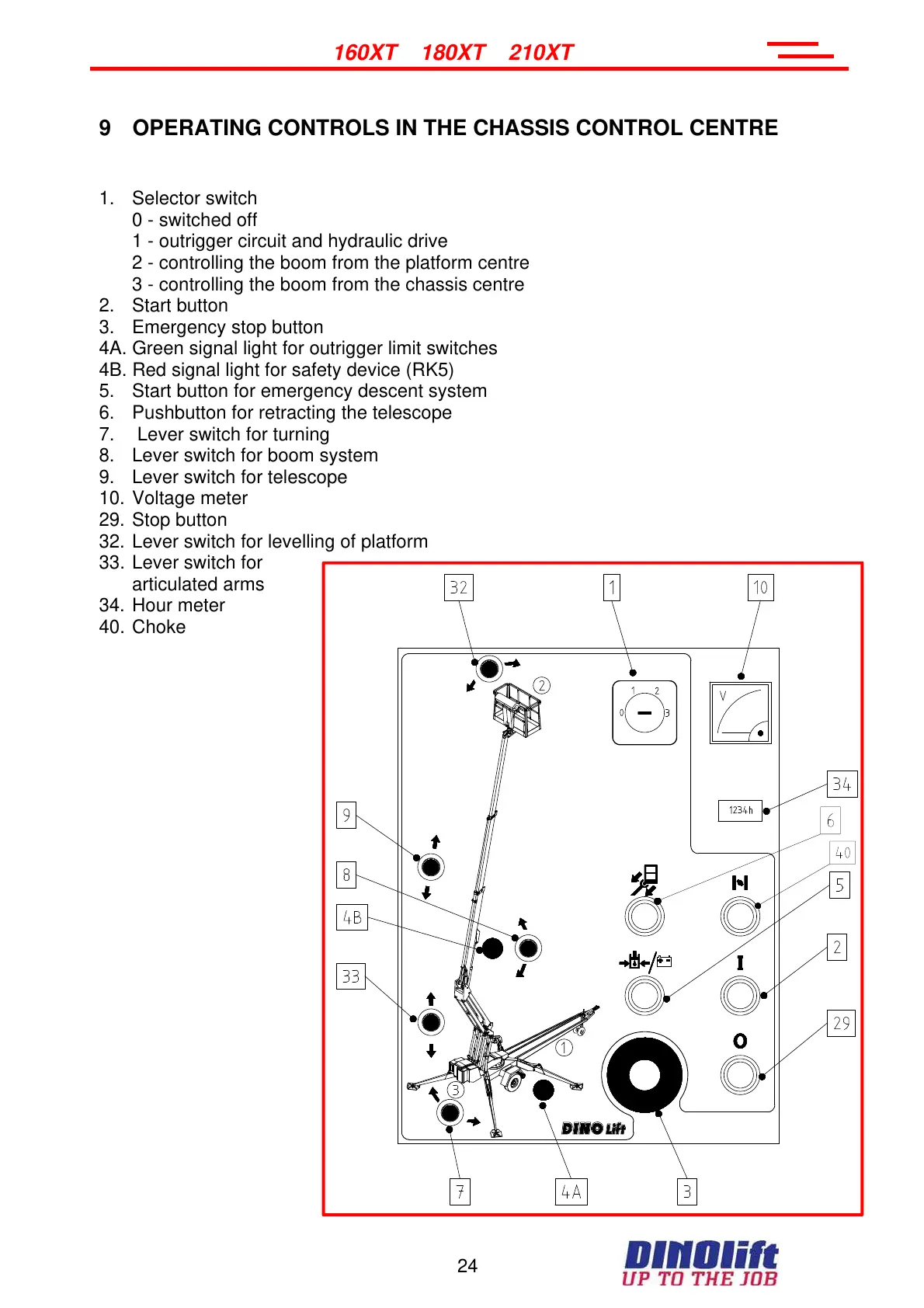

9 OPERATING CONTROLS IN THE CHASSIS CONTROL CENTRE
1. Selector switch
0 - switched off
1 - outrigger circuit and hydraulic drive
2 - controlling the boom from the platform centre
3 - controlling the boom from the chassis centre
2. Start button
3. Emergency stop button
4A. Green signal light for outrigger limit switches
4B. Red signal light for safety device (RK5)
5. Start button for emergency descent system
6. Pushbutton for retracting the telescope
7. Lever switch for turning
8. Lever switch for boom system
9. Lever switch for telescope
10. Voltage meter
29. Stop button
32. Lever switch for levelling of platform
33. Lever switch for
articulated arms
34. Hour meter
40. Choke
