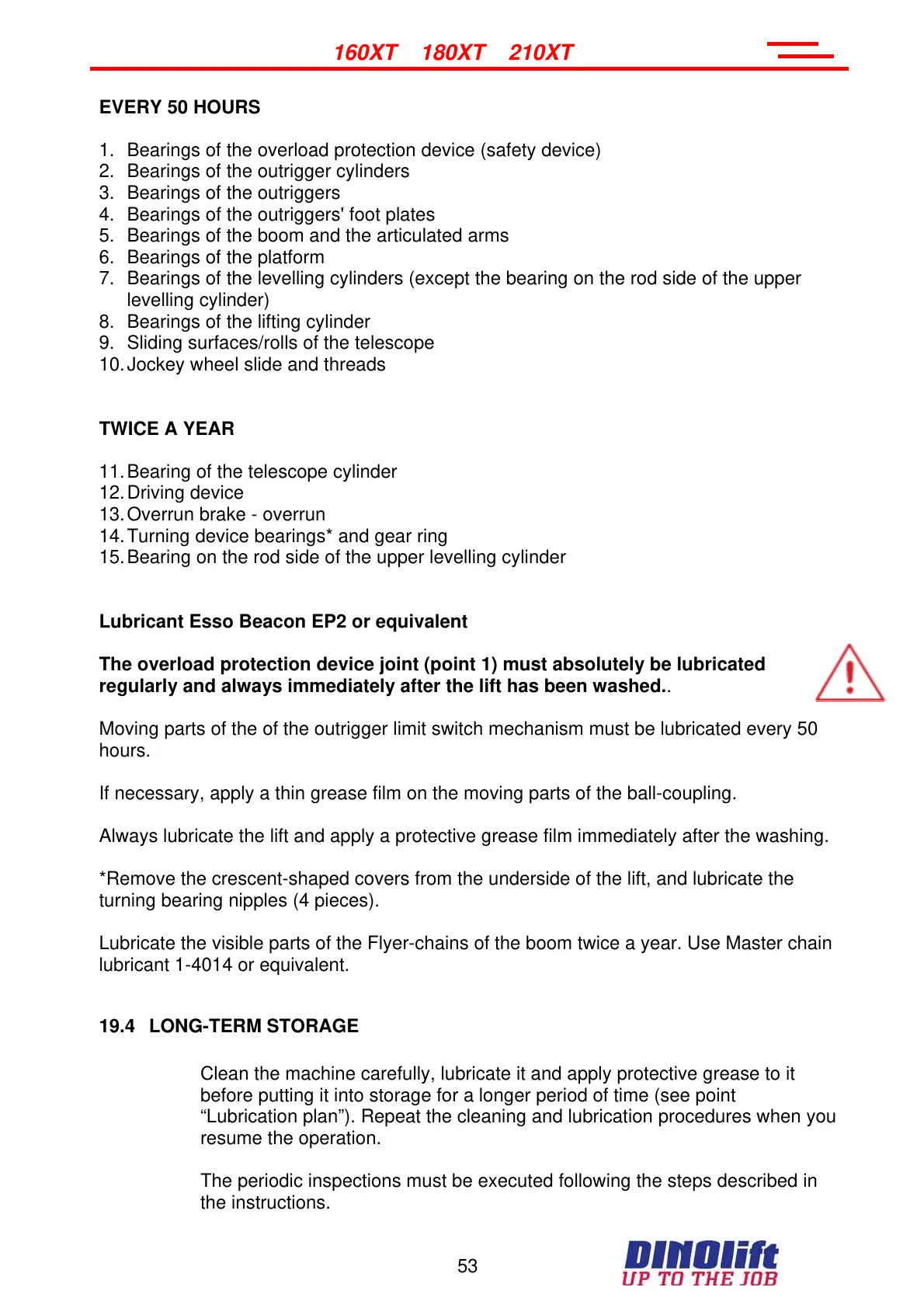

EVERY 50 HOURS
1. Bearings of the overload protection device (safety device)
2. Bearings of the outrigger cylinders
3. Bearings of the outriggers
4. Bearings of the outriggers' foot plates
5. Bearings of the boom and the articulated arms
6. Bearings of the platform
7. Bearings of the levelling cylinders (except the bearing on the rod side of the upper
levelling cylinder)
8. Bearings of the lifting cylinder
9. Sliding surfaces/rolls of the telescope
10. Jockey wheel slide and threads
TWICE A YEAR
11. Bearing of the telescope cylinder
12. Driving device
13. Overrun brake - overrun
14. Turning device bearings* and gear ring
15. Bearing on the rod side of the upper levelling cylinder
Lubricant Esso Beacon EP2 or equivalent
The overload protection device joint (point 1) must absolutely be lubricated
regularly and always immediately after the lift has been washed..
Moving parts of the of the outrigger limit switch mechanism must be lubricated every 50
hours.
If necessary, apply a thin grease film on the moving parts of the ball-coupling.
Always lubricate the lift and apply a protective grease film immediately after the washing.
*Remove the crescent-shaped covers from the underside of the lift, and lubricate the
turning bearing nipples (4 pieces).
Lubricate the visible parts of the Flyer-chains of the boom twice a year. Use Master chain
lubricant 1-4014 or equivalent.
19.4 LONG-TERM STORAGE
Clean the machine carefully, lubricate it and apply protective grease to it
before putting it into storage for a longer period of time (see point
“Lubrication plan”). Repeat the cleaning and lubrication procedures when you
resume the operation.
The periodic inspections must be executed following the steps described in
the instructions.
