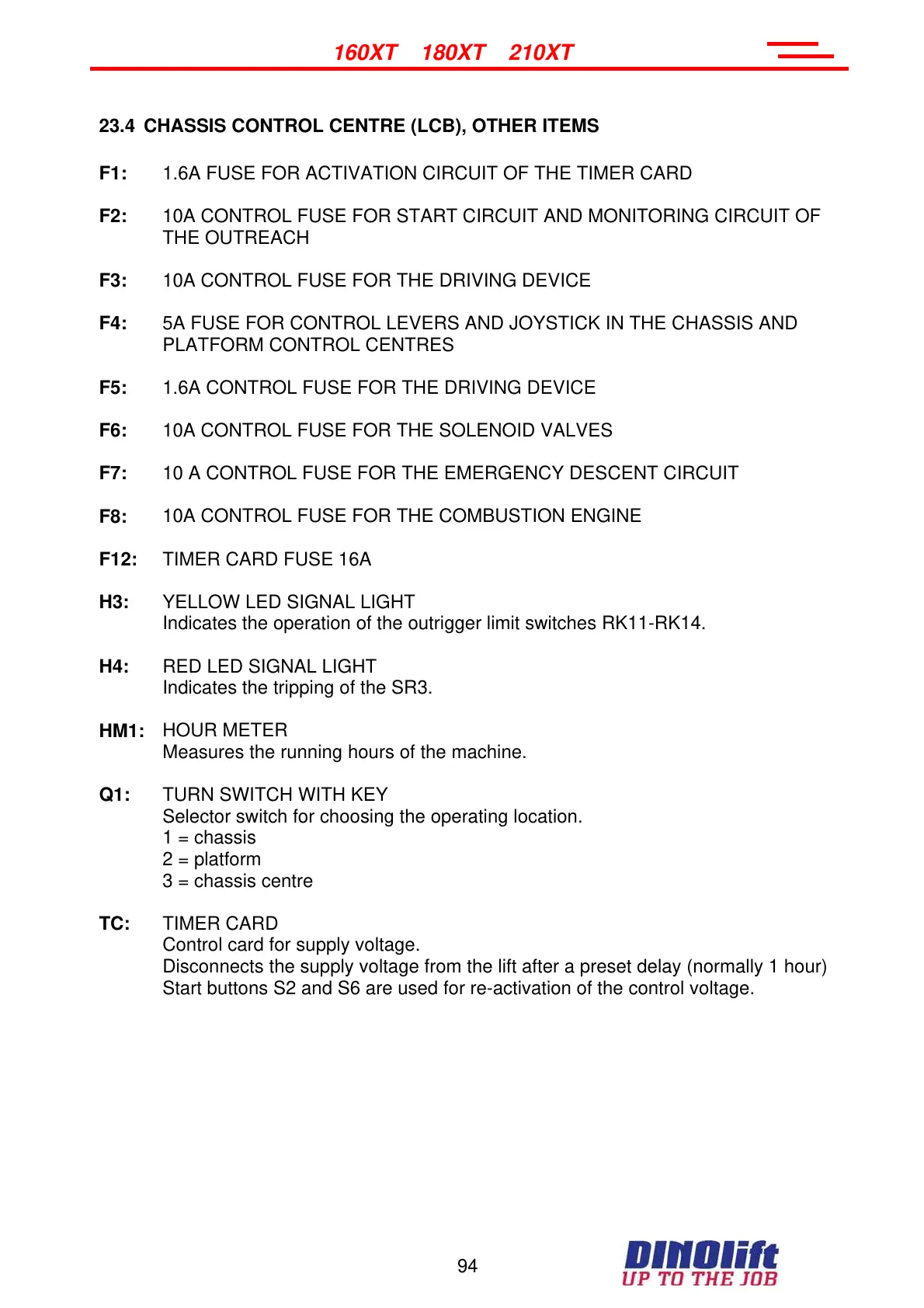

23.4 CHASSIS CONTROL CENTRE (LCB), OTHER ITEMS
F1:
1.6A FUSE FOR ACTIVATION CIRCUIT OF THE TIMER CARD
F2:
10A CONTROL FUSE FOR START CIRCUIT AND MONITORING CIRCUIT OF
THE OUTREACH
F3:
10A CONTROL FUSE FOR THE DRIVING DEVICE
F4:
5A FUSE FOR CONTROL LEVERS AND JOYSTICK IN THE CHASSIS AND
PLATFORM CONTROL CENTRES
F5:
1.6A CONTROL FUSE FOR THE DRIVING DEVICE
F6:
10A CONTROL FUSE FOR THE SOLENOID VALVES
F7:
10 A CONTROL FUSE FOR THE EMERGENCY DESCENT CIRCUIT
F8:
10A CONTROL FUSE FOR THE COMBUSTION ENGINE
F12:
TIMER CARD FUSE 16A
H3:
YELLOW LED SIGNAL LIGHT
Indicates the operation of the outrigger limit switches RK11-RK14.
H4:
RED LED SIGNAL LIGHT
Indicates the tripping of the SR3.
HM1:
HOUR METER
Measures the running hours of the machine.
Q1:
TURN SWITCH WITH KEY
Selector switch for choosing the operating location.
1 = chassis
2 = platform
3 = chassis centre
TC:
TIMER CARD
Control card for supply voltage.
Disconnects the supply voltage from the lift after a preset delay (normally 1 hour)
Start buttons S2 and S6 are used for re-activation of the control voltage.
