160XT 180XT 210XT

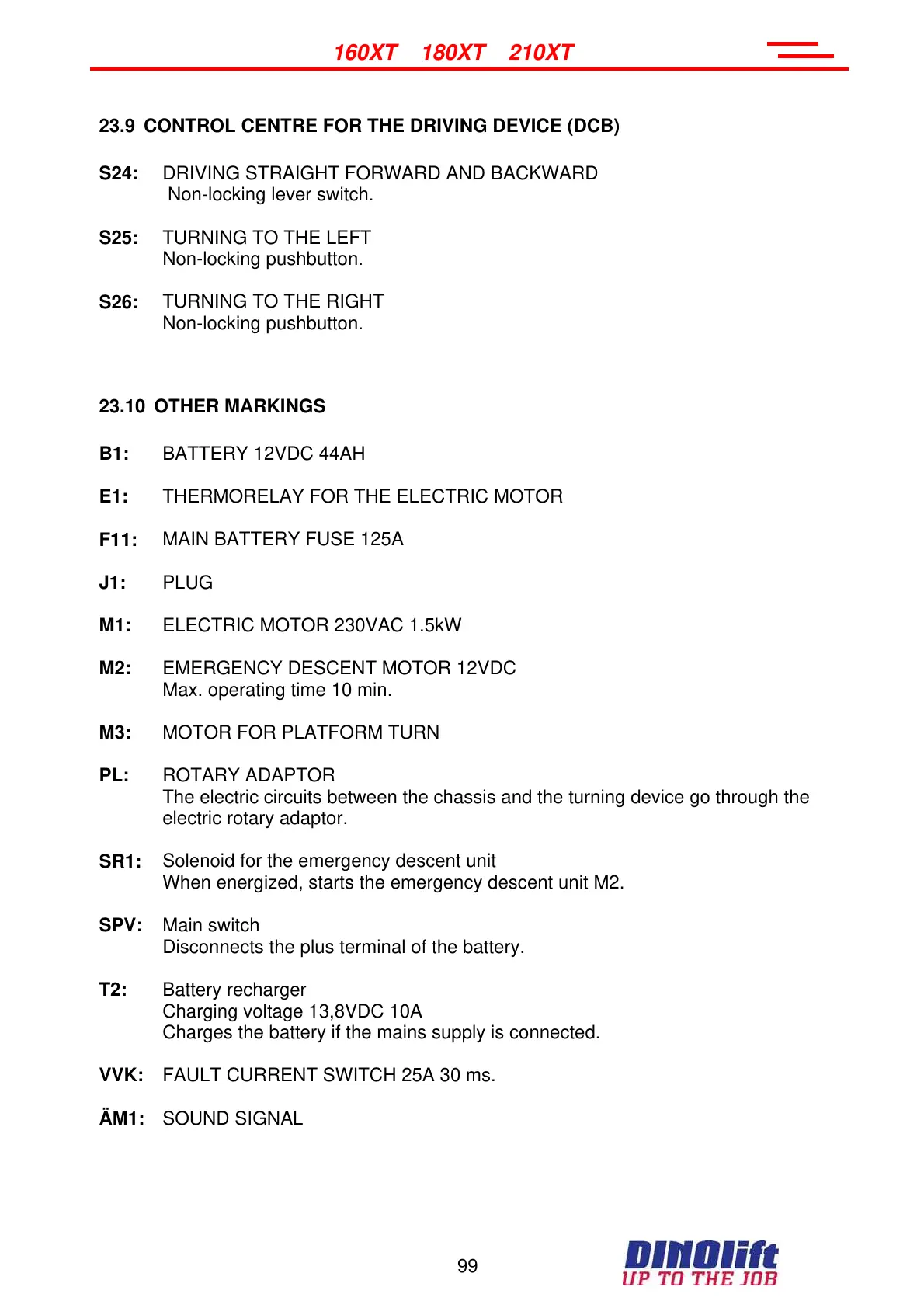

23.9 CONTROL CENTRE FOR THE DRIVING DEVICE (DCB)
S24:
DRIVING STRAIGHT FORWARD AND BACKWARD
Non-locking lever switch.
S25:
TURNING TO THE LEFT
Non-locking pushbutton.
S26:
TURNING TO THE RIGHT
Non-locking pushbutton.
23.10 OTHER MARKINGS
B1:
BATTERY 12VDC 44AH
E1:
THERMORELAY FOR THE ELECTRIC MOTOR
F11:
MAIN BATTERY FUSE 125A
J1:
PLUG
M1:
ELECTRIC MOTOR 230VAC 1.5kW
M2:
EMERGENCY DESCENT MOTOR 12VDC
Max. operating time 10 min.
M3:
MOTOR FOR PLATFORM TURN
PL:
ROTARY ADAPTOR
The electric circuits between the chassis and the turning device go through the
electric rotary adaptor.
SR1:
Solenoid for the emergency descent unit
When energized, starts the emergency descent unit M2.
SPV:
Main switch
Disconnects the plus terminal of the battery.
T2:
Battery recharger
Charging voltage 13,8VDC 10A
Charges the battery if the mains supply is connected.
VVK:
FAULT CURRENT SWITCH 25A 30 ms.
ÄM1:
SOUND SIGNAL
