30
160XT 180XT 210XT

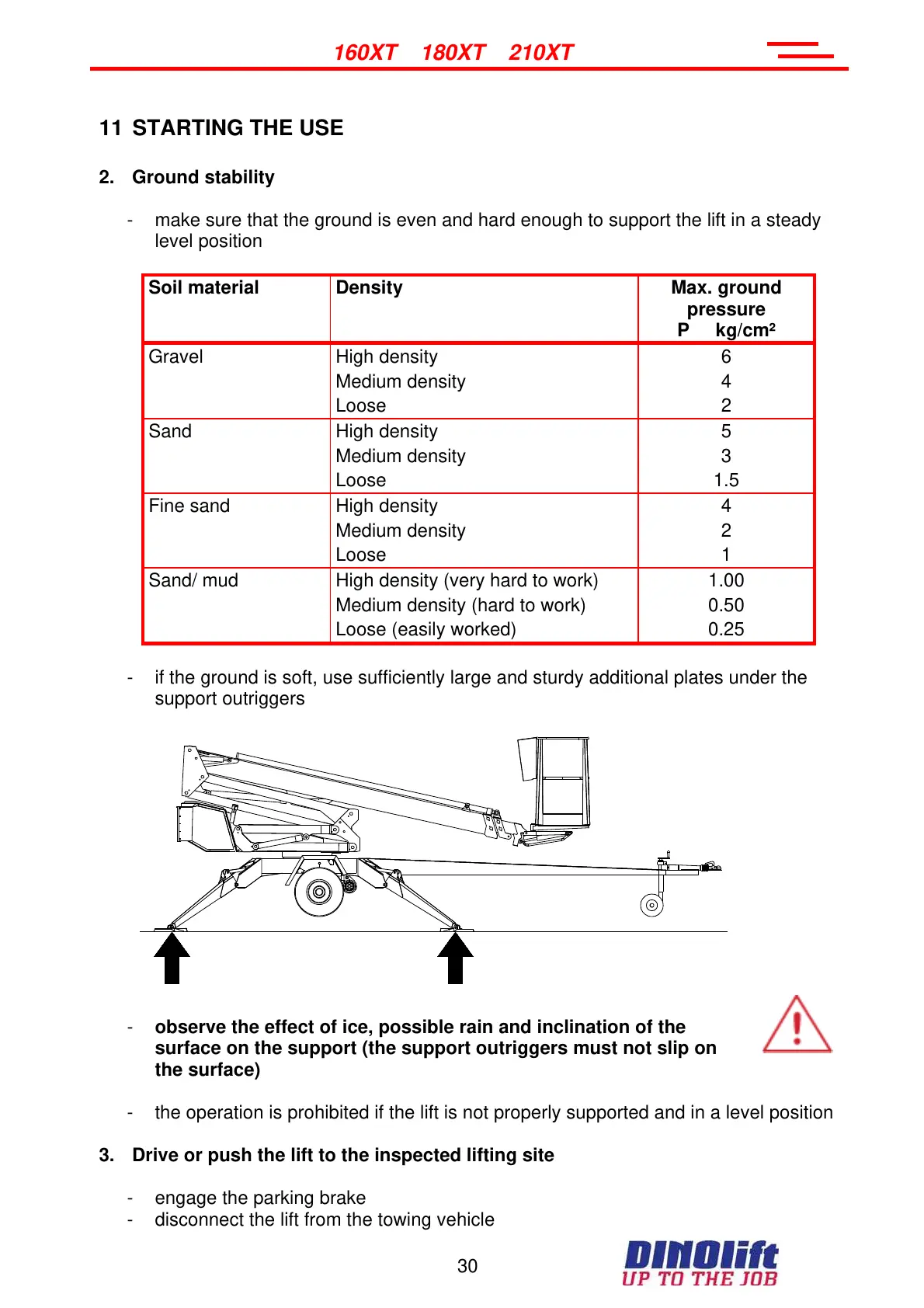

11 STARTING THE USE
2. Ground stability
- make sure that the ground is even and hard enough to support the lift in a steady
level position
Soil material Density Max. ground
pressure
P kg/cm²
Gravel High density 6
Medium density 4
Loose 2
Sand High density 5
Medium density 3
Loose 1.5
Fine sand High density 4
Medium density 2
Loose 1
Sand/ mud High density (very hard to work) 1.00
Medium density (hard to work) 0.50
Loose (easily worked) 0.25
- if the ground is soft, use sufficiently large and sturdy additional plates under the
support outriggers
- observe the effect of ice, possible rain and inclination of the
surface on the support (the support outriggers must not slip on
the surface)
- the operation is prohibited if the lift is not properly supported and in a level position
3. Drive or push the lift to the inspected lifting site
- engage the parking brake
- disconnect the lift from the towing vehicle
