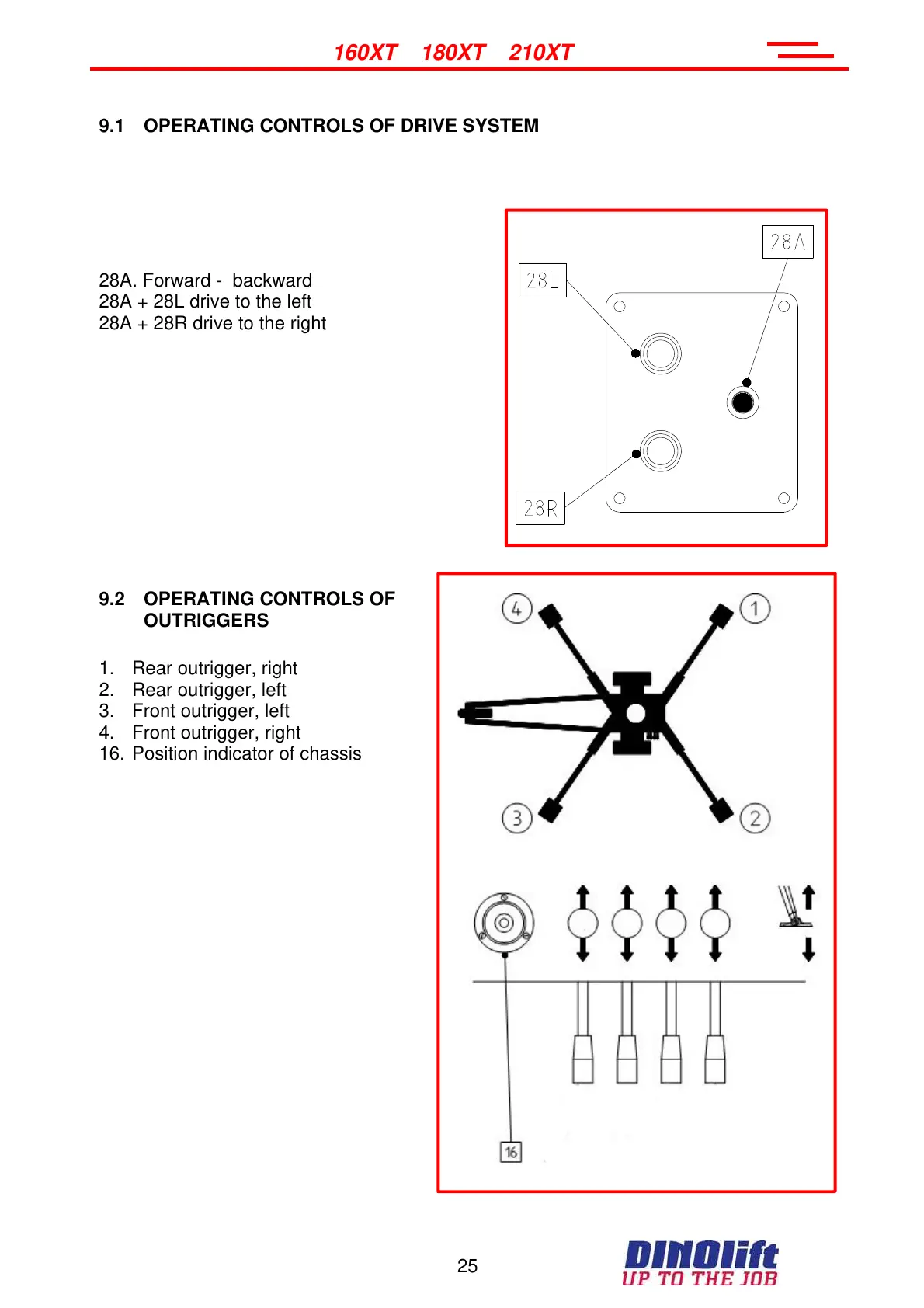

9.1 OPERATING CONTROLS OF DRIVE SYSTEM
28A. Forward - backward
28A + 28L drive to the left
28A + 28R drive to the right
9.2 OPERATING CONTROLS OF
OUTRIGGERS
1. Rear outrigger, right
2. Rear outrigger, left
3. Front outrigger, left
4. Front outrigger, right
16. Position indicator of chassis
