33
160XT 180XT 210XT

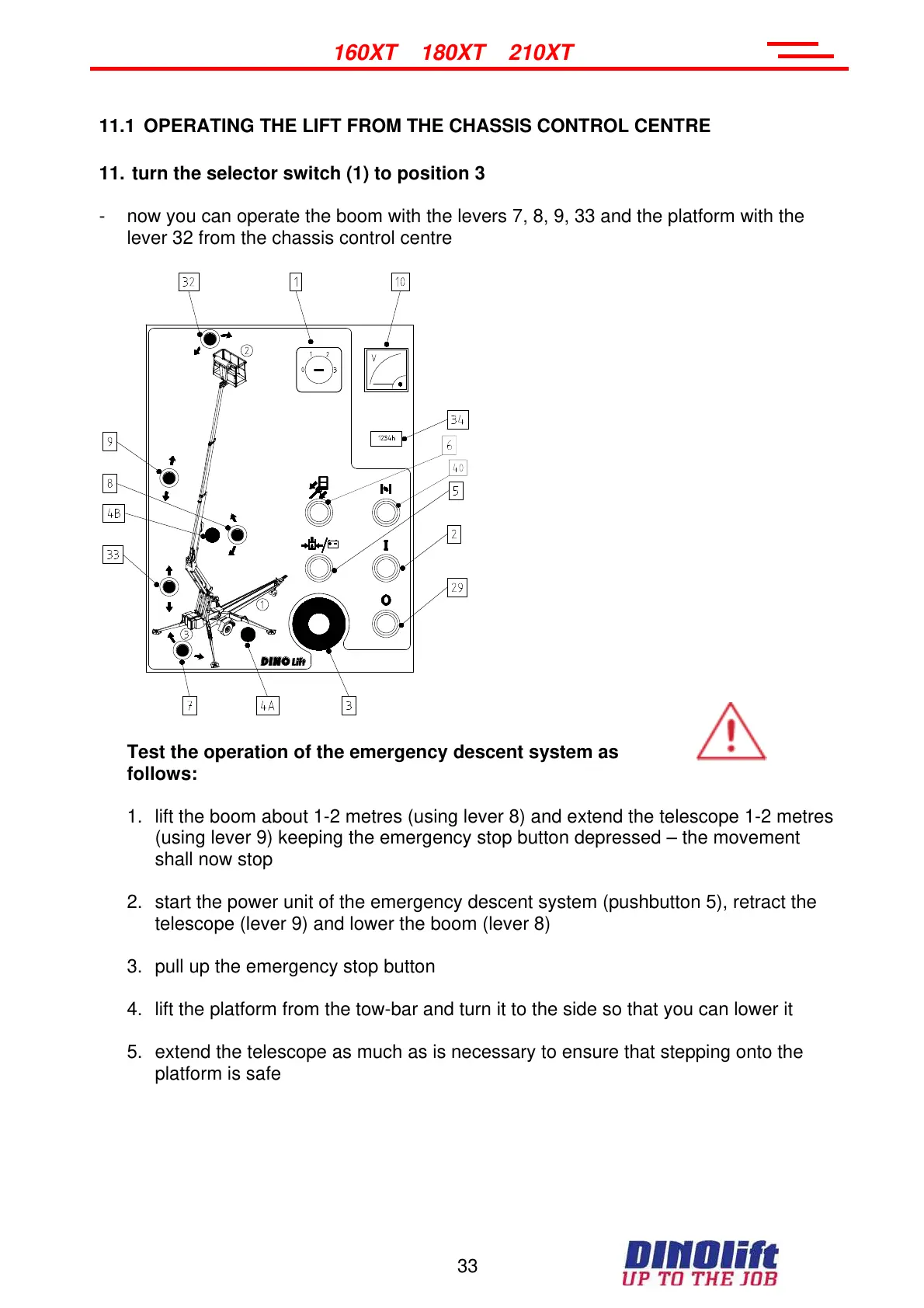

11.1 OPERATING THE LIFT FROM THE CHASSIS CONTROL CENTRE
11. turn the selector switch (1) to position 3
- now you can operate the boom with the levers 7, 8, 9, 33 and the platform with the
lever 32 from the chassis control centre
Test the operation of the emergency descent system as
follows:
1. lift the boom about 1-2 metres (using lever 8) and extend the telescope 1-2 metres
(using lever 9) keeping the emergency stop button depressed – the movement
shall now stop
2. start the power unit of the emergency descent system (pushbutton 5), retract the
telescope (lever 9) and lower the boom (lever 8)
3. pull up the emergency stop button
4. lift the platform from the tow-bar and turn it to the side so that you can lower it
5. extend the telescope as much as is necessary to ensure that stepping onto the
platform is safe
