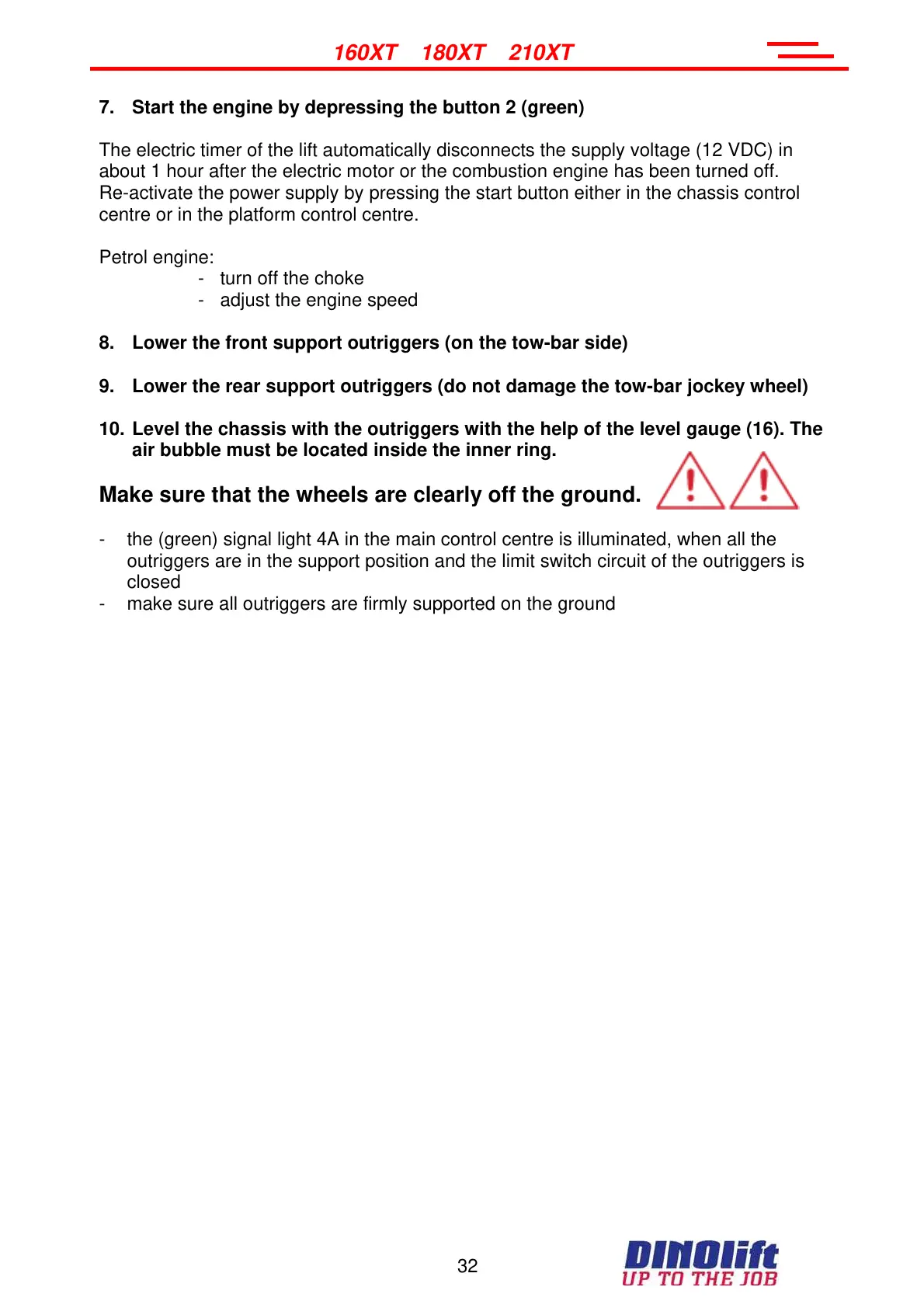

32
160XT 180XT 210XT
7. Start the engine by depressing the button 2 (green)
The electric timer of the lift automatically disconnects the supply voltage (12 VDC) in
about 1 hour after the electric motor or the combustion engine has been turned off.
Re-activate the power supply by pressing the start button either in the chassis control
centre or in the platform control centre.
Petrol engine:
- turn off the choke
- adjust the engine speed
8. Lower the front support outriggers (on the tow-bar side)
9. Lower the rear support outriggers (do not damage the tow-bar jockey wheel)
10. Level the chassis with the outriggers with the help of the level gauge (16). The
air bubble must be located inside the inner ring.
Make sure that the wheels are clearly off the ground.
- the (green) signal light 4A in the main control centre is illuminated, when all the
outriggers are in the support position and the limit switch circuit of the outriggers is
closed
- make sure all outriggers are firmly supported on the ground
