160XT 180XT 210XT

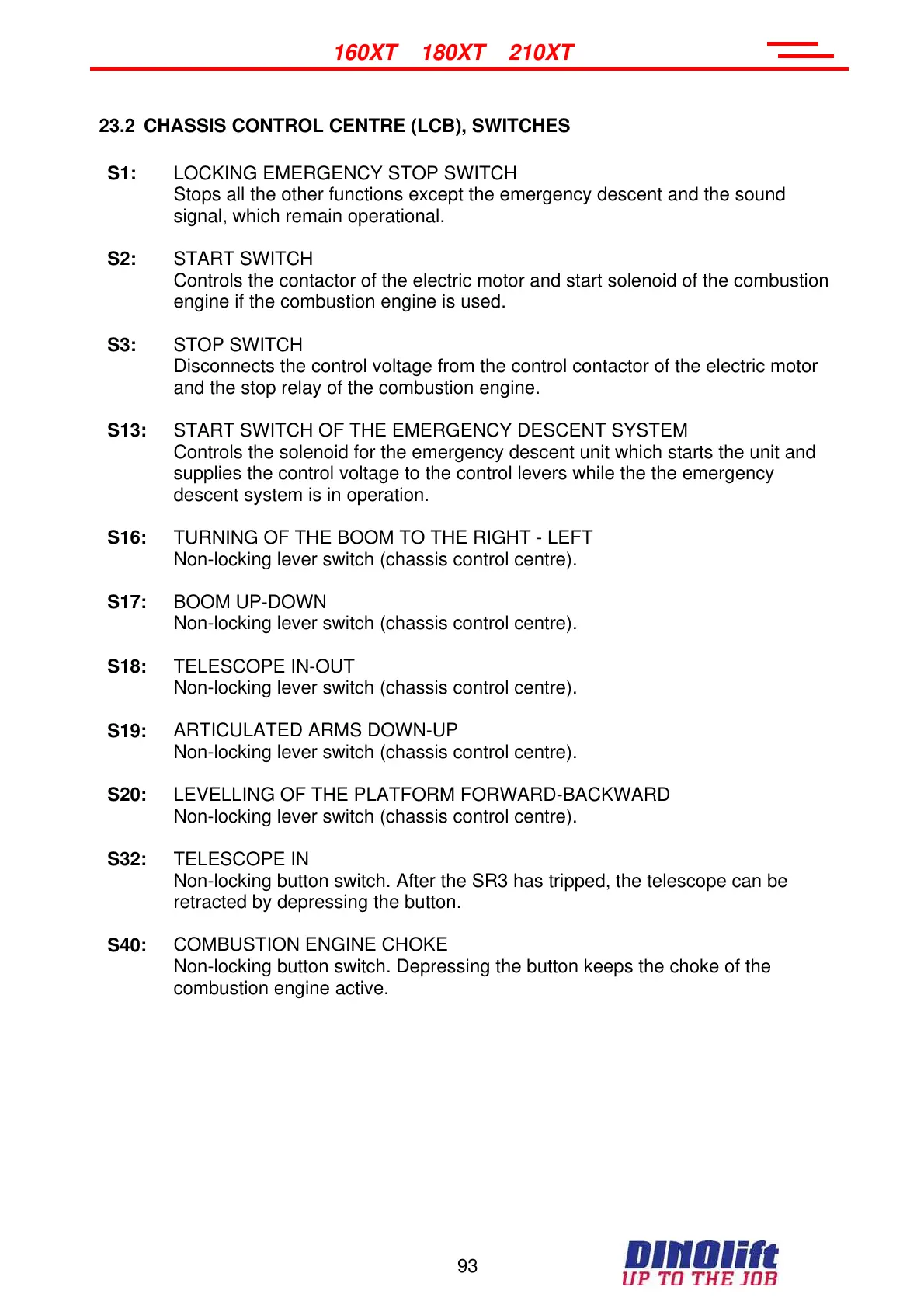

23.2 CHASSIS CONTROL CENTRE (LCB), SWITCHES
S1:
LOCKING EMERGENCY STOP SWITCH
Stops all the other functions except the emergency descent and the sound
signal, which remain operational.
S2:
START SWITCH
Controls the contactor of the electric motor and start solenoid of the combustion
engine if the combustion engine is used.
S3:
STOP SWITCH
Disconnects the control voltage from the control contactor of the electric motor
and the stop relay of the combustion engine.
S13:
START SWITCH OF THE EMERGENCY DESCENT SYSTEM
Controls the solenoid for the emergency descent unit which starts the unit and
supplies the control voltage to the control levers while the the emergency
descent system is in operation.
S16:
TURNING OF THE BOOM TO THE RIGHT - LEFT
Non-locking lever switch (chassis control centre).
S17:
BOOM UP-DOWN
Non-locking lever switch (chassis control centre).
S18:
TELESCOPE IN-OUT
Non-locking lever switch (chassis control centre).
S19:
ARTICULATED ARMS DOWN-UP
Non-locking lever switch (chassis control centre).
S20:
LEVELLING OF THE PLATFORM FORWARD-BACKWARD
Non-locking lever switch (chassis control centre).
S32:
TELESCOPE IN
Non-locking button switch. After the SR3 has tripped, the telescope can be
retracted by depressing the button.
S40:
COMBUSTION ENGINE CHOKE
Non-locking button switch. Depressing the button keeps the choke of the
combustion engine active.
