26
160XT 180XT 210XT

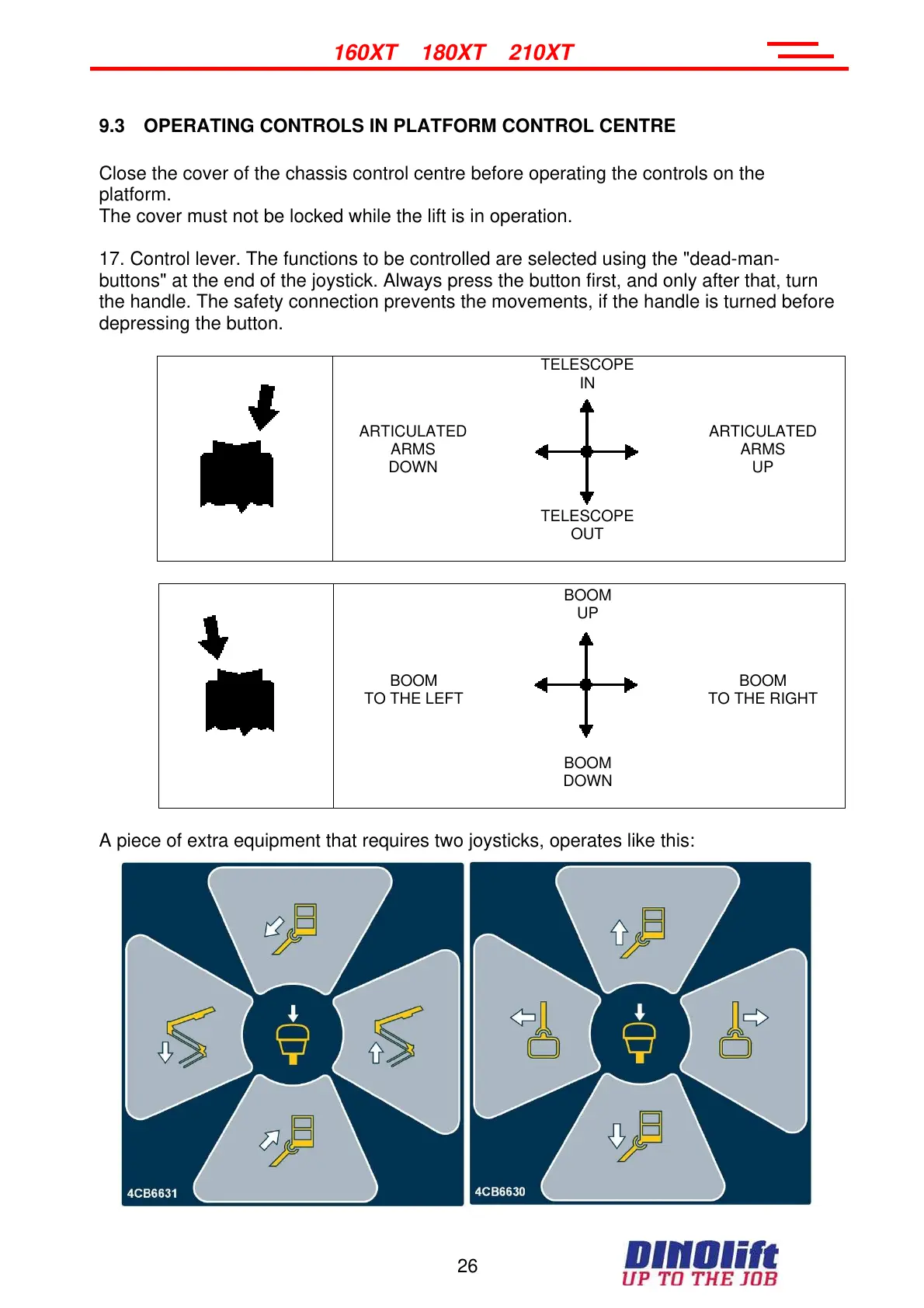

9.3 OPERATING CONTROLS IN PLATFORM CONTROL CENTRE
Close the cover of the chassis control centre before operating the controls on the
platform.
The cover must not be locked while the lift is in operation.
17. Control lever. The functions to be controlled are selected using the "dead-man-
buttons" at the end of the joystick. Always press the button first, and only after that, turn
the handle. The safety connection prevents the movements, if the handle is turned before
depressing the button.
TELESCOPE
IN
ARTICULATED
ARMS
DOWN
ARTICULATED
ARMS
UP
TELESCOPE
OUT
BOOM
UP
BOOM
TO THE LEFT
BOOM
TO THE RIGHT
BOOM
DOWN
A piece of extra equipment that requires two joysticks, operates like this:
