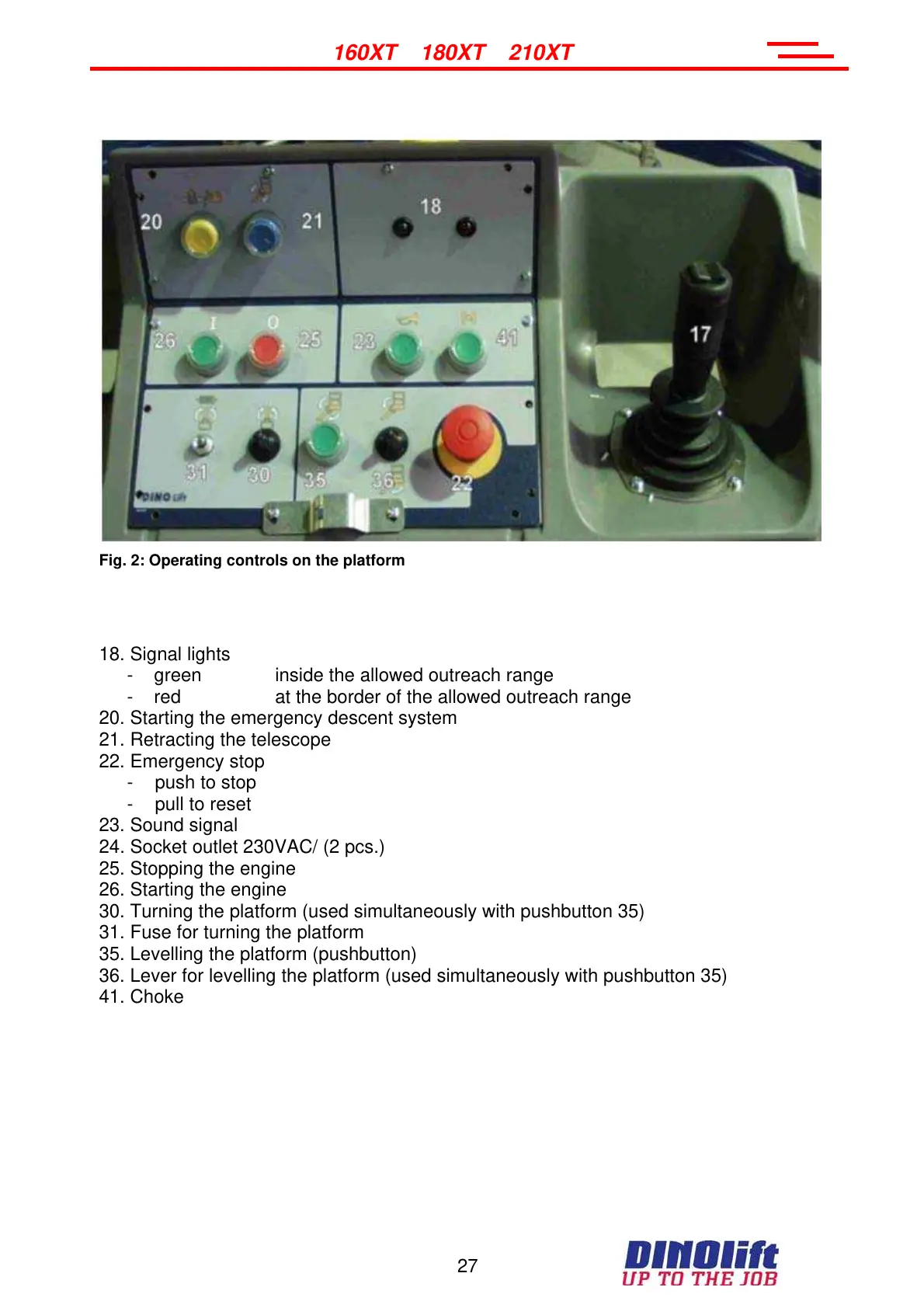

Fig. 2: Operating controls on the platform
18. Signal lights
- green inside the allowed outreach range
- red at the border of the allowed outreach range
20. Starting the emergency descent system
21. Retracting the telescope
22. Emergency stop
- push to stop
- pull to reset
23. Sound signal
24. Socket outlet 230VAC/ (2 pcs.)
25. Stopping the engine
26. Starting the engine
30. Turning the platform (used simultaneously with pushbutton 35)
31. Fuse for turning the platform
35. Levelling the platform (pushbutton)
36. Lever for levelling the platform (used simultaneously with pushbutton 35)
41. Choke
