160XT 180XT 210XT

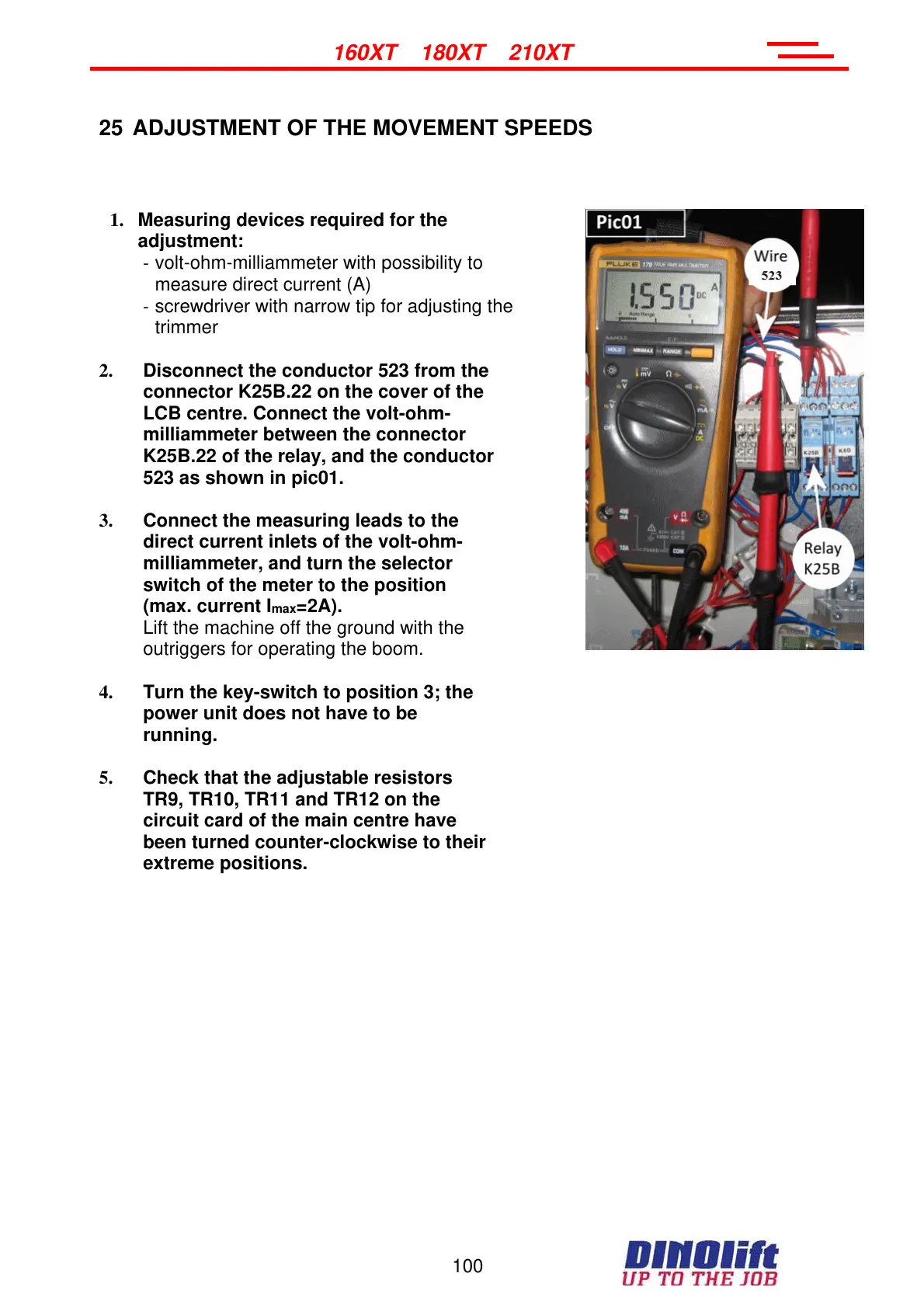

25 ADJUSTMENT OF THE MOVEMENT SPEEDS
1. Measuring devices required for the
adjustment:
‐ volt-ohm-milliammeter with possibility to
measure direct current (A)
‐ screwdriver with narrow tip for adjusting the
trimmer
2. Disconnect the conductor 523 from the
connector K25B.22 on the cover of the
LCB centre. Connect the volt-ohm-
milliammeter between the connector
K25B.22 of the relay, and the conductor
523 as shown in pic01.
3. Connect the measuring leads to the
direct current inlets of the volt-ohm-
milliammeter, and turn the selector
switch of the meter to the position
(max. current I
max
=2A).
Lift the machine off the ground with the
outriggers for operating the boom.
4. Turn the key-switch to position 3; the
power unit does not have to be
running.
5. Check that the adjustable resistors
TR9, TR10, TR11 and TR12 on the
circuit card of the main centre have
been turned counter-clockwise to their
extreme positions.
