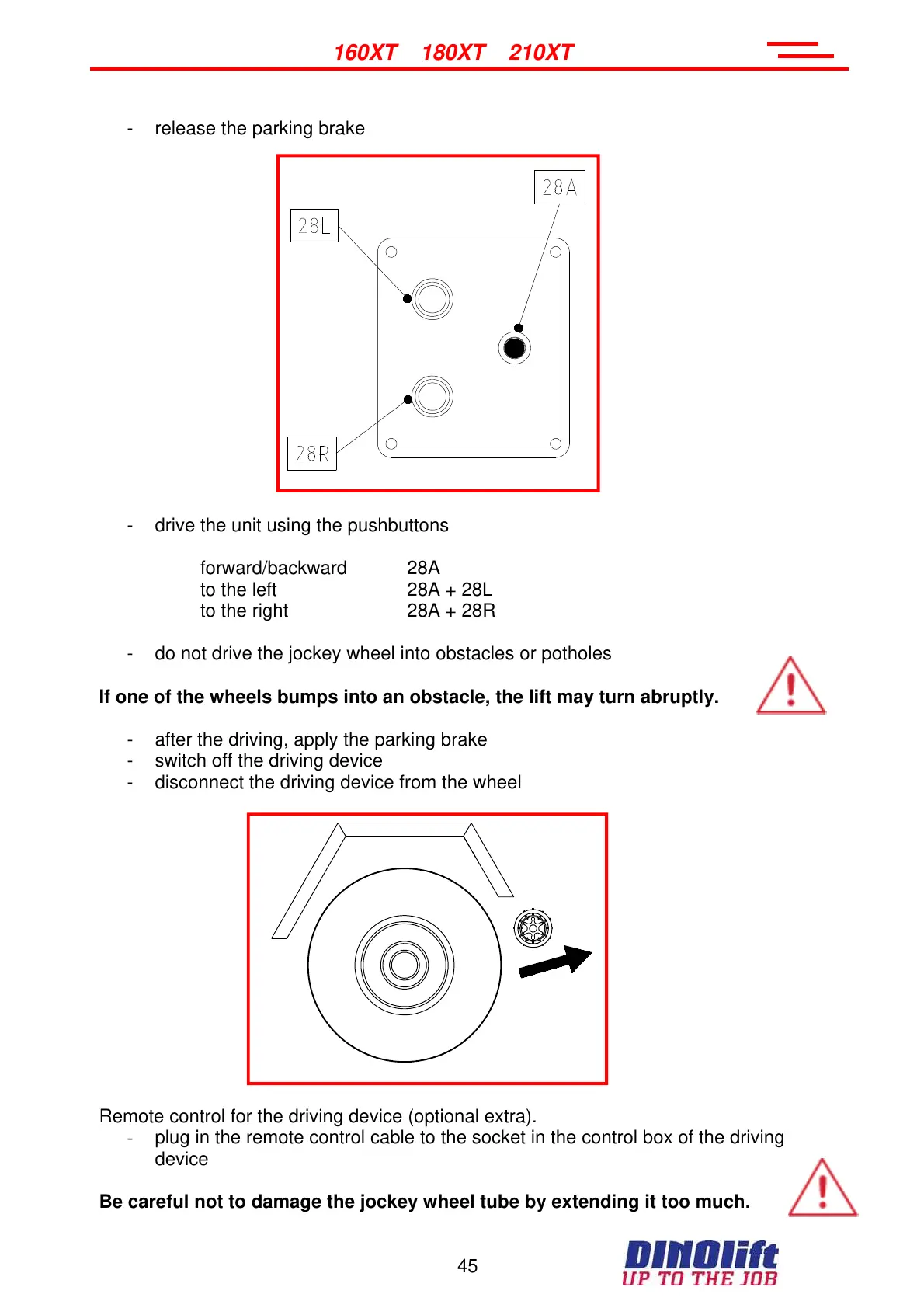

45
160XT 180XT 210XT
- release the parking brake
- drive the unit using the pushbuttons
forward/backward 28A
to the left 28A + 28L
to the right 28A + 28R
- do not drive the jockey wheel into obstacles or potholes
If one of the wheels bumps into an obstacle, the lift may turn abruptly.
- after the driving, apply the parking brake
- switch off the driving device
- disconnect the driving device from the wheel
Remote control for the driving device (optional extra).
- plug in the remote control cable to the socket in the control box of the driving
device
Be careful not to damage the jockey wheel tube by extending it too much.
