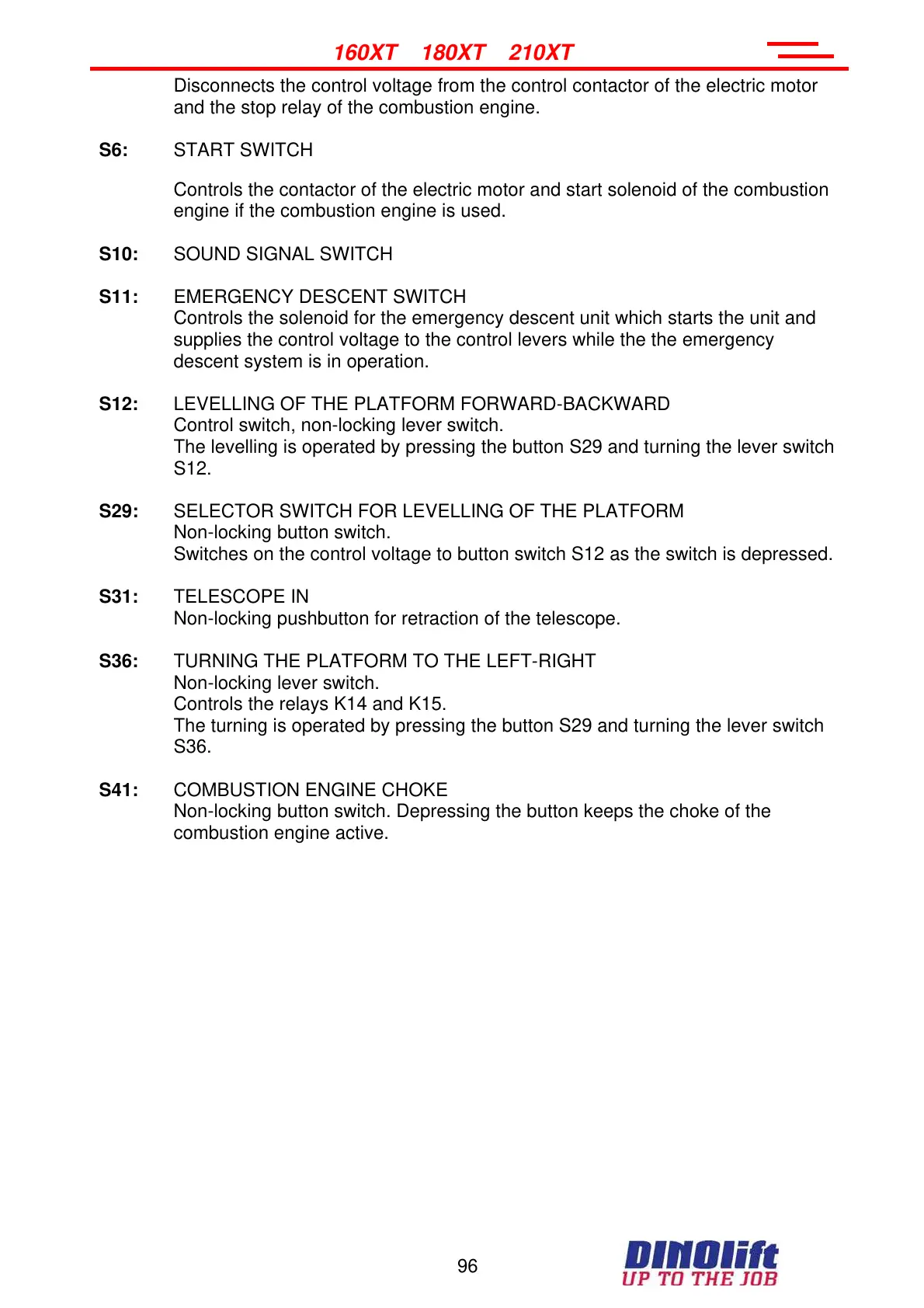

160XT 180XT 210XT
Disconnects the control voltage from the control contactor of the electric motor
and the stop relay of the combustion engine.
S6:
START SWITCH
Controls the contactor of the electric motor and start solenoid of the combustion
engine if the combustion engine is used.
S10:
SOUND SIGNAL SWITCH
S11:
EMERGENCY DESCENT SWITCH
Controls the solenoid for the emergency descent unit which starts the unit and
supplies the control voltage to the control levers while the the emergency
descent system is in operation.
S12:
LEVELLING OF THE PLATFORM FORWARD-BACKWARD
Control switch, non-locking lever switch.
The levelling is operated by pressing the button S29 and turning the lever switch
S12.
S29:
SELECTOR SWITCH FOR LEVELLING OF THE PLATFORM
Non-locking button switch.
Switches on the control voltage to button switch S12 as the switch is depressed.
S31:
TELESCOPE IN
Non-locking pushbutton for retraction of the telescope.
S36:
TURNING THE PLATFORM TO THE LEFT-RIGHT
Non-locking lever switch.
Controls the relays K14 and K15.
The turning is operated by pressing the button S29 and turning the lever switch
S36.
S41:
COMBUSTION ENGINE CHOKE
Non-locking button switch. Depressing the button keeps the choke of the
combustion engine active.
