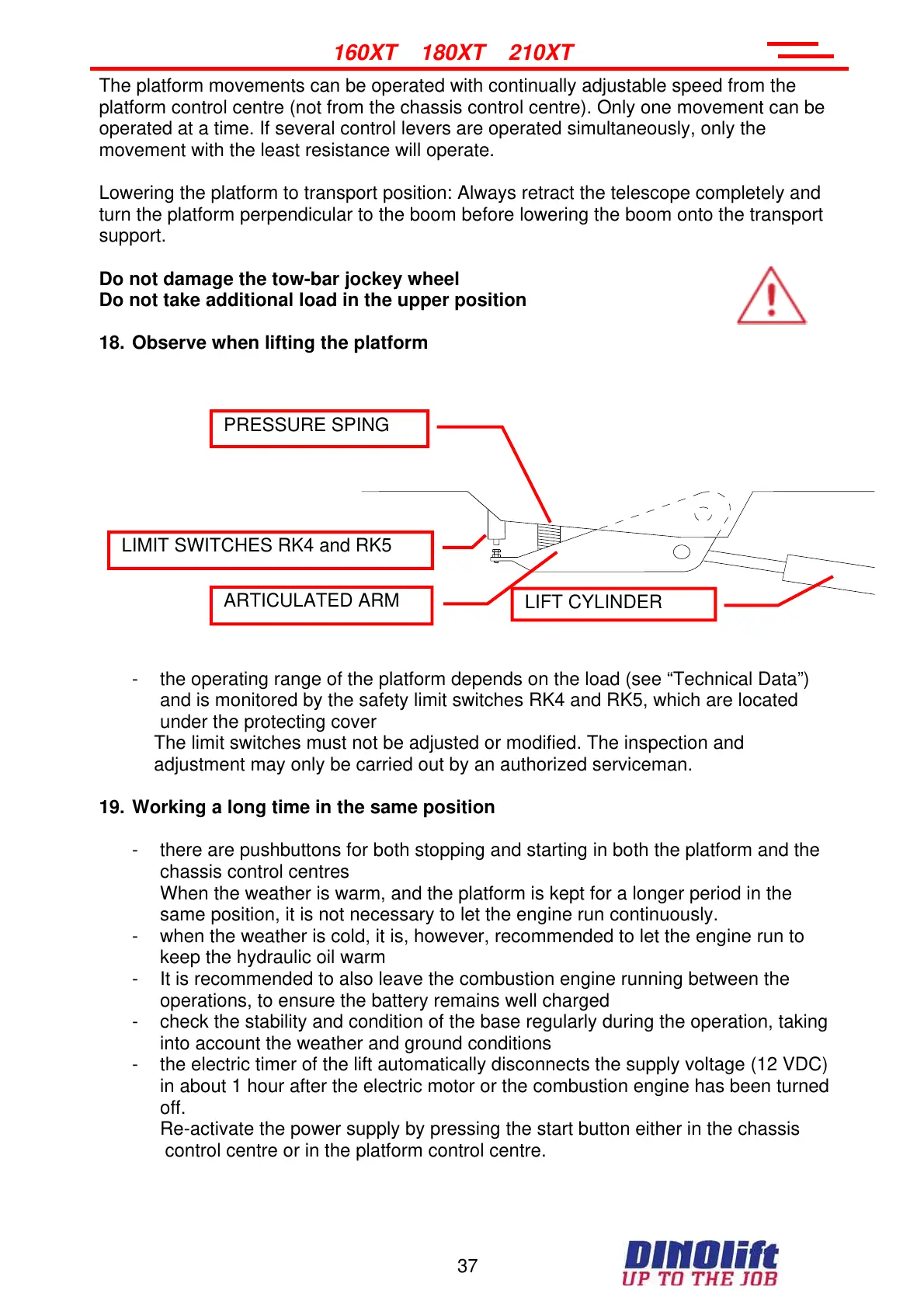

37
160XT 180XT 210XT
The platform movements can be operated with continually adjustable speed from the
platform control centre (not from the chassis control centre). Only one movement can be
operated at a time. If several control levers are operated simultaneously, only the
movement with the least resistance will operate.
Lowering the platform to transport position: Always retract the telescope completely and
turn the platform perpendicular to the boom before lowering the boom onto the transport
support.
Do not damage the tow-bar jockey wheel
Do not take additional load in the upper position
18. Observe when lifting the platform
- the operating range of the platform depends on the load (see “Technical Data”)
and is monitored by the safety limit switches RK4 and RK5, which are located
under the protecting cover
The limit switches must not be adjusted or modified. The inspection and
adjustment may only be carried out by an authorized serviceman.
19. Working a long time in the same position
- there are pushbuttons for both stopping and starting in both the platform and the
chassis control centres
When the weather is warm, and the platform is kept for a longer period in the
same position, it is not necessary to let the engine run continuously.
- when the weather is cold, it is, however, recommended to let the engine run to
keep the hydraulic oil warm
- It is recommended to also leave the combustion engine running between the
operations, to ensure the battery remains well charged
- check the stability and condition of the base regularly during the operation, taking
into account the weather and ground conditions
- the electric timer of the lift automatically disconnects the supply voltage (12 VDC)
in about 1 hour after the electric motor or the combustion engine has been turned
off.
Re-activate the power supply by pressing the start button either in the chassis
control centre or in the platform control centre.
LIMIT SWITCHES RK4 and RK5
PRESSURE SPING
LIFT CYLINDER
ARTICULATED ARM
