Dinolift 160XT - Page 40

40
160XT 180XT 210XT

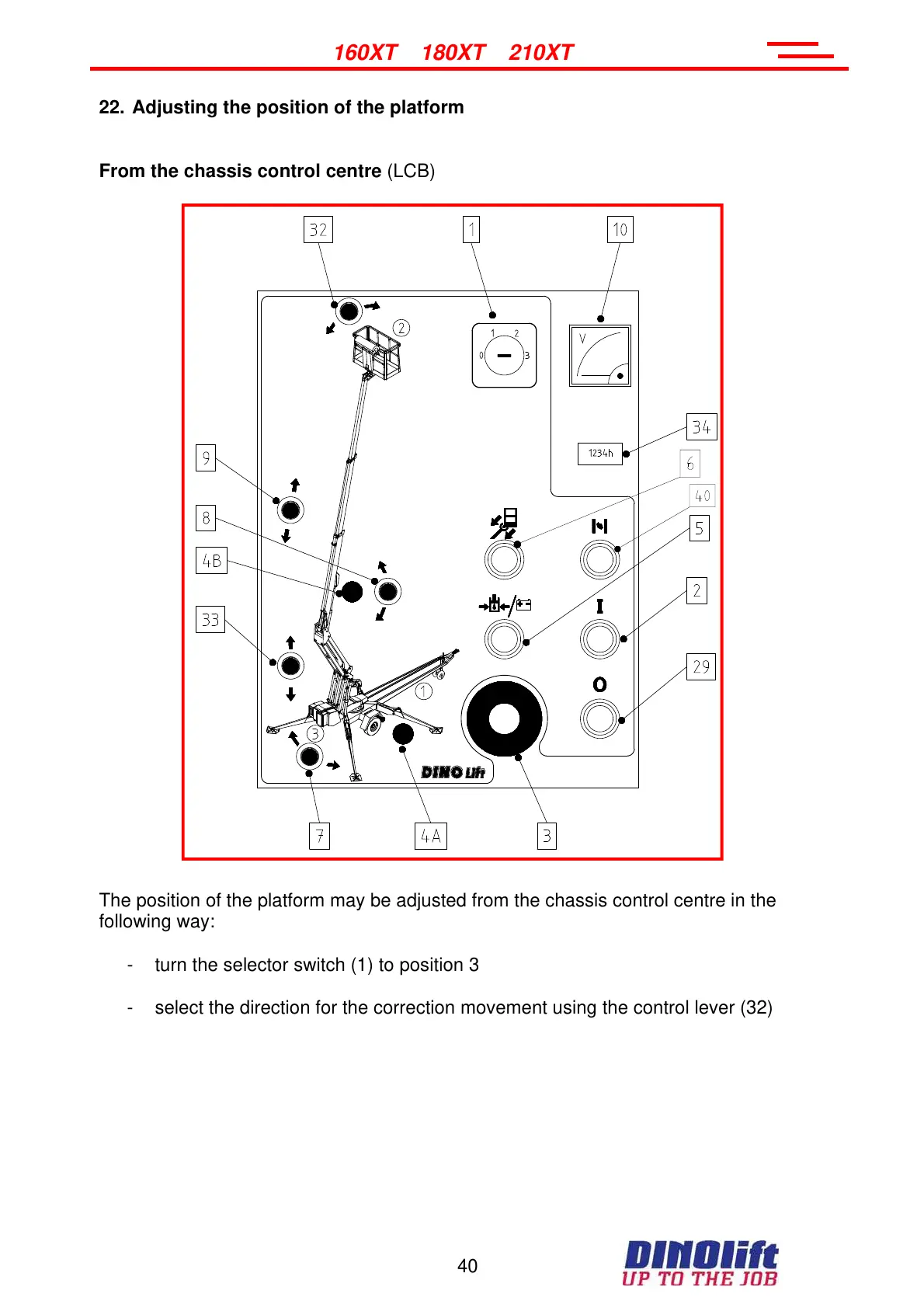

22. Adjusting the position of the platform
From the chassis control centre (LCB)
The position of the platform may be adjusted from the chassis control centre in the
following way:
- turn the selector switch (1) to position 3
- select the direction for the correction movement using the control lever (32)
