84
160XT 180XT 210XT
FAULT REMEDY

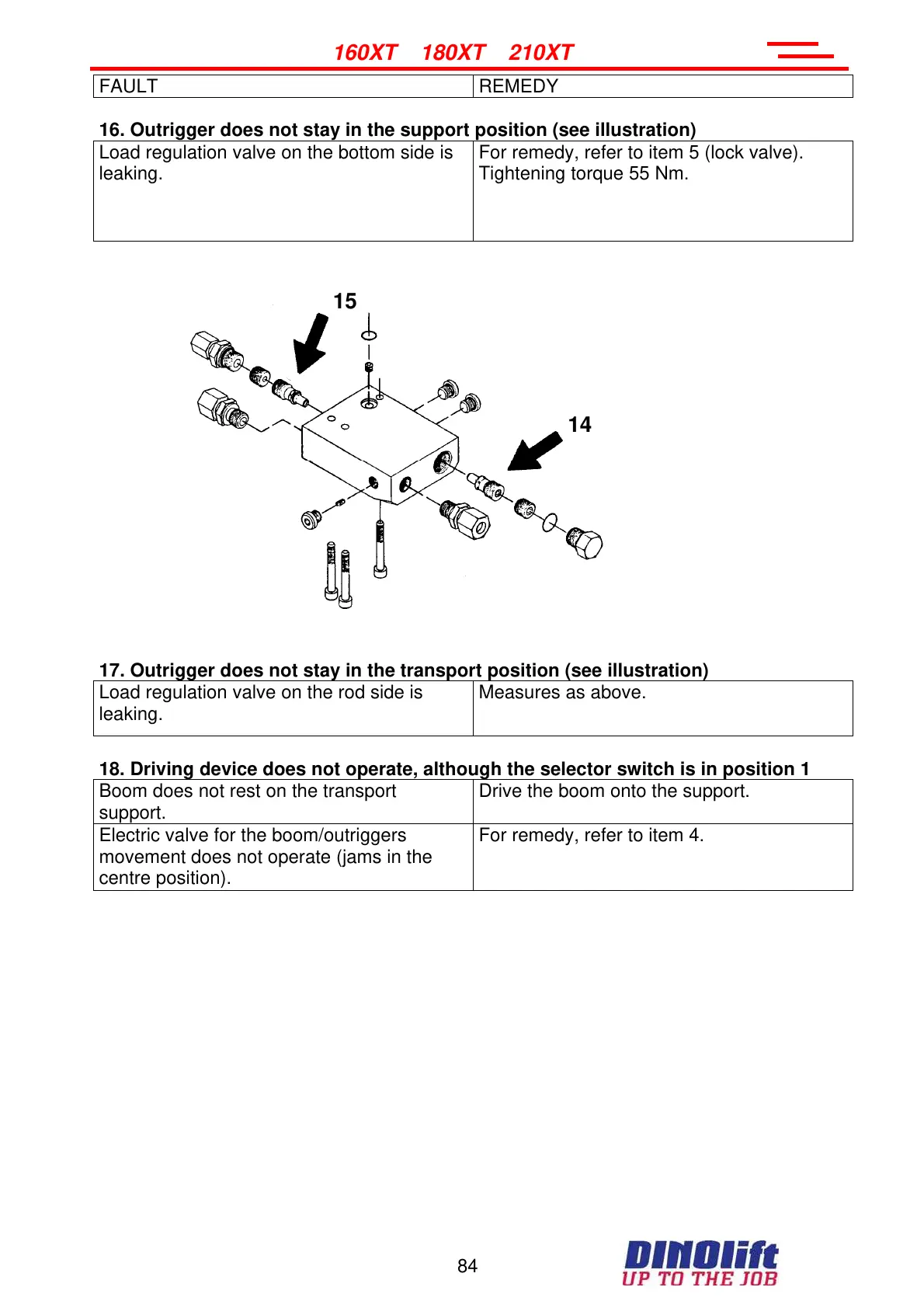

16. Outrigger does not stay in the support position (see illustration)
Load regulation valve on the bottom side is
leaking.
For remedy, refer to item 5 (lock valve).
Tightening torque 55 Nm.
17. Outrigger does not stay in the transport position (see illustration)
Load regulation valve on the rod side is
leaking.
Measures as above.
18. Driving device does not operate, although the selector switch is in position 1
Boom does not rest on the transport
support.
Drive the boom onto the support.
Electric valve for the boom/outriggers
movement does not operate (jams in the
centre position).
For remedy, refer to item 4.
14
15
