SIP User ID
SIP registration account which are provided by the Softswitch and
SIP server
Register Status
Shows the registration status of VoIP channel, including registered
and unregistered.
Status
Show the status of port, Include "onhook" and "offhook"
4.4 Statistics
4.4.1 TCP/UDP

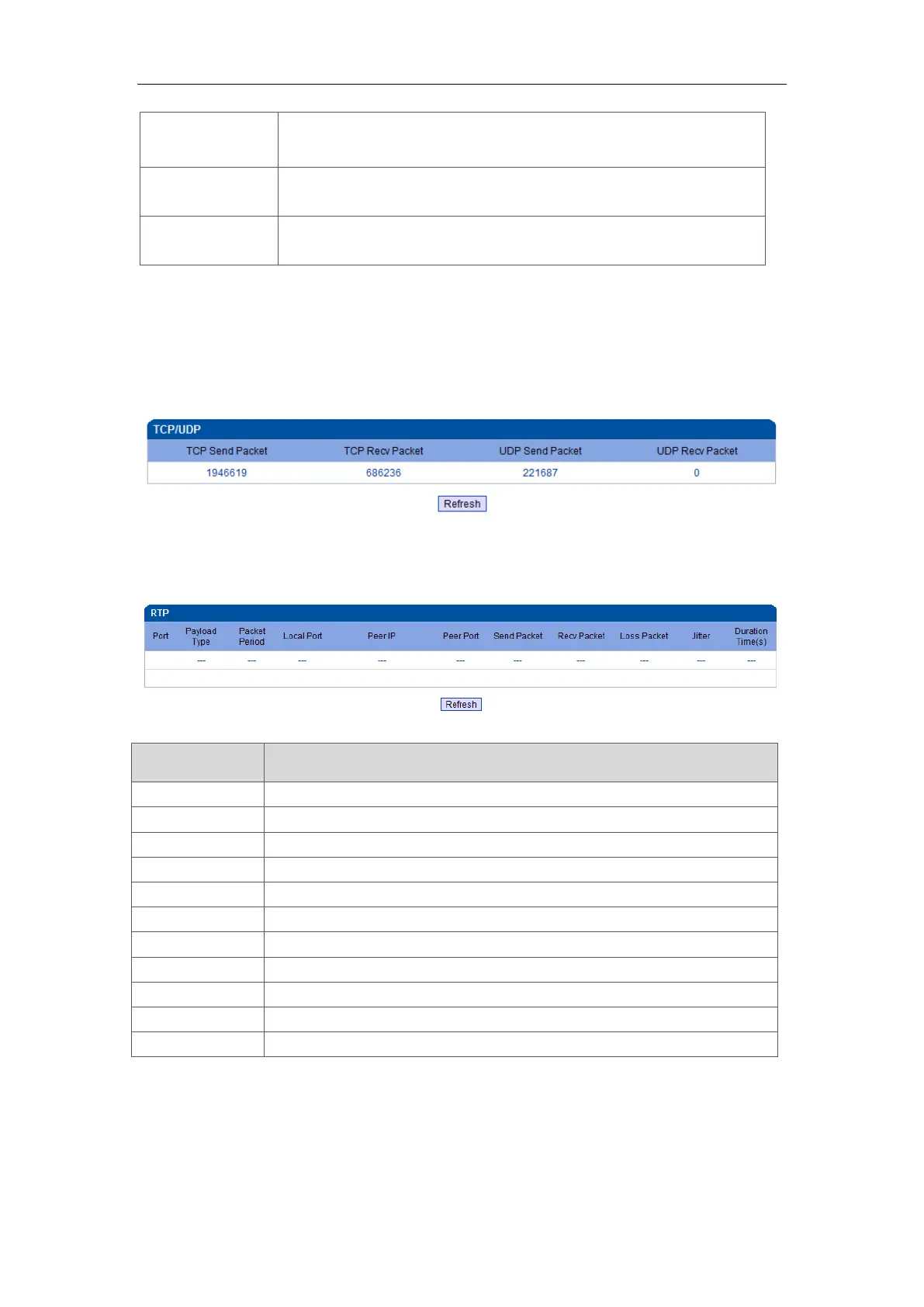

Figure 4-4-1 TCP/UDP Statistics
4.4.2 RTP
Figure 4-4-2 RTP
Table 4-4-1 Description of RTP Statistics
Parameters
Description
Port
The port of RTP statistics
Payload Type
The voice code of this channel, Include G.723.1/PCMA/PCMU/ G.729AB
Packet Period
Time of packaging
Local Port
Local port of transmitting RTP packages
Peer IP
End of equipment IP address
Peer Port
Peer port of receiving RTP packages
Send Packet
Total of sending RTP packages
Recv Packet
Total of receiving RTP packages
Loss Packet
Total of losing RTP packages
Jitter
Length of delay jitter
Duration Time(s)
Both ends of the call time
4.4.3 SIP Call History
Figure 4-4-3 SIP Call History
