In real practical application, the antenna are all elliptic polarization, they have a
certain ratio. So putting the same type antennas in orthogonal position will be helpful
for isolation.
6.4 Isolate by antenna radiation pattern

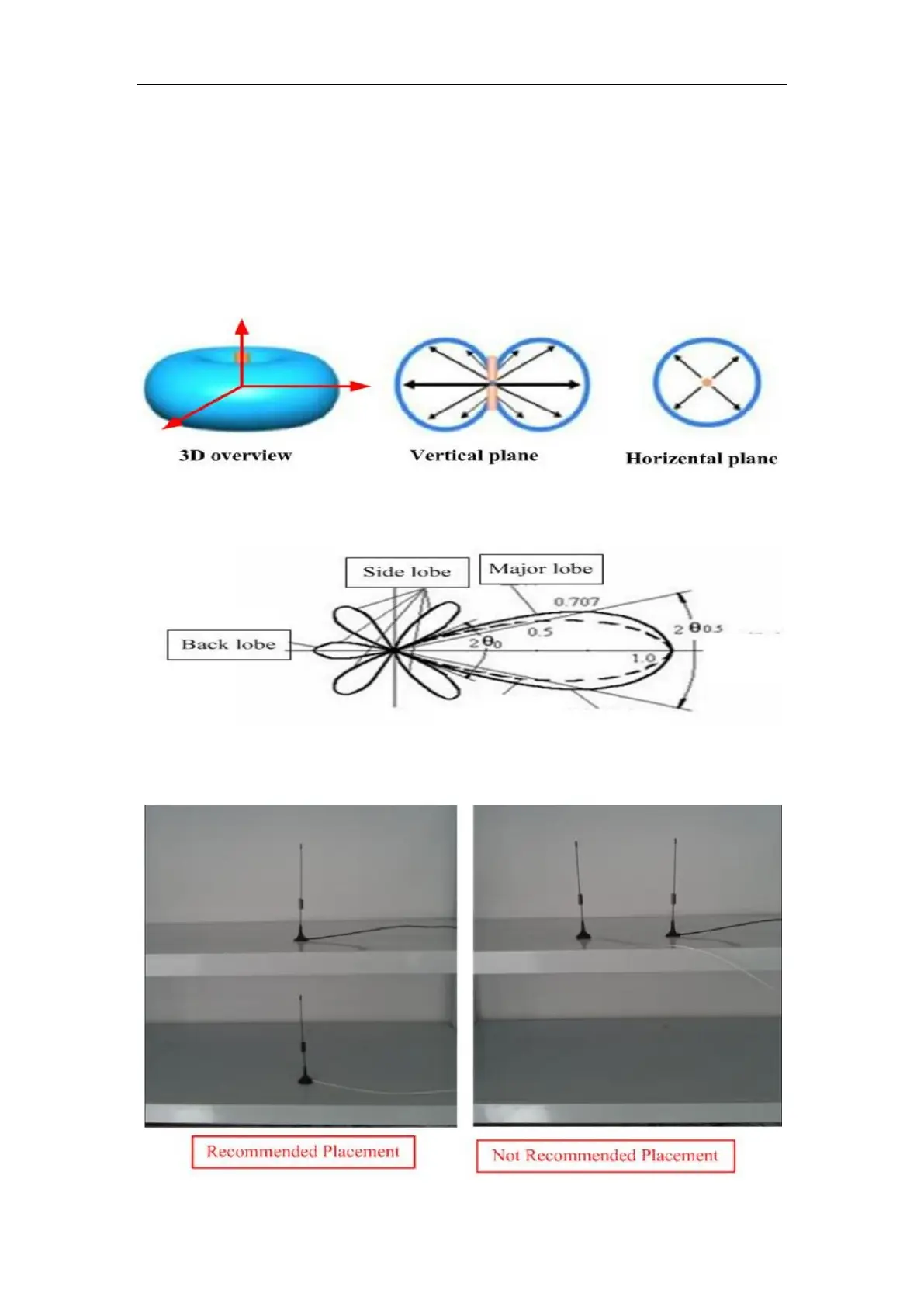

Radiation pattern of low directivity antenna
radiation pattern of high directivity antenna
Recommended placement with nonmetal shelf
