lPage 97
DishPro Wiring Diagrams

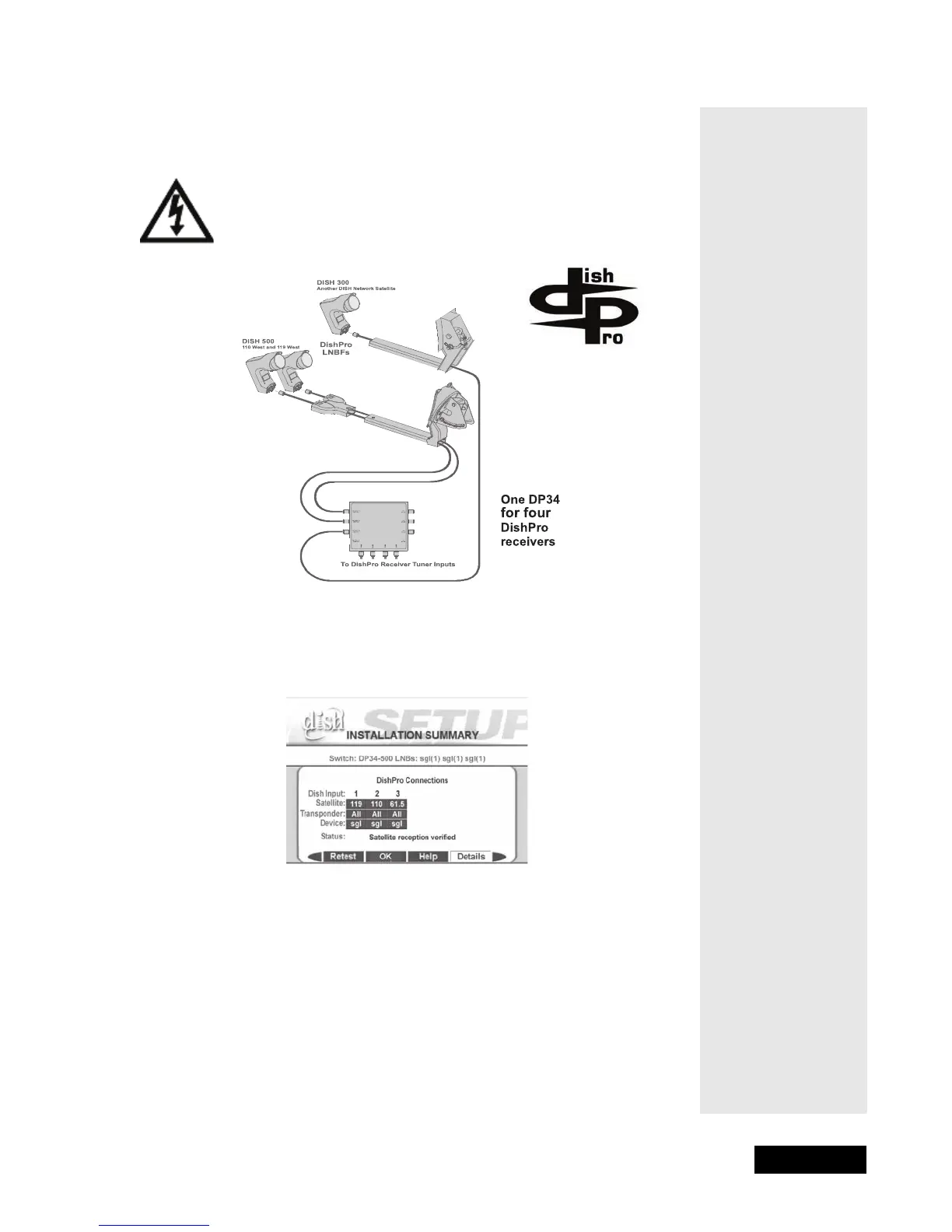

Two Dishes, Three Single-Output DishPro LNBFs, Three
Cables, DP34 Switch, Four DishPro Receivers
This diagram leaves out grounding to be clear. Make sure you
ground the system per the National Electrical Code (NEC) and
all local electrical codes.
.When you set up your system following this diagram and run
Check Switch
the Installation Summary screen should look similar to the one shown
below.
