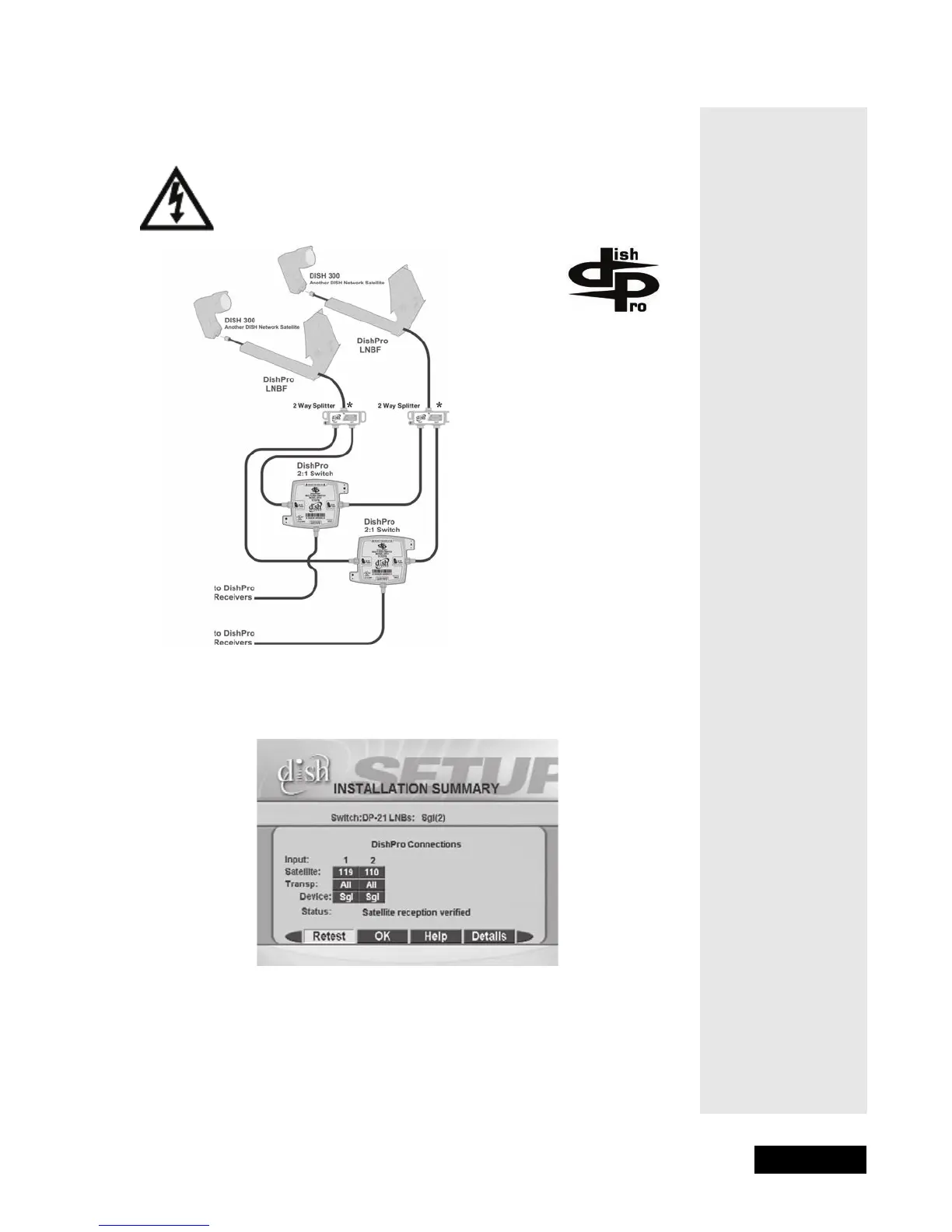

DishPro Wiring Diagrams
Two Dishes, Two DishPro Single LNBFs, Two DishPro Compliant
splitter, Two DishPro 21 Switches, Two Receivers
This diagram leaves out grounding to be clear. Make sure you
ground the system per the National Electrical Code (NEC) and
all local electrical codes.
When you set up your system following this diagram and run
Check Switch
the
Installation Summary screen should look similar to the one shown
below.
* When using a DishPro
compliant splitter to split the
signal from a DishPro single
LNBF, the receiver whose DP21
switch is connected to the
passing side of the splitter must
be plugged into a live power
outlet at all times. If not, the
DishPro single LNBF will not
have any power and will not be
able to provide satellite signal to
the other receiver.
