Mechanical Specifications
All dimensions in this chapter are in millimeters (mm).
CR3 mechanical specifications
CR3 dimensions and working space
When selecting the installation position for the robot, you must consider the cylindrical space
directly over and under the robot, and avoid moving the tool to the cylindrical space as much as
possible. Because this will cause the joints to rotate too fast while the tool moves slowly, resulting
in low working efficiency of the robot and difficult risk assessment.

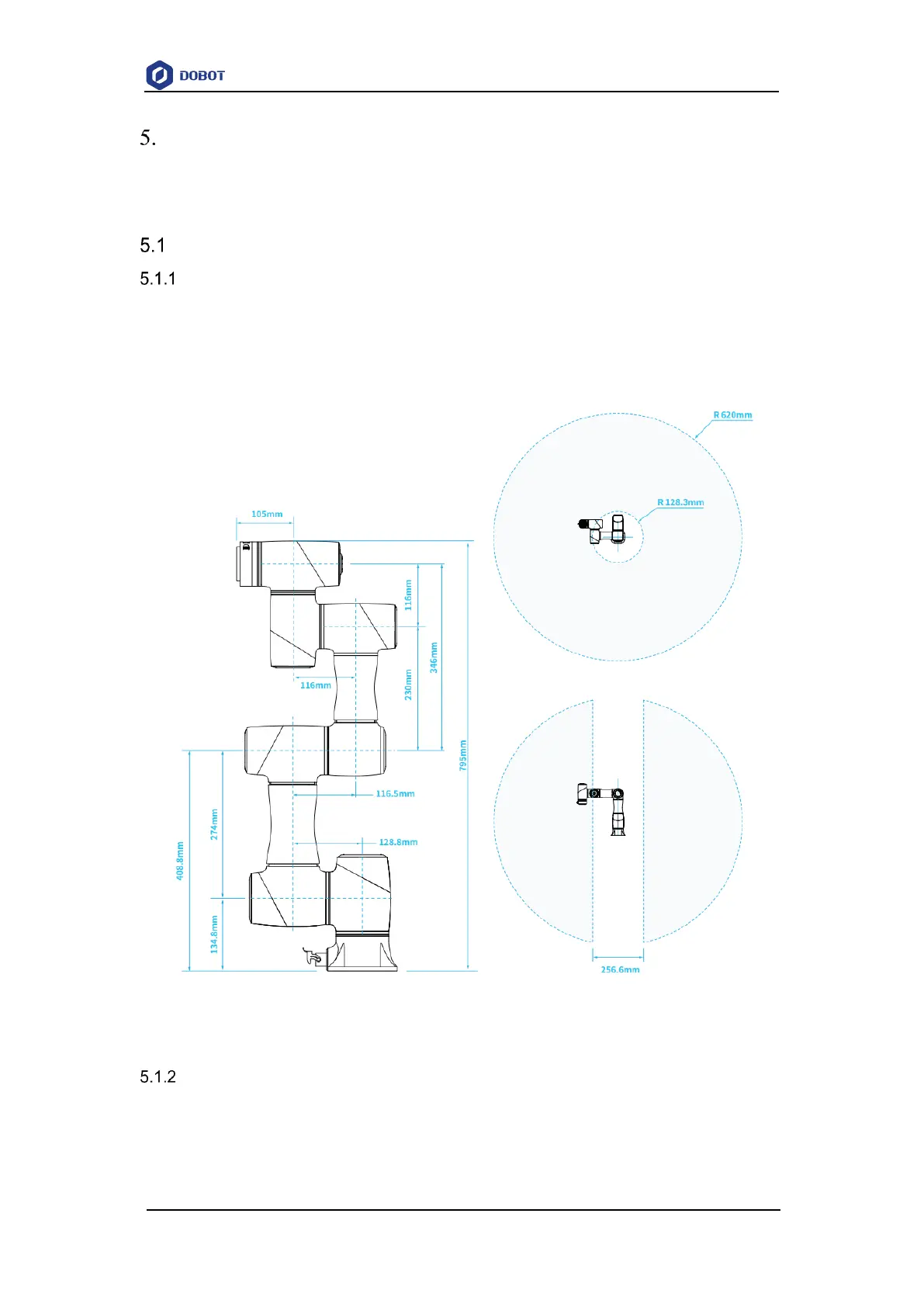

Figure 5.1 CR3 dimensions and working space
CR3 base installation dimensions
