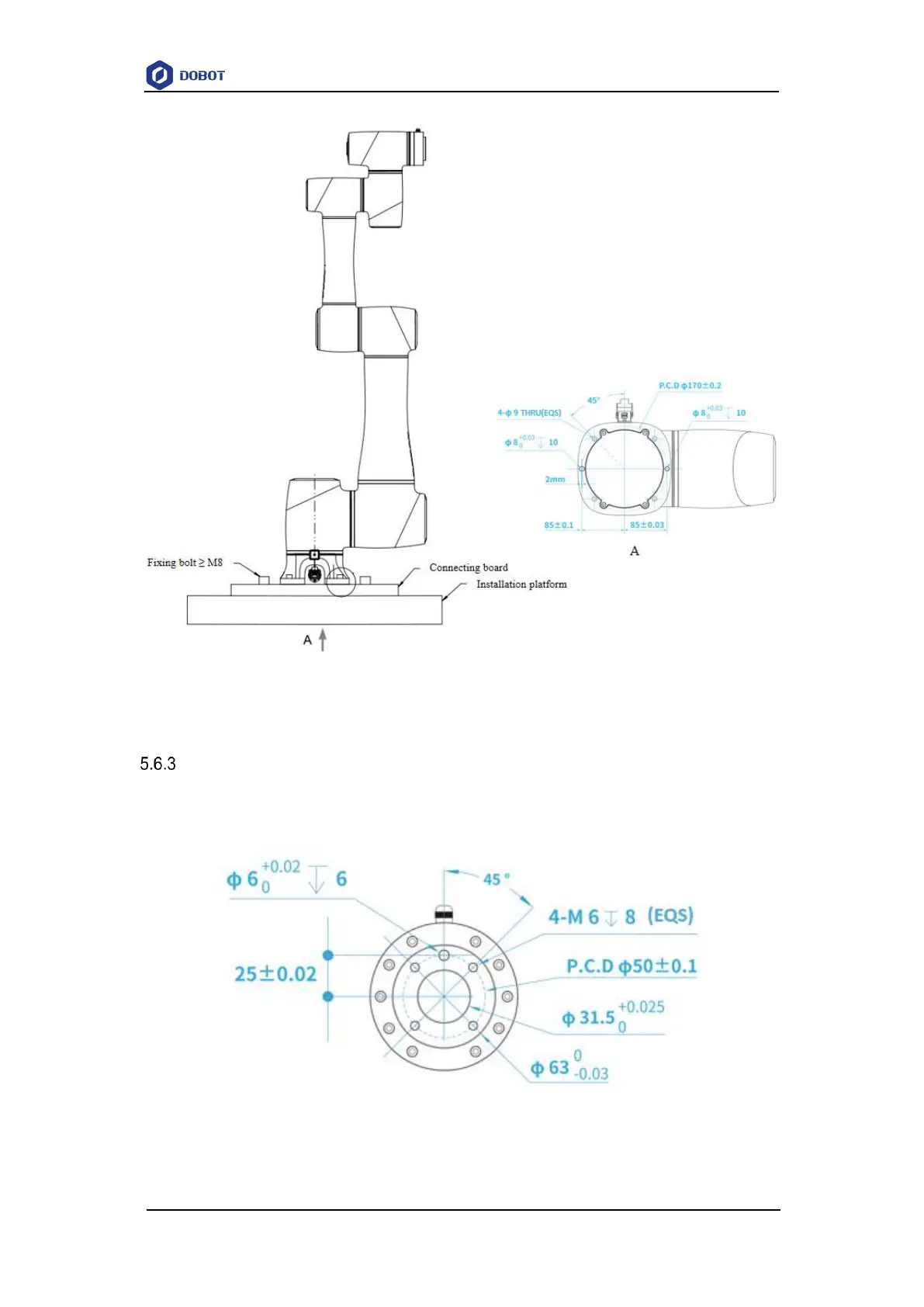

Figure 5.20 CR16 base installation dimensions
CR16 end flange dimensions
The end flanges of CR series robot arms are all in the same size. The flange design conforms
to ISO 9409-1.
Figure 5.21 End flange dimensions
