Dobot CR3 - CR7 End Flange

Dobot CR Series User Guide
Issue V1.1 (2023-04-27) User Guide Copyright © Yuejiang Technology Co., Ltd.
27

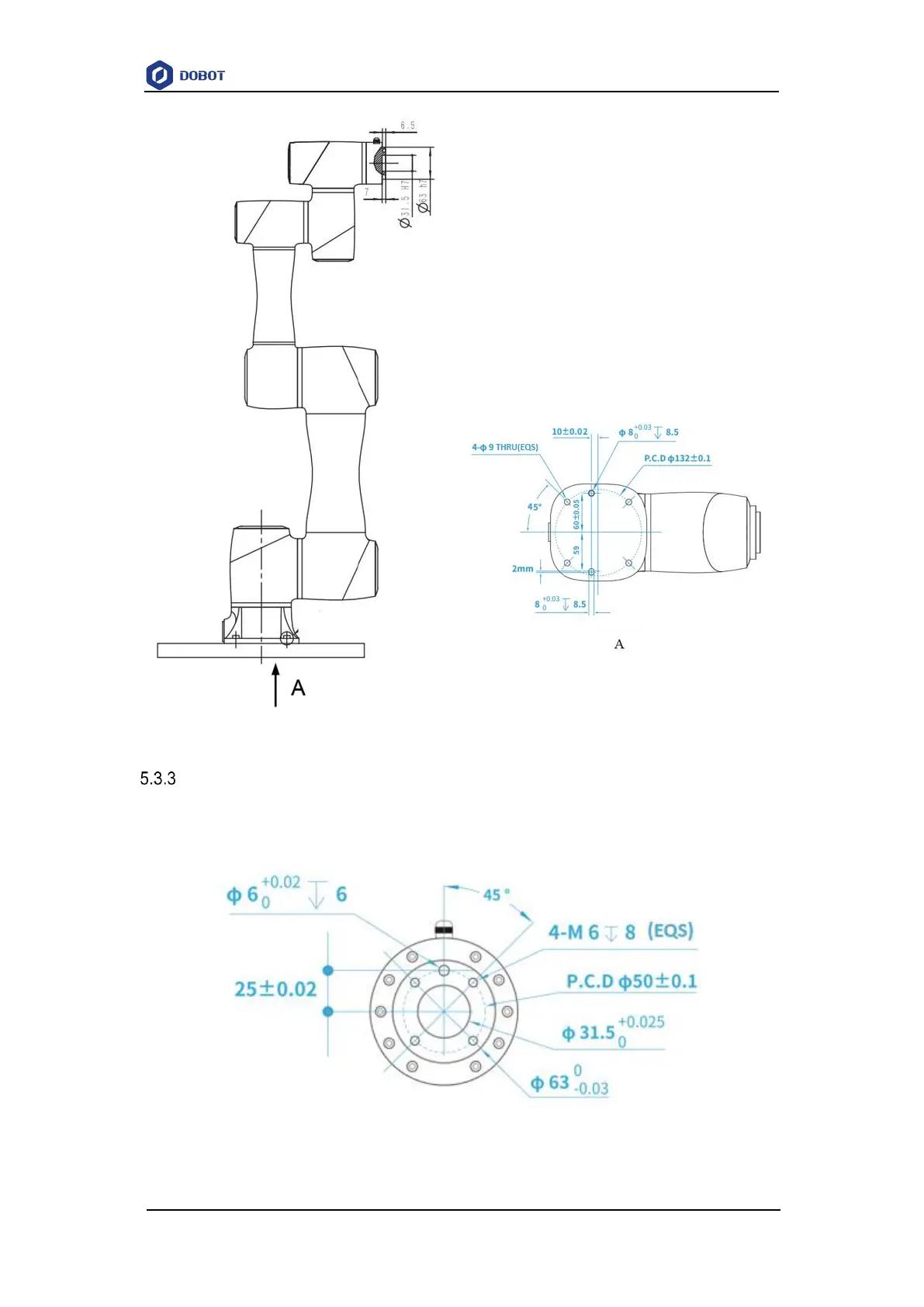

Figure 5.10 CR7 base installation dimensions
CR7 end flange
The end flanges of CR series robot arms are all in the same size. The flange design conforms
to ISO 9409-1.
Figure 5.11 End flange dimensions
