Dobot CR Series User Guide
Issue V1.1 (2023-04-27) User Guide Copyright © Yuejiang Technology Co., Ltd.
11

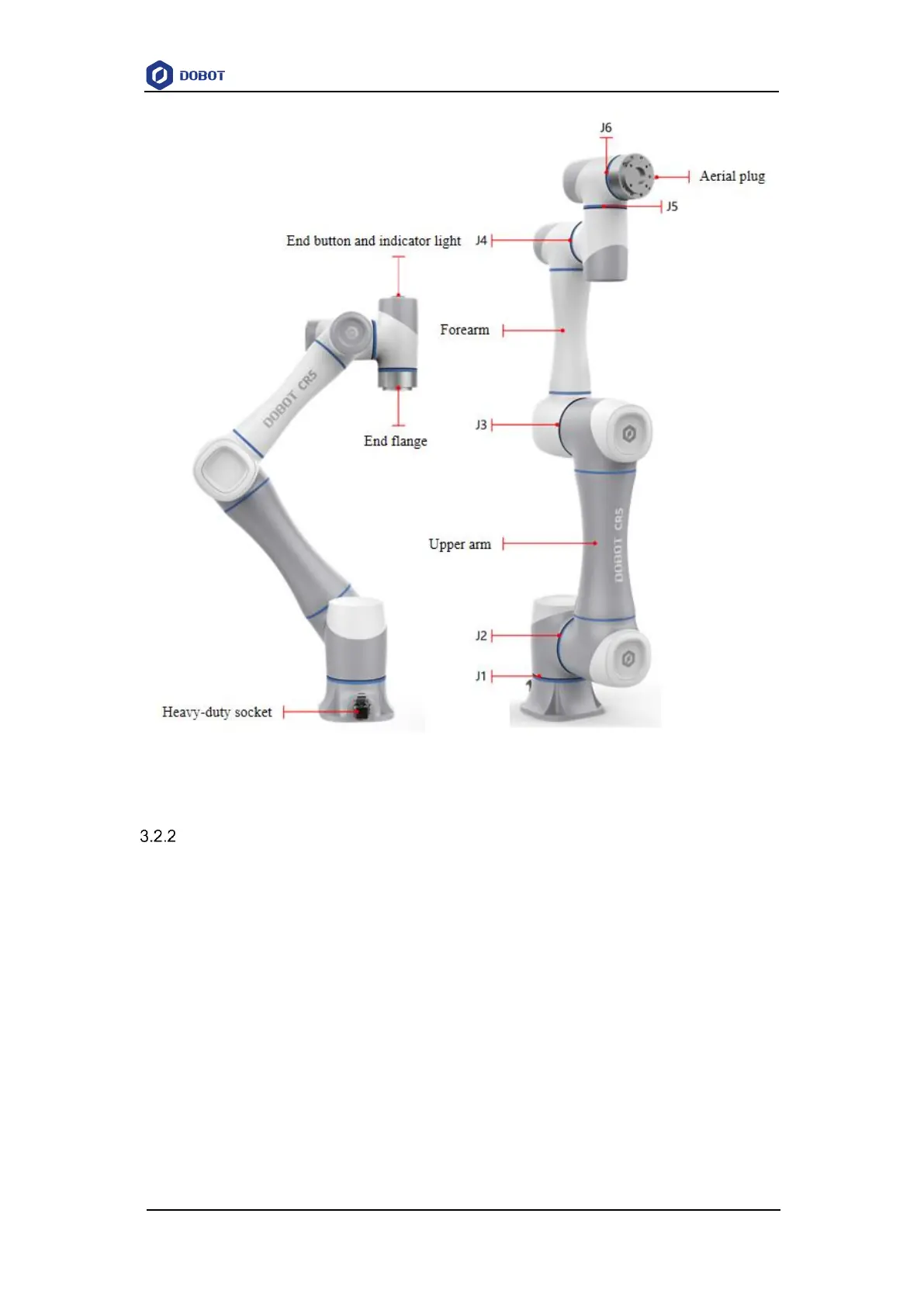

Figure 3.3 CR robot
End buttons and indicator lights
CR series robot arm is equipped with several buttons and indicator light on its end, as shown
in Figure 3.4.
