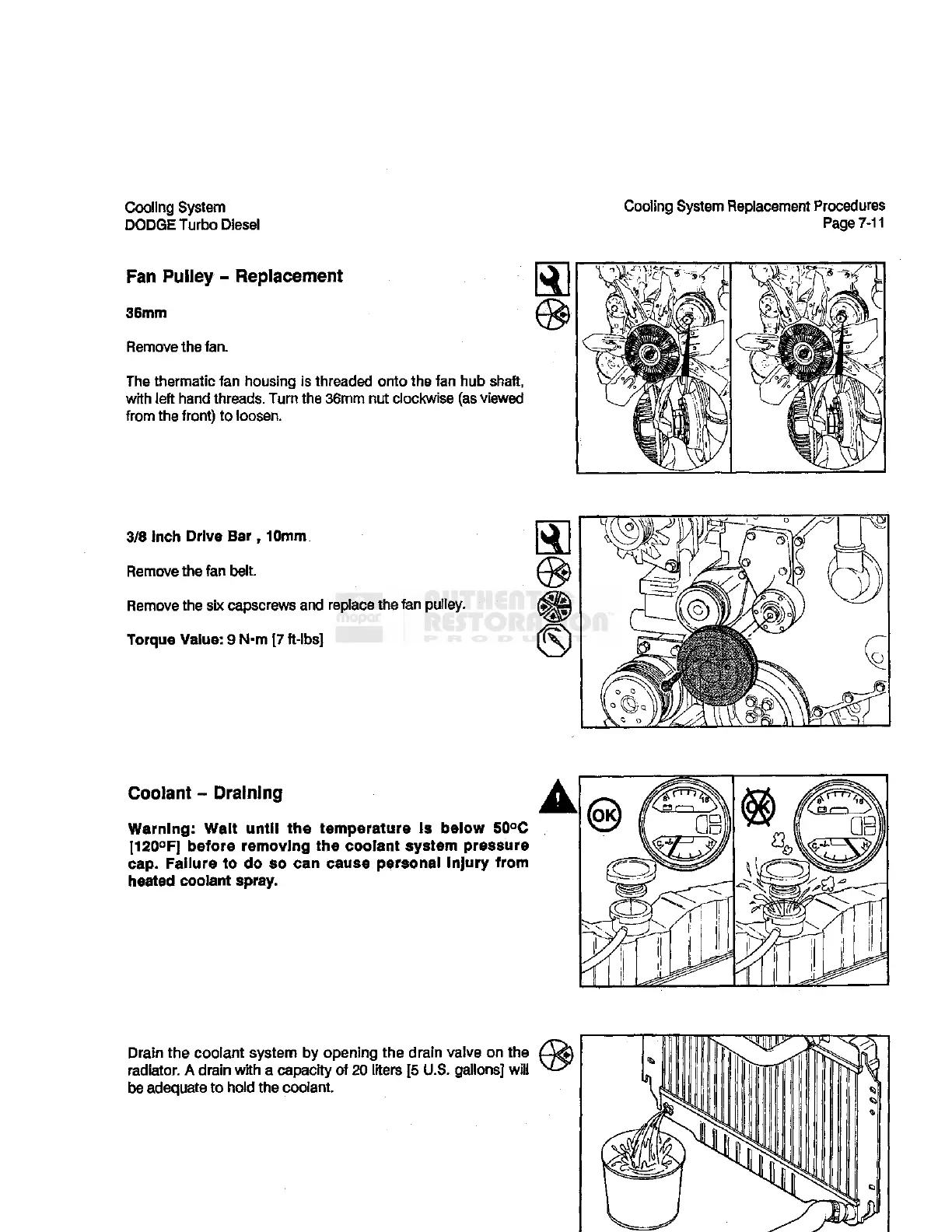

Cooling System
DODGE
Turbo Diesei
Cooiing System Replacement Procedures
Page
7-11
Fan
Pulley
-
Replacement
36mm
Remove the fan.
The thermatic fan housing is threaded onto the fan hub shaft,
with
left
hand threads. Turn the
36mm
nut
clockwise
(as
viewed
from
the
front)
to
loosen.
3/8
inch Drive Bar,
10mm
Remove the fan belt.
Remove the
six
capscrews
and replace the fan pulley.
Torque Value:
9 N-m
[7 ft-lbs]
Coolant
-
Draining
Warning:
Walt
until the temperature is below 50°C
[120°F] before removing the coolant system pressure
cap.
Failure to do so can
cause
personal injury
from
heated coolant spray.
Drain
the
coolant system
by
opening
the
drain valve
on the
radiator.
A
drain
with
a
capacity
of
20 liters
[5
U.S. gallons]
will
be adequate to hold the coolant.
