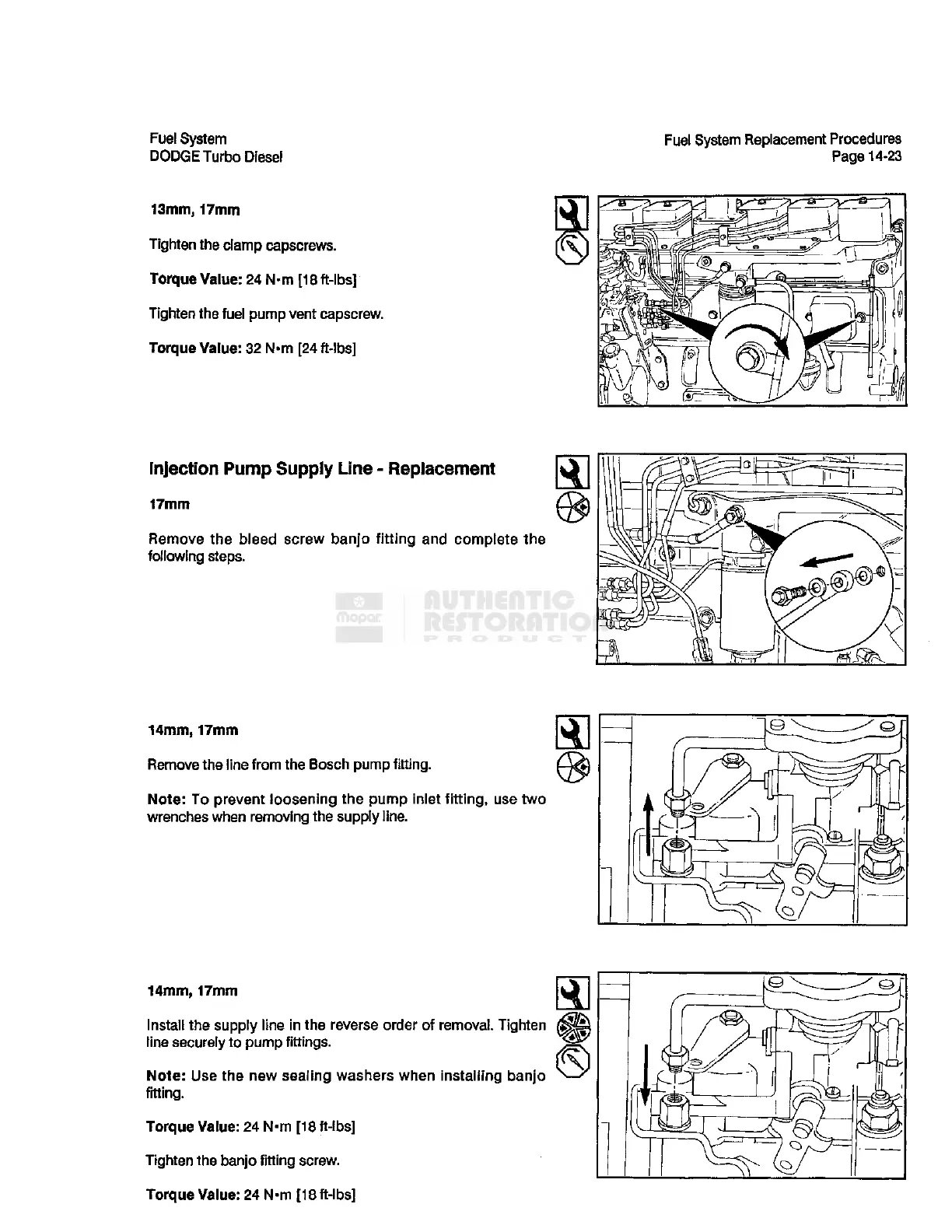

Fuel System
DODGE Turbo Diesel
Fuel System Replacement Procedures
Page 14-23
14mm, 17mm
Remove the line from the Bosch pump fitting.
Note;
To prevent loosening the pump Inlet fitting, use two
wrenches when removing the supply line.
14mm, 17mm
Install the supply line In the reverse order of removal. Tighten p
line securely to pump fittings.
Note:
Use the new sealing washers when installing banjo
>s
—'
fitting.
Torque Value; 24 N-m [18 ft-lbs]
Tighten the banjo fitting screw.
Torque Value: 24 N-m [18 ft-lbs]
