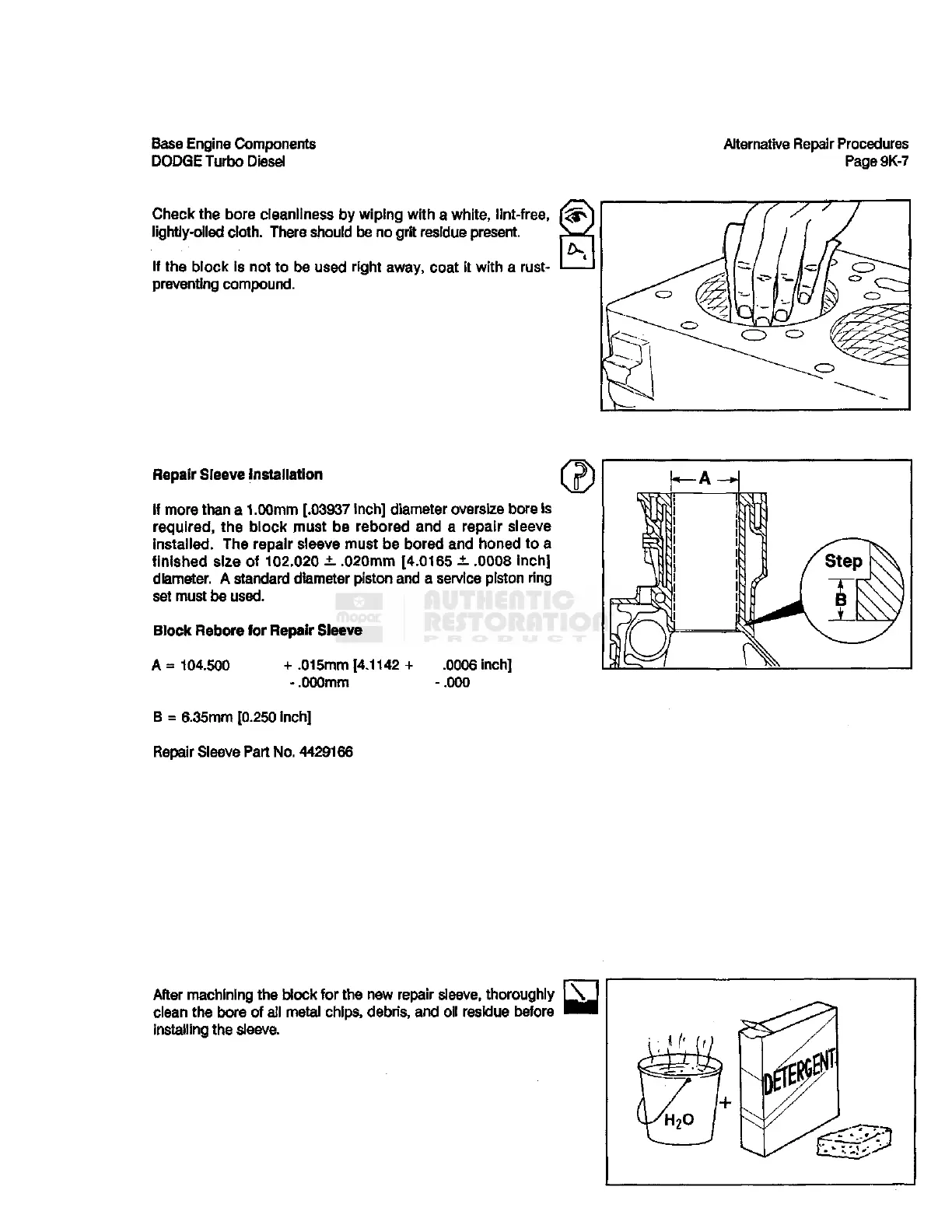

Base
Engine Components
DODGE
Turbo Diesel
Alternative Repair Procedures
Page9K-7
Check
the bore cleanliness by wiping
with
a white,
lint-free.
lightly-oiled cloth. There should be no
grit
residue present.
If the block is not to be used
right
away, coat it
with
a
rust-
preventing compound.
Repair Sleeve Installation
If more
than
a
1.00mm
[.03937
inch] diameter oversize bore is
required, the block must be rebored and
a
repair sleeve
installed. The repair sleeve must be bored and honed to
a
finished size
of
102.020
±
.020mm
[4.0165
±
.0008
inch]
diameter. A standard diameter piston and a service piston ring
set
must be
used.
Block
Rebore for Repair Sleeve
A
=
104.500
+
.015mm
[4,1142
+
.0006
inch]
-
.000mm
-
.000
•//////////
tj
:
f
Step
\\
(Jjw (Jjw
B
=
6.35mm
[0.250
inch]
Repair Sleeve Part No.
4429166
