Dodge D350 1990 - Disassembly of the Turbocharger

Turbocharger - Rebuilding
Page 11-24
Exhaust System and Intake Manifold
DODGE Turbo Diesel

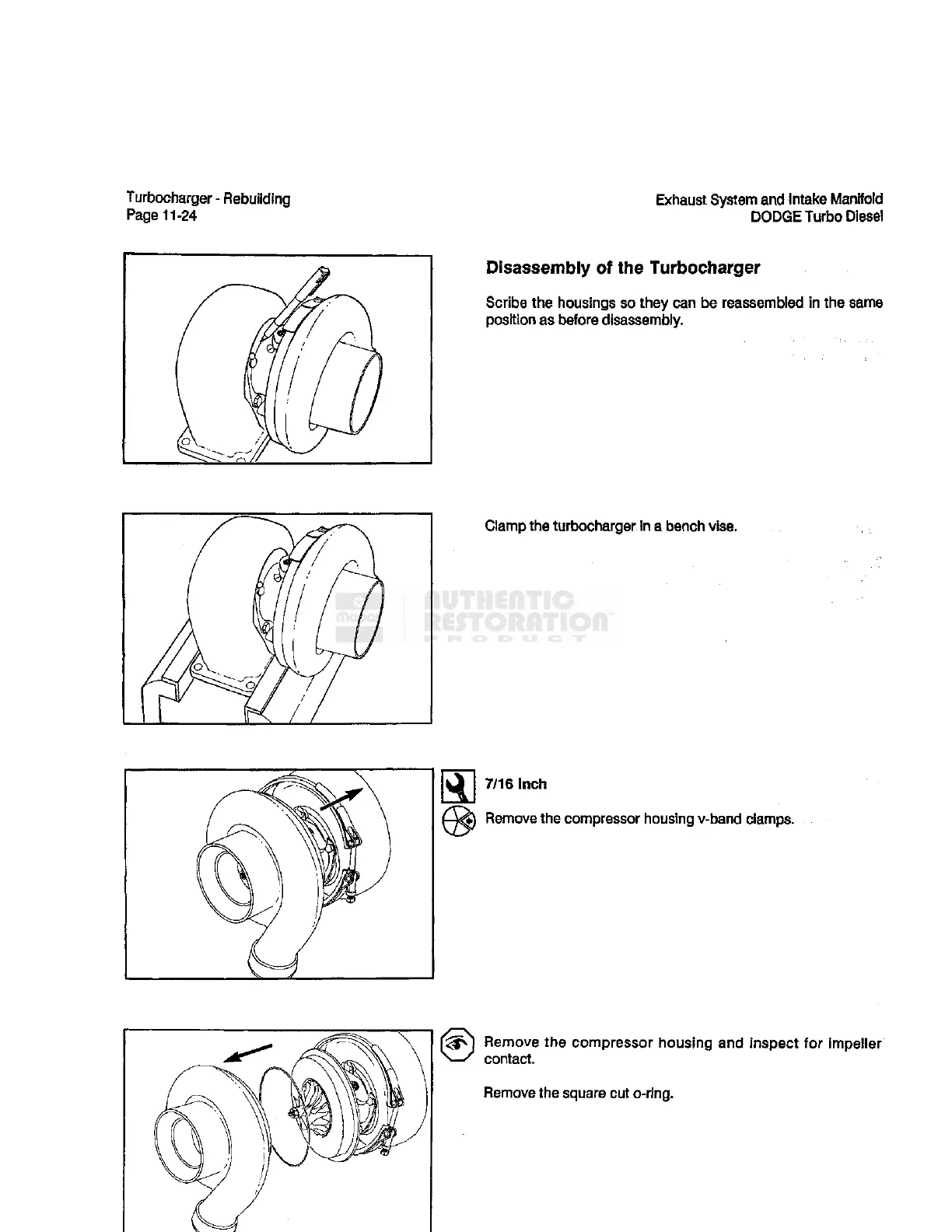

Disassembly of the Turbocharger
Scribe the housings so they can be reassembled in the same
position as before disassembly.
Clamp the turbocharger in a bench vise.
7/16 Inch
:•>) Remove the compressor housing v-band clamps.
[^f\] Remove the compressor housing and inspect for impeller
contact.
Remove the square cut o-ring.
