Base
Engine Components
DODGE
Turbo Diesel
Out-of-Chassis
Repairs
Page 91-13

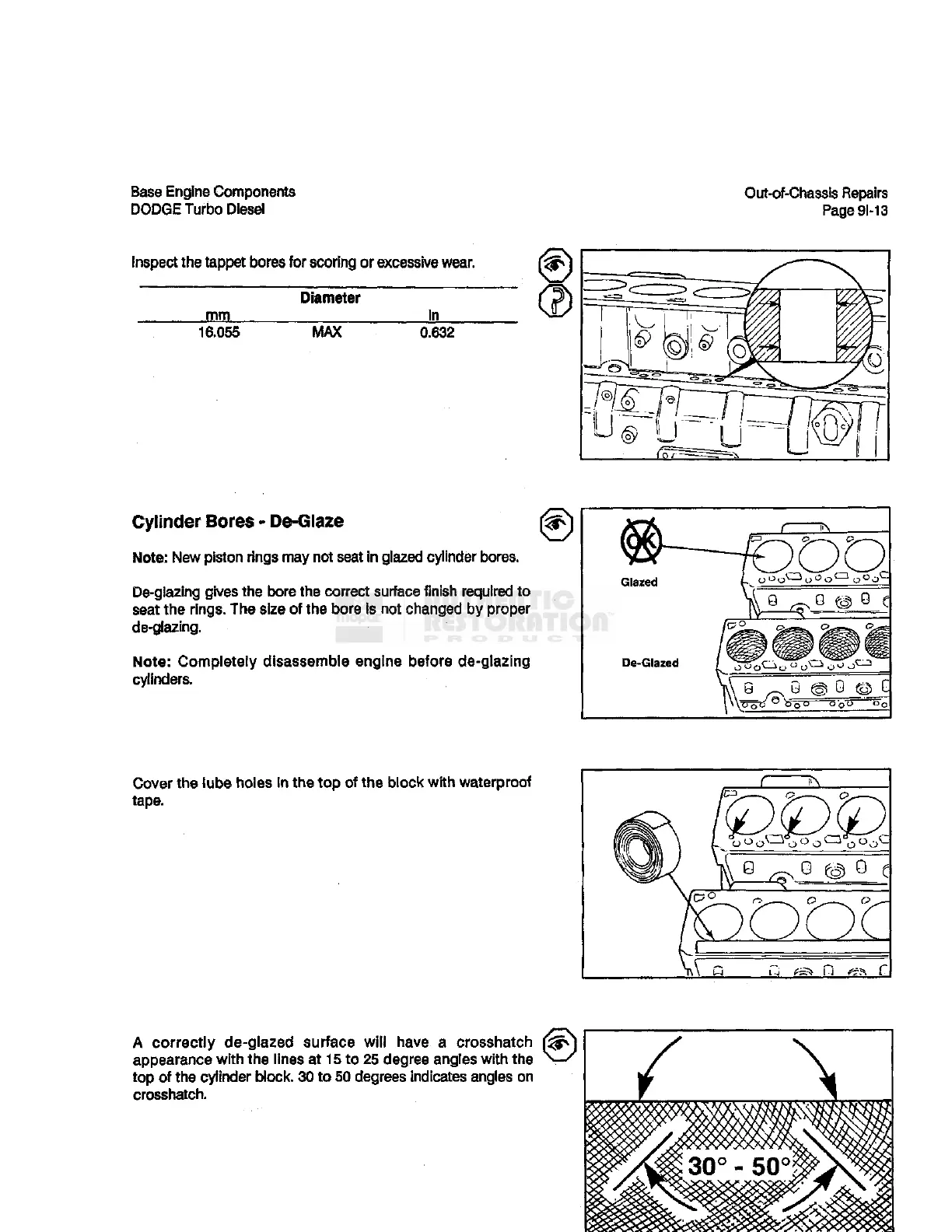

Inspect the
tappet
bores for
scoring
or
excessive
wear.
Diameter
mm
in
16.055
MAX
0.632
Cylinder Bores - De-Glaze
Note:
New piston rings may not seat in glazed cylinder bores.
De-giazing gives the bore the correct surface finish required to
seat
the rings. The size of the bore is not changed by proper
de-glazing.
Note:
Completely disassemble engine before de-glazing
cylinders.
Glazed
De-Glazed
^ Q ^ Q @ 0 C
8 ^
Q
@ Q © C
Cover
the lube holes in the top of the block
with
waterproof
tape.
'£3.—^
c>
( ^
A
correctly de-glazed surface
will
have a Crosshatch
appearance
with
the lines at 15 to 25 degree angles
with
the
top of the cylinder block. 30 to 50 degrees indicates angles on
Crosshatch.
