Engine Electrical System Replacement Procedures

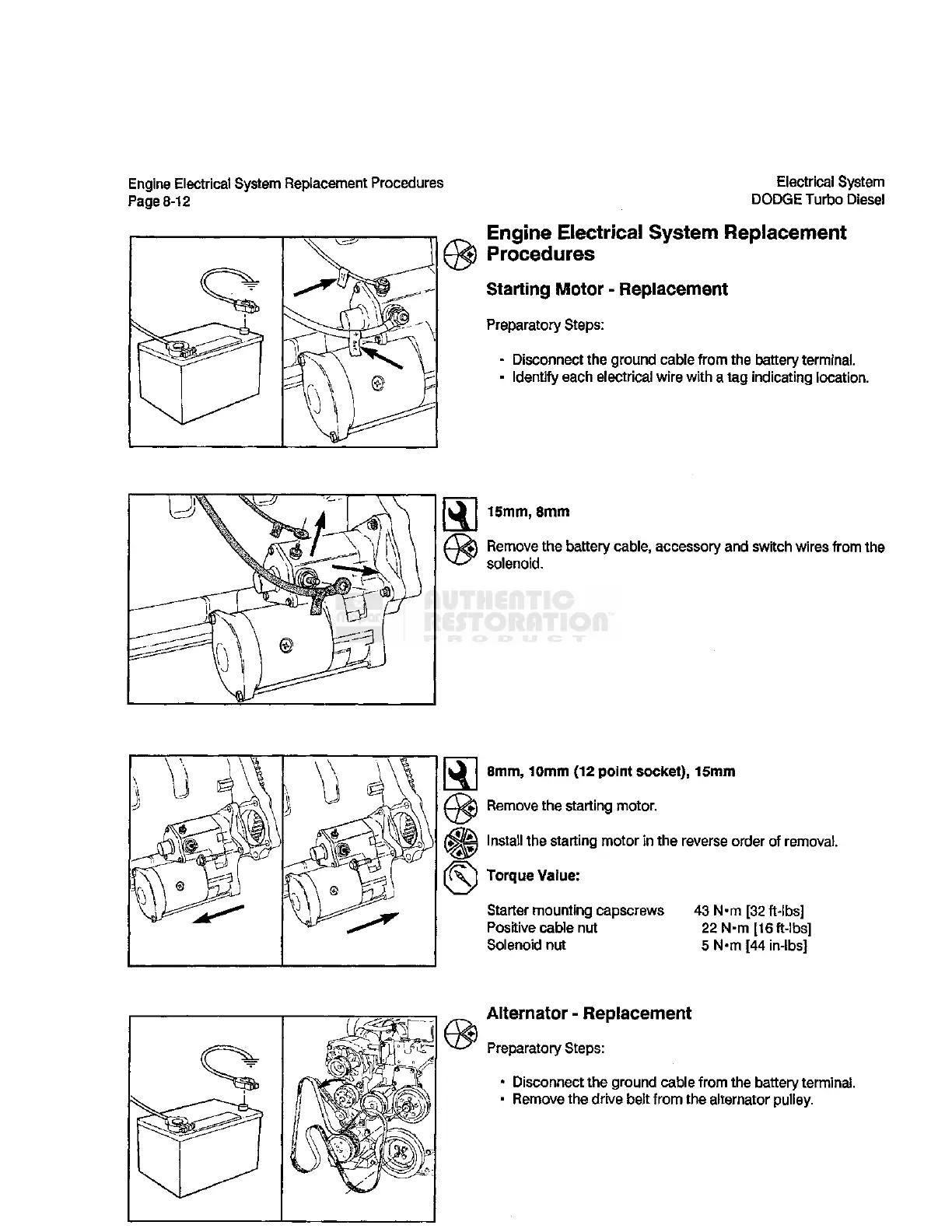

Page 8-12
Electrical System
DODGETurbo Diesel
Engine Electrical System Replacement
Procedures
Starting Motor - Replacement
Preparatory Steps:
- Disconnect the ground cable from the battery terminal.
- Identify each electrical wire with a tag indicating location.
8mm, 10mm (12 point socket), 15mm
Remove the starting motor.
Install the starting motor in the reverse order of removal.
Torque Value:
Starter mounting capscrews 43 N-m [32 ft-lbs]
Positive cable nut 22 N-m [16 ft-lbs]
Solenoid nut 5 N-m [44 in-lbs]
Alternator - Replacement
Preparatory Steps:
• Disconnect the ground cable from the battery terminal.
• Remove the drive belt from the alternator pulley.
