Electrical System Description/Operation Electrical System
Page 8-2 DODGE Turbo Diesel
Electrical
System
Description/Operation
For purposes of this manual, the electrical system consists of the starting motor, alternator, heaters and control
devices.
The injection pump uses an electrical fuel shut off
valve.
The engine has water temperature and oil pressure sensors
connected to gauges on the instrument panel. The engine is also fitted with a block heater.

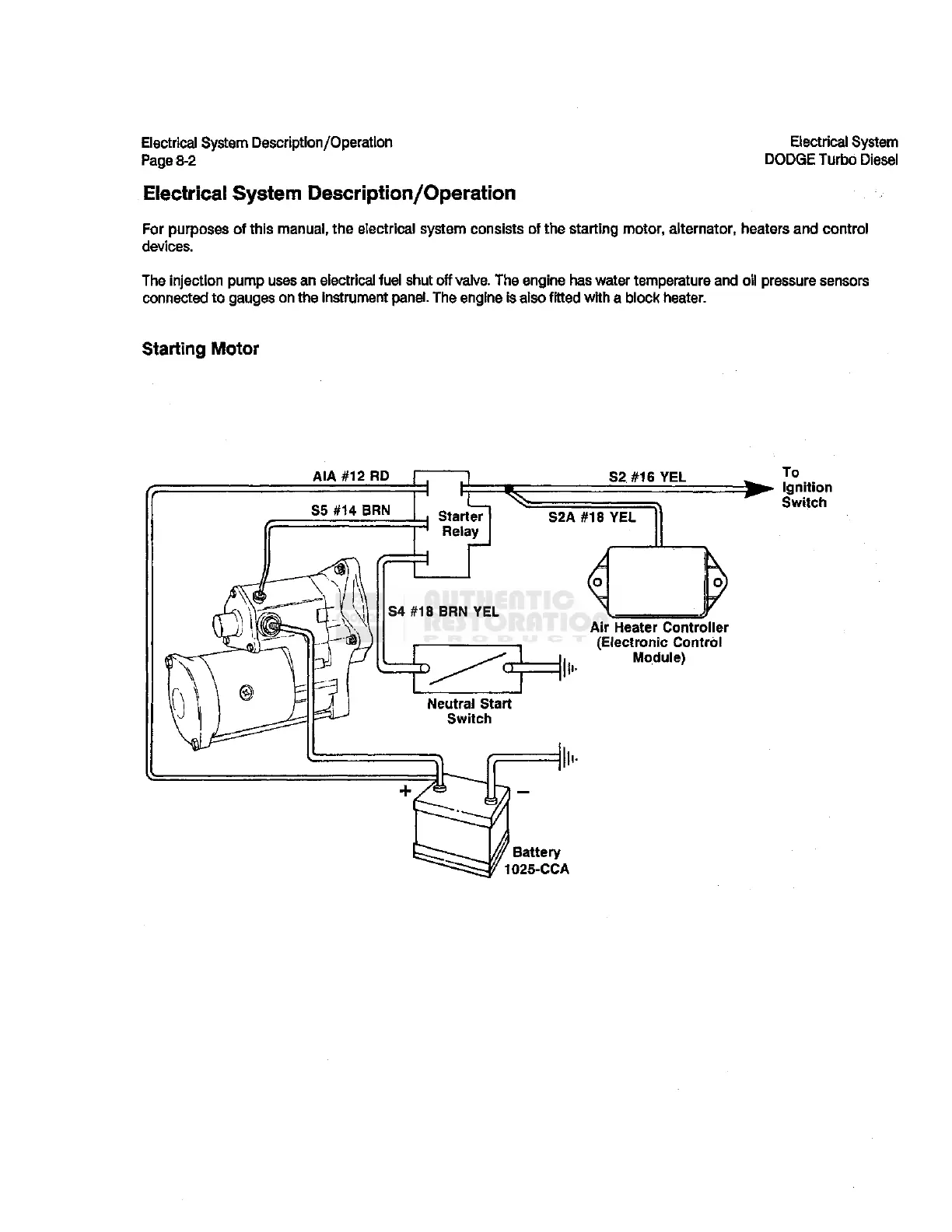

Starting
Motor
