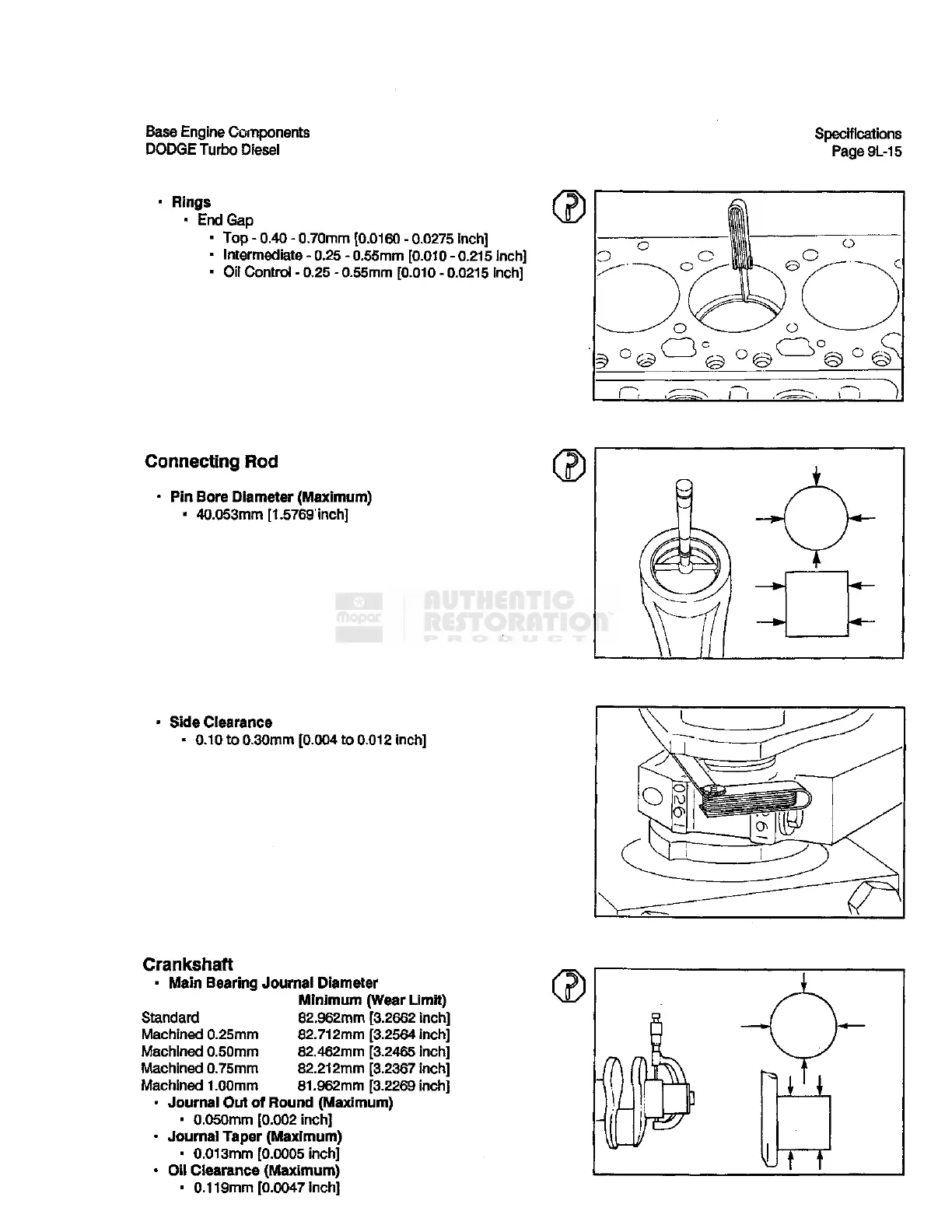

Dodge D350 1990 - Connecting Rod Data; Crankshaft Data

Base Engine Components
DODGE Turbo Diesel
Specifications
Page 9L-15
Rings
• End Gap
• Top - 0.40 - 0.70mm [0.0160 - 0.0275 inch]
• Intermediate - 0.25 - 0.55mm [0.010 - 0.215 inch]
• Oil Control - 0.25 - 0.55mm [0.010 - 0.0215 inch]
o 11
^\ °
^ O^- .
o
©
Connecting Rod
- Pin Bore Diameter (Maximum)
• 40.053mm [1.5769* inch]
• Side Clearance
• 0.10 to 0.30mm [0.004 to 0.012 inch]
Crankshaft
- Main Bearing Journal Diameter
Minimum (Wear Limit)
Standard
Machined 0.25mm
Machined 0.50mm
Machined 0.75mm
Machined 1.00mm
82.962mm [3.2662 inch]
82.712mm [3.2564 inch]
82.462mm [3.2465 inch]
82.212mm [3.2367 inch]
81.962mm [3.2269 inch]
Journal Out of Round (Maximum)
• 0.050mm [0.002 inch]
Journal Taper (Maximum)
- 0.013mm [0.0005 inch]
Oil Clearance (Maximum)
- 0.119mm [0.0047 inch]
