Dodge D350 1990 - Shaft Seal - Replacement

Shaft Seal - Replacement

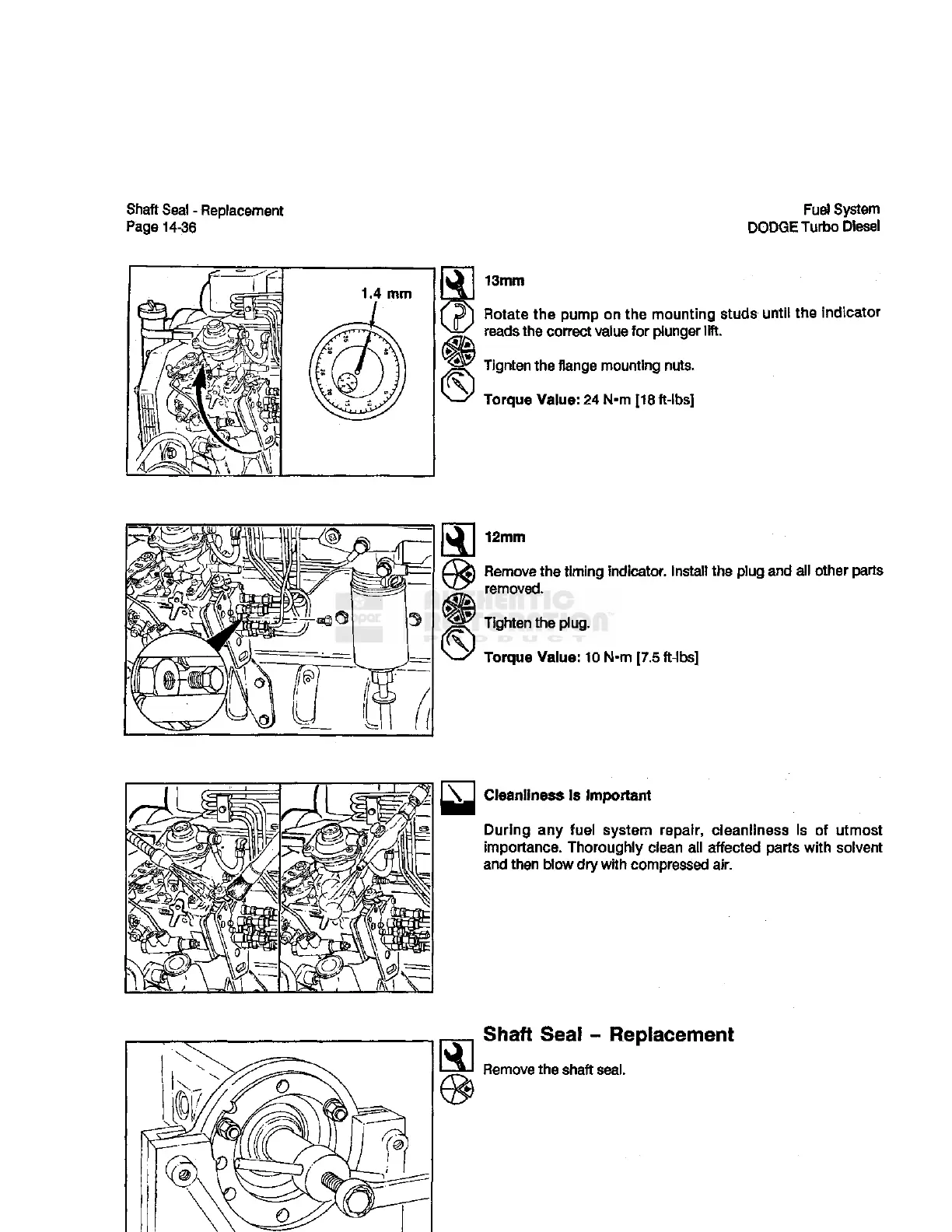

Page 14-36
Fuel System
DODGE Turbo Diesel
13mm
Rotate the pump on the mounting studs until the indicator
reads the correct value for plunger lift.
Tignten the flange mounting nuts.
Torque Value: 24 N-m [18 ft-lbs]
12mm
>j Remove the timing indicator, install the plug and all other parts
removed.
Tighten the plug.
Torque Value: 10 N-m [7.5 ft-lbs]
\J Cleanliness Is Important
During any fuel system repair, cleanliness Is of utmost
importance. Thoroughly clean all affected parts with solvent
and then blow dry with compressed air.
Shaft Seal - Replacement
Remove the shaft seal.
