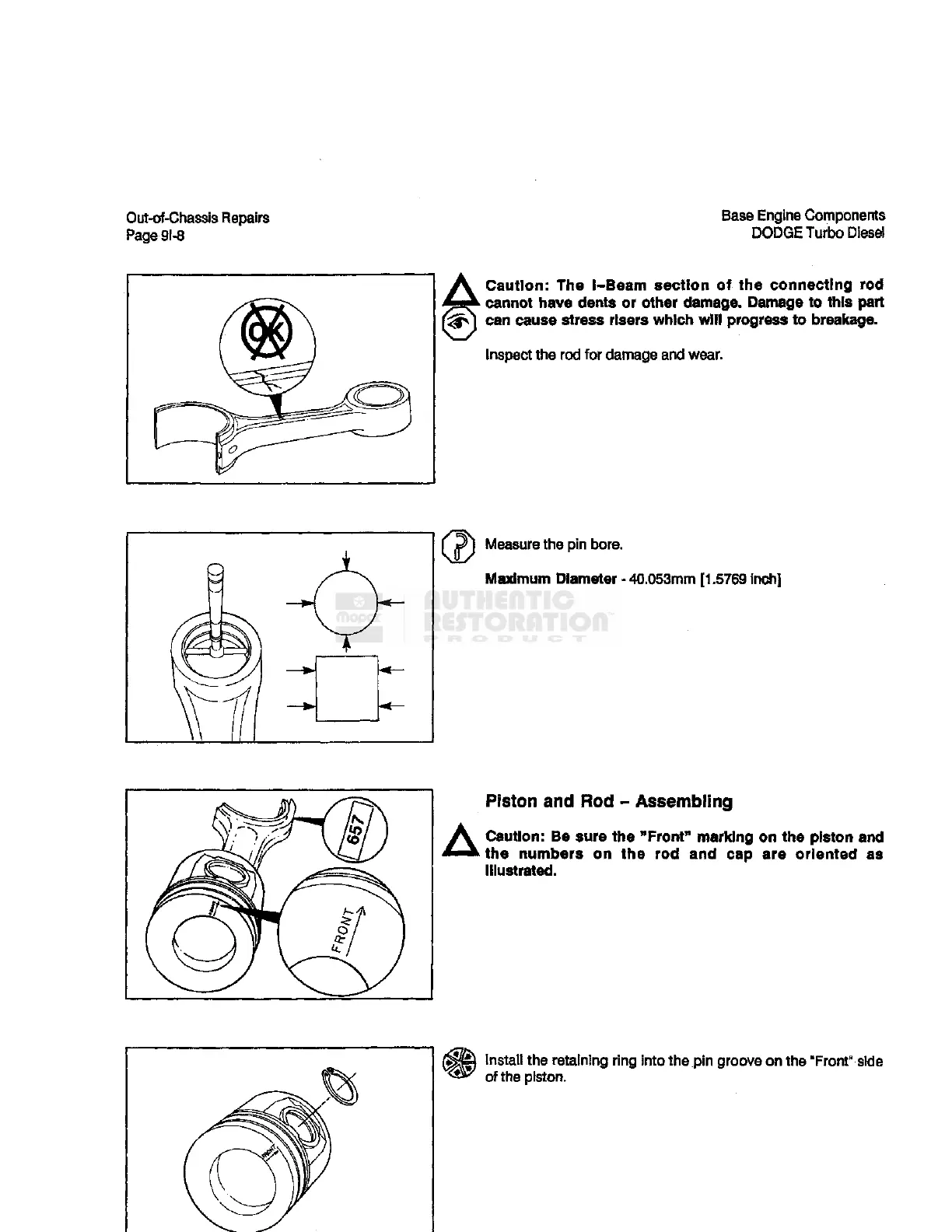

Dodge D350 1990 - Piston and Rod - Assembling

Out-of-Chassis Repairs
Page9l-8
Base Engine Components
DODGE Turbo Diesel
Caution; The l-Beam section of the oonnecting rod
cannot have dents or other damage. Damage to this part
can cause stress risers which will progress to breakage.
Inspect the rod for damage and wear,
Measure the pin bore.
Maximum Diameter - 40.053mm [1.5769 inch]
Piston and Rod - Assembling
Caution: Be sure the "Front" marking on the piston and
the numbers on the rod and cap are oriented as
Illustrated.
install the retaining ring into the pin groove on the "Front"-side
of the piston.
