Electrical
System
DODGE
Turbo Diesel
Engine
Block
Water

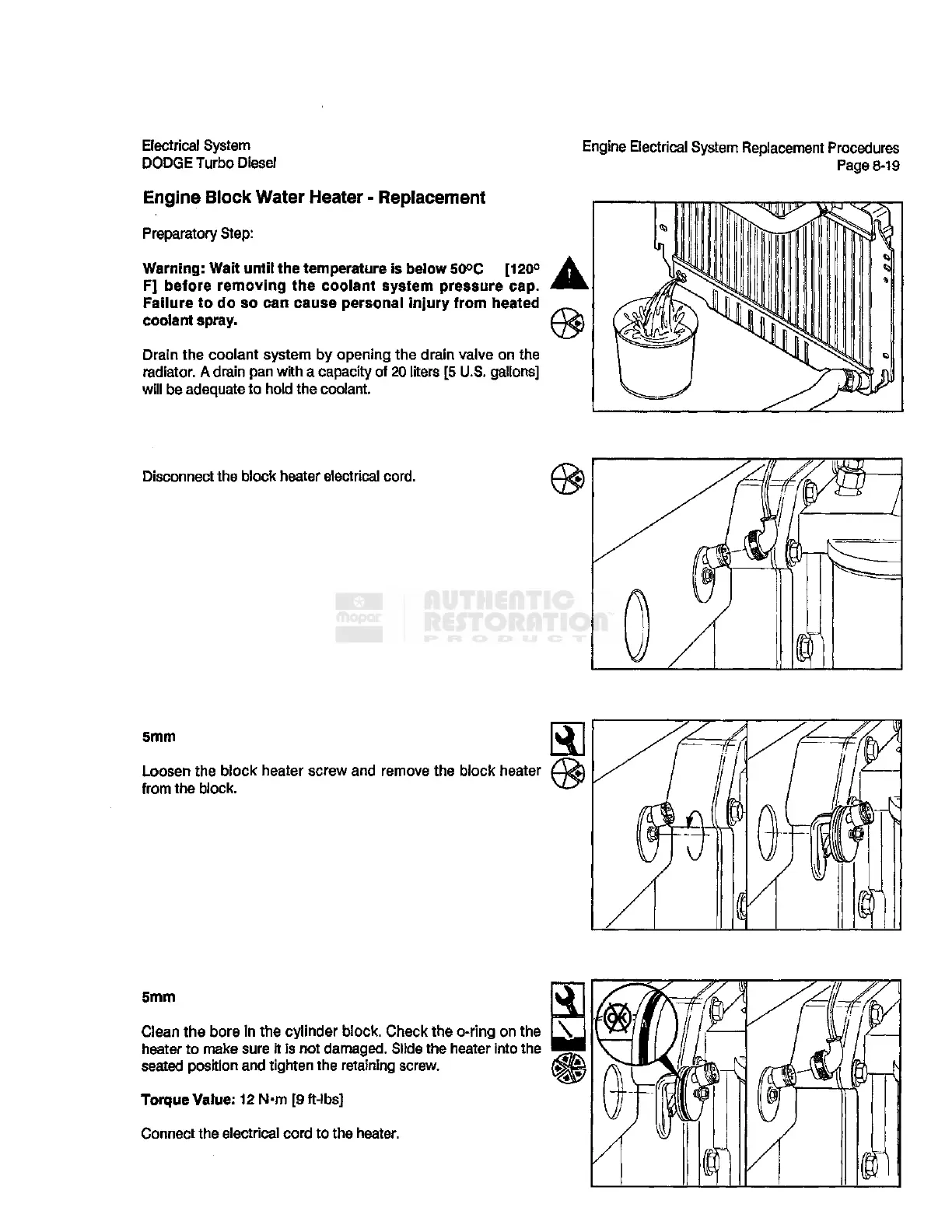

Heater - Replacement
Preparatory Step:
Warning;
Wait
until
the temperature is below 50°C [120°
F]
before removing the coolant system pressure cap.
Failure to do so can
cause
personal injury
from
heated
coolant spray.
Drain the coolant system by opening the drain valve on the
radiator. A drain pan
with
a capacity of 20 liters [5 U.S. gallons]
will
be adequate to hold the coolant.
Engine
Electrical
System Replacement Procedures
Page 8-19
Disconnect
the block heater electrical cord.
5mm
Loosen
the block heater screw and remove the block heater
from
the block.
5mm
Clean
the bore in the cylinder block. Check the o-ring on the
heater to make sure it is not damaged. Slide the heater
into
the
seated position and
tighten
the retaining screw.
Torque Value: 12 N-m [9 ft-lbs]
Connect
the electrical cord to the heater.
To Next Page
