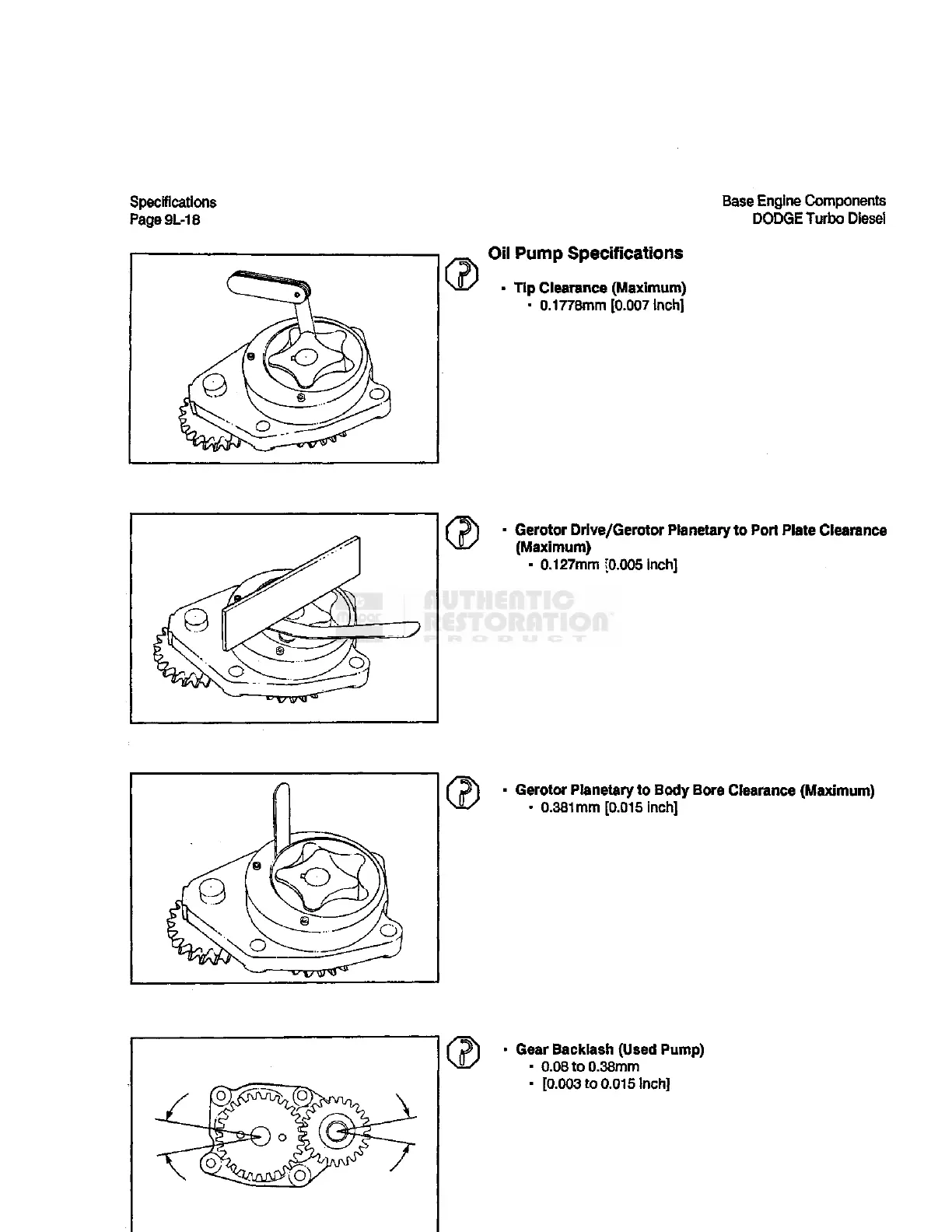

Specifications

Page 9L-18

Base

Engine Components

DODGE

Turbo Diesel

- Gerotor Drive/Gerotor Planetary to Port Plate Clearance

(Maximum)

•

0.127mm

[0.005

inch]

- Gerotor Planetary to Body Bore Clearance

(Maximum)

•

0.381mm

[0.015

inch]

• Gear

Backlash

(Used Pump)

• 0.08 to

0.38mm

•

[0.003

to 0.015 inch]
