Dodge D350 1990 - Assembly of the Turbocharger

Exhaust System and Intake Manifold
DODGE Turbo Diesel

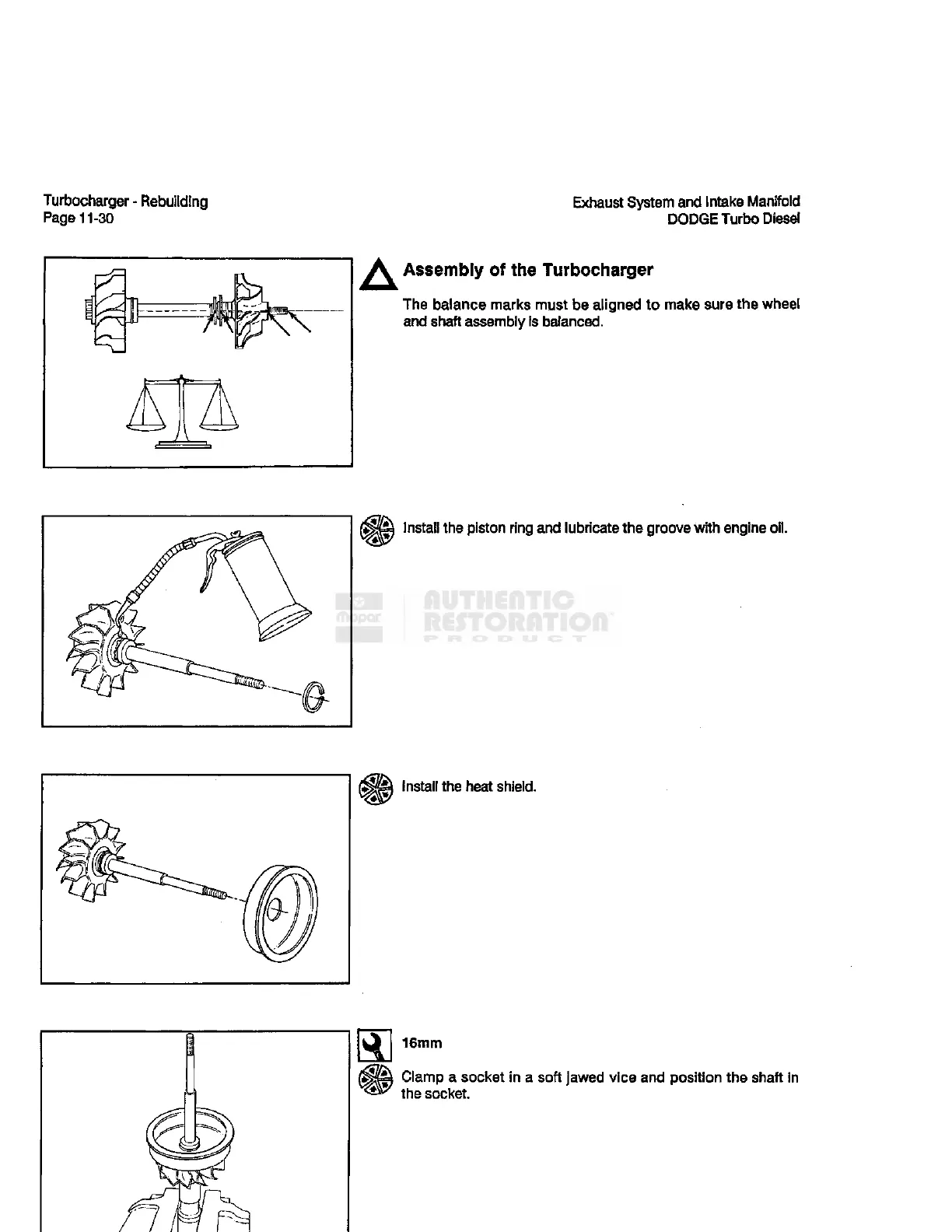

Assembly of the Turbocharger
The balance marks must be aligned to make sure the wheel
and shaft assembly is balanced.
Install the piston ring and lubricate the groove with engine oil.
Install the heat shield.
16mm
Clamp a socket in a soft jawed vice and position the shaft in
the socket.
