Automatic
Transmission
Page
21
-4

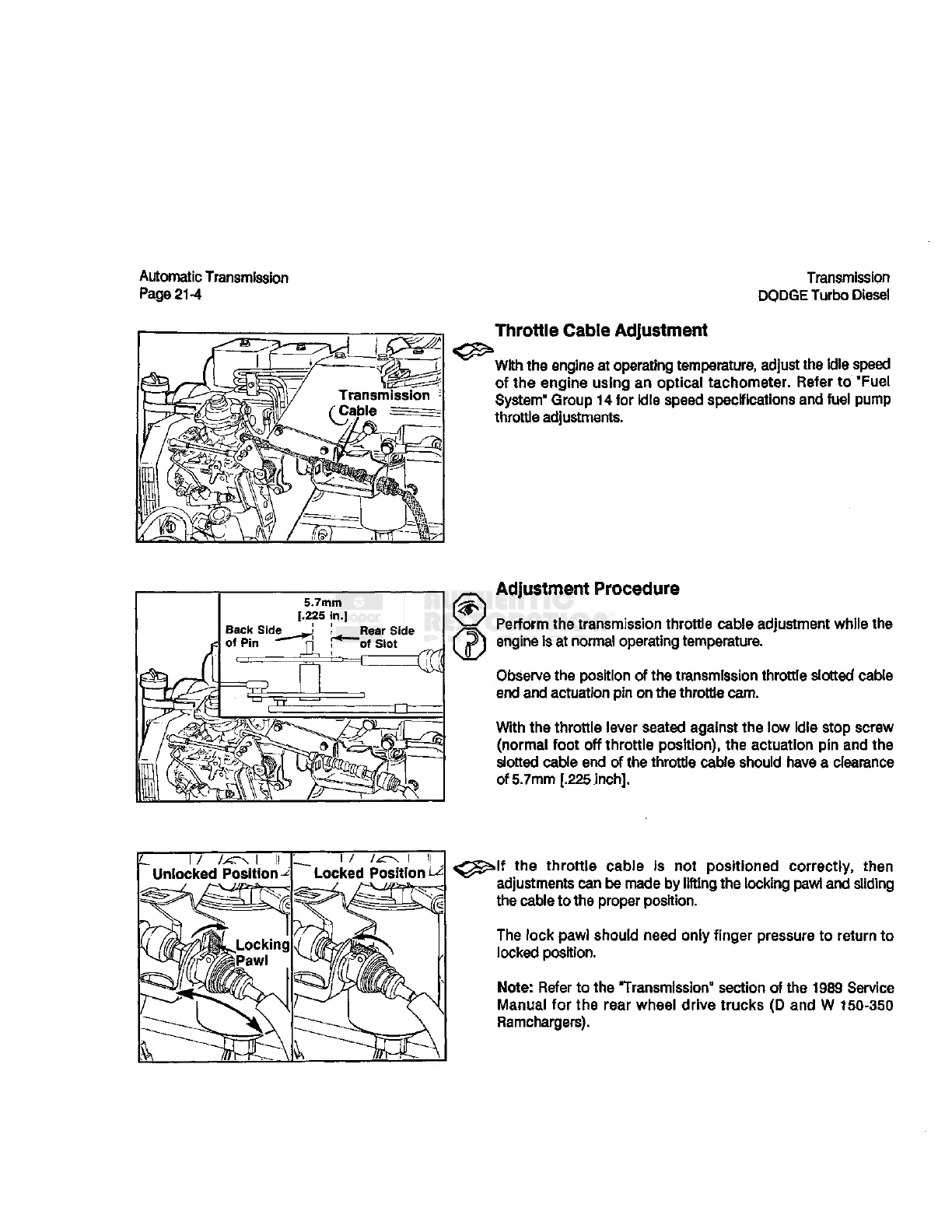

Transmission
DODGE
Turbo Diesel
Throttle Cable Adjustment
With
the engine at operating temperature, adjust the idle speed
of the engine using an optical tachometer. Refer to "Fuel
System"
Group 14 for idle speed specifications and fuel pump
throttle
adjustments.
Adjustment Procedure
Perform the transmission
throttle
cable adjustment while the
engine
is
at normal operating temperature.
Observe
the position of the transmission
throttle
slotted cable
end and actuation pin on the
throttle
cam.
With
the
throttle
lever seated against the low idle stop screw
(normal
foot
off
throttle
position), the actuation pin and the
slotted cable end of the
throttle
cable should have a clearance
of
5.7mm
[.225 inch].
U
I / /XTN I If
Unlocked Position
! I / /*r\ I li
Locked
Position ^
(^/^^^^^Locking
^^s^r^^^awl
^^>lf the
throttle
cable is not positioned correctly, then
adjustments can be made by
lifting
the locking pawl and sliding
the cable to the proper position.
The lock pawl should need only finger pressure to return to
locked position.
Note:
Refer to the
,
Transmlssion
,,
section of the 1989 Service
Manual
for the rear wheel drive trucks (D and W
150-350
Ramchargers).
