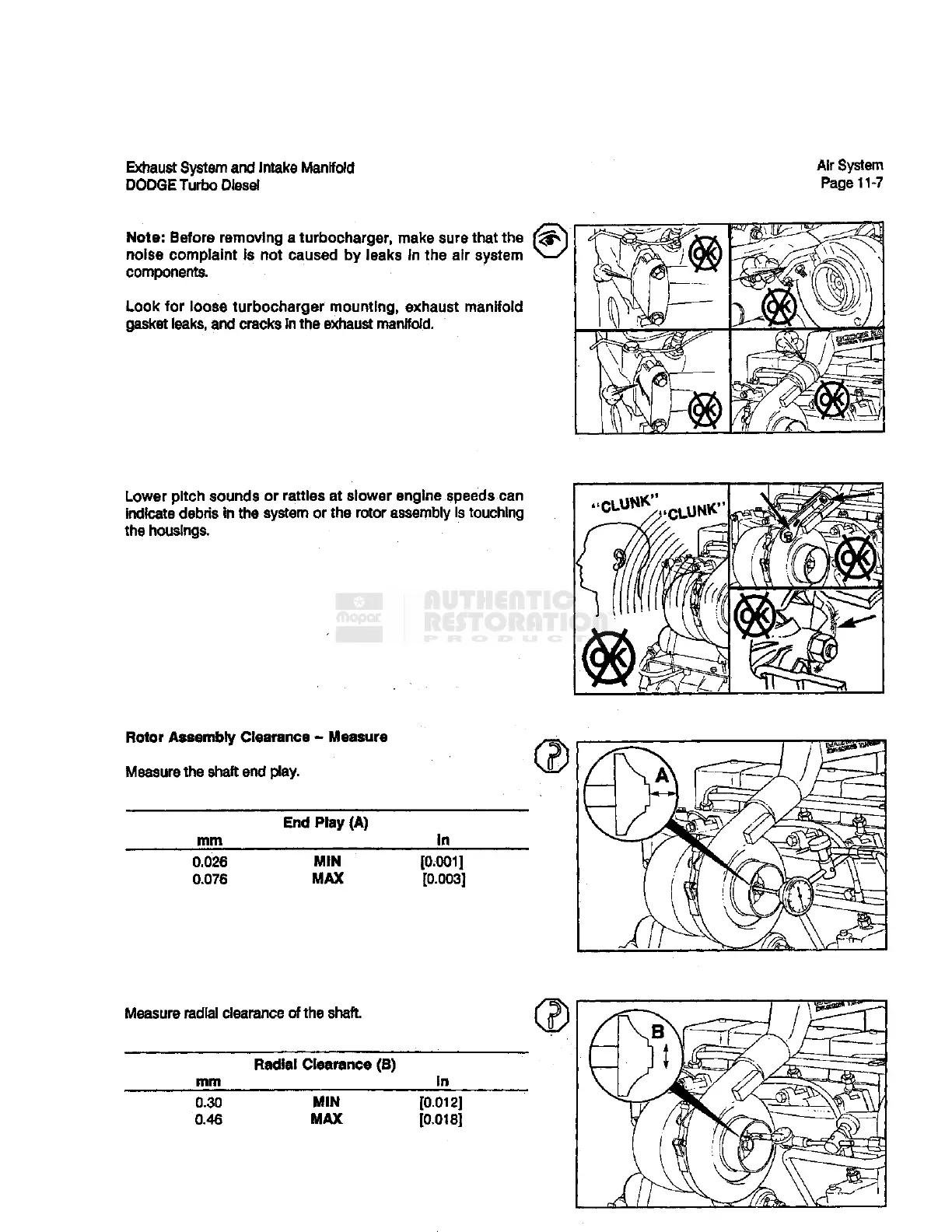

Exhaust System and Intake Manifold
DODGE Turbo Diesel
Air System
Page 11-7
Note: Before removing a turbocharger, make sure that the p^M
noise complaint is not caused by leaks in the air system
components.
Look for loose turbocharger mounting, exhaust manifold
gasket leaks, and cracks in the exhaust manifold.
D
1
®
^^^^^^^
Rotor Assembly Clearance - Measure
Measure the shaft end play.
End Play (A)
mm
0.026
0.076
MIN
MAX
in
[0.001]
[0.003]
Measure radial clearance of the shaft.
0.30
0.46
Radial Clearance (B)
MIN
MAX
In
[0.012]
[0.018]
