Dodge D350 1990 - Piston Ring Gap - Check

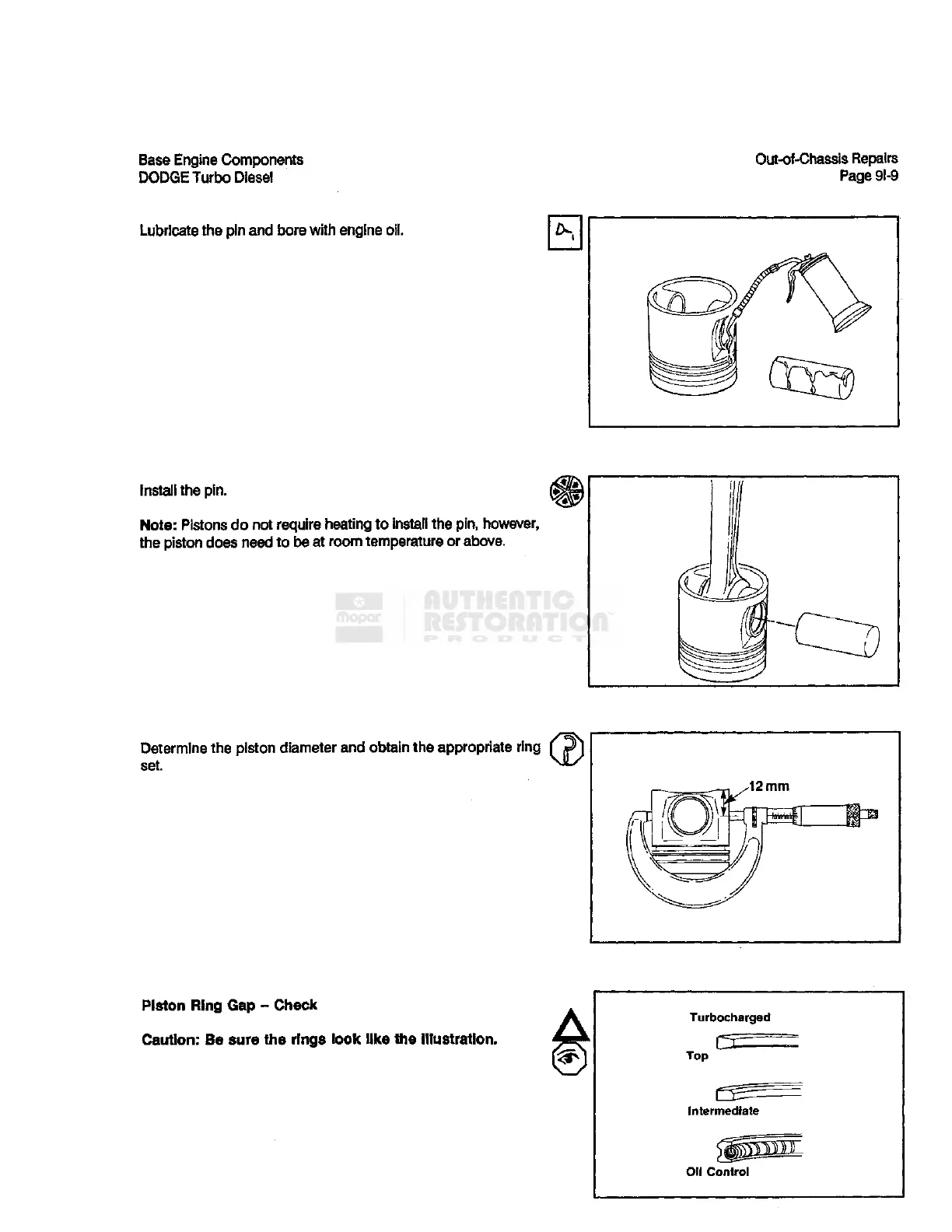

Base Engine Components
DODGE Turbo Diesei
Out-of-Chassis Repairs
Page 91-9
Lubricate the pin and bore with engine oil.
Install the pin.
Note: Pistons do not require heating to install the pin, however,
the piston does need to be at room temperature or above.
Determine the piston diameter and obtain the appropriate ring f 5n
set.
SJL/
Piston Ring Gap - Check
Caution: Be sure the rings look like the Illustration.
Turbocharged
Top
Intermediate
Oil Control
