Base
Engine Components
DODGE
Turbo Diesel
Engine
Lubricating System

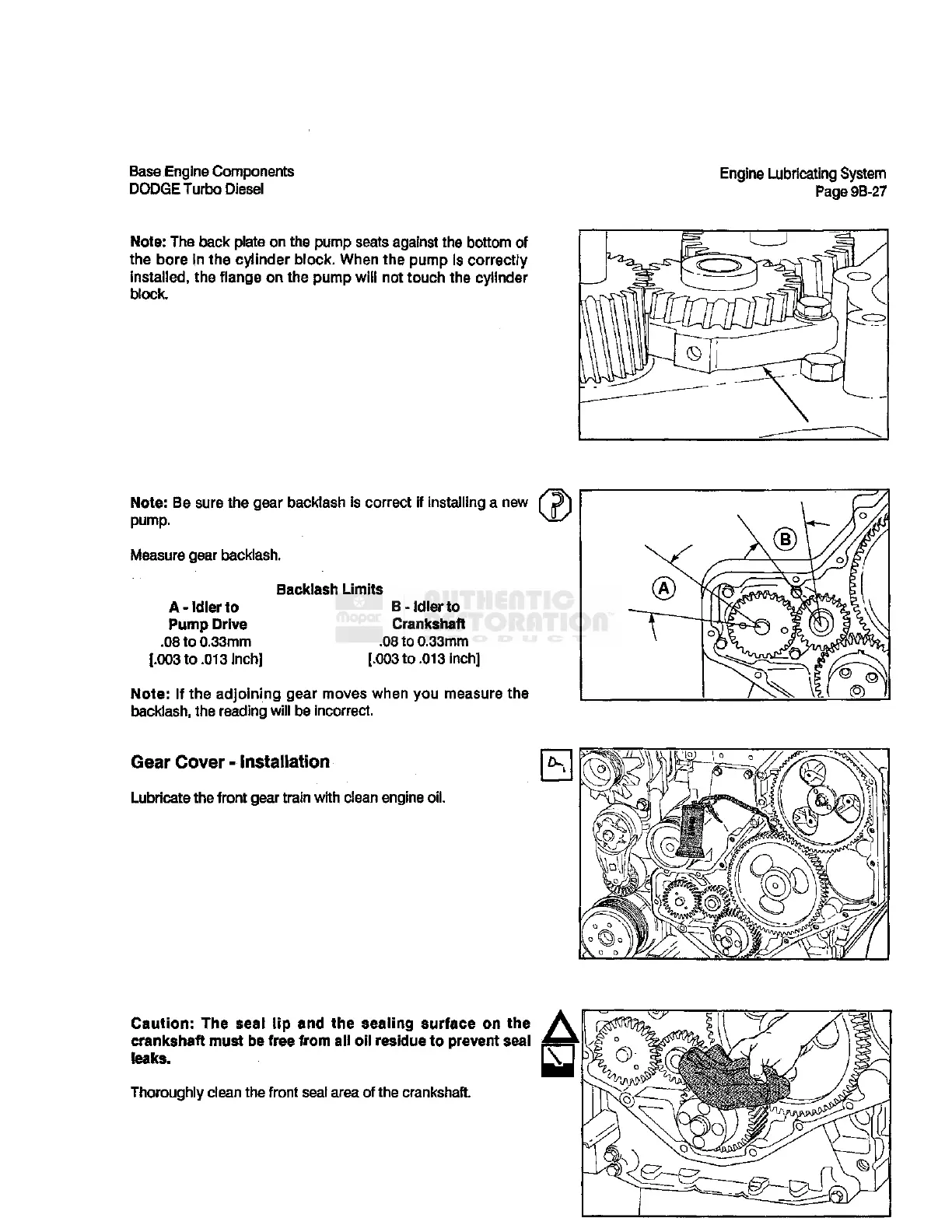

Page 9B-27
Note:
The back plate on the pump
seats
against the
bottom
of
the bore in the cylinder block. When the pump Is correctly
installed, the flange on the pump
will
not touch the cylinder
block.
Note:
Be sure the gear backlash is correct if installing a new [Sn
pump.
Measure gear
backlash.
A-Idler to
Pump Drive
.08 to
0.33mm
{.003 to .013 Inch]
Backlash
Limits
B-Idler to
Crankshaft
.08 to
0.33mm
[.003 to .013 inch]
Note:
If the adjoining gear moves when you measure the
backlash,
the reading
will
be incorrect.
Gear
Cover - Installation
Lubricate the
front
gear
train
with
clean engine oil.
Caution: The seal lip and the sealing surface on the
crankshaft must be free
from
all oil residue to prevent seal
jLJf
leaks.
Thoroughly clean the
front
seal
area of the crankshaft.
