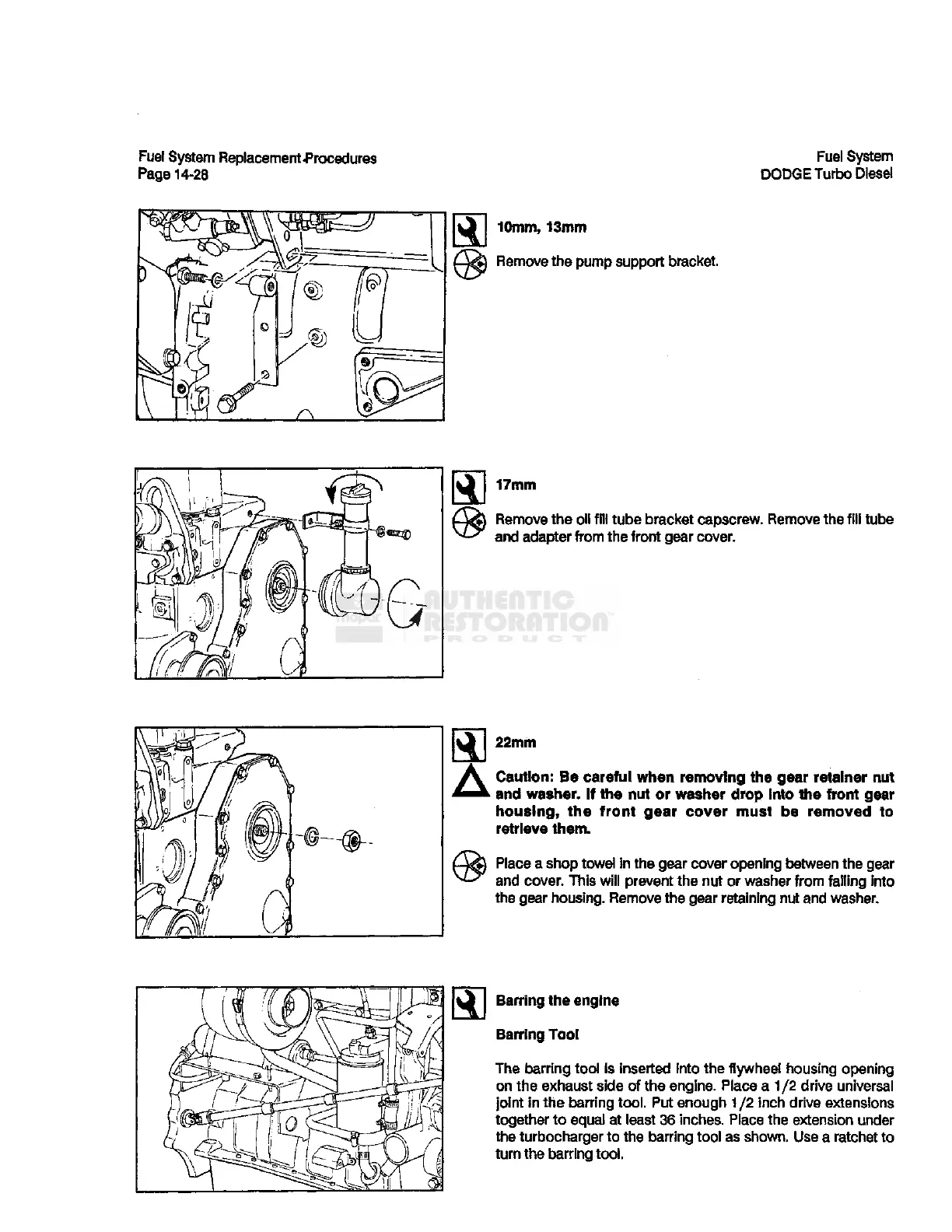

Fuel
System
Replacement
Procedures
Page
14-28
Fuel
System
DODGE
Turbo Diesel
10mm, 13mm
:») Remove the pump support bracket.
17mm
:») Remove the oil
fill
tube bracket
capscrew.
Remove the
fill
tube
and adapter
from
the
front
gear cover.
22mm
Caution:
Be careful when removing the gear retainer nut
and washer. If the nut or washer drop
Into
the
front
gear
housing,
the
front
gear cover must be removed to
retrieve them.
Place
a
shop
towel In the gear cover opening between the gear
and cover. This will prevent the nut or washer
from
falling into
the gear
housing.
Remove the gear retaining nut and washer.
Barring the engine
Barring Tool
The barring
tool
is inserted into the flywheel housing opening
on the exhaust side of the engine. Place a 1/2 drive universal
joint in the barring tool. Put enough 1/2 inch drive extensions
together to equal at least 36
inches.
Place the extension under
the turbocharger to the barring
tool
as
shown.
Use a ratchet to
turn the barring tool.
